Features:

• Optical Format:1/4”, Effective Focal Length:1.6mm
• 35mm equivalent focal length: 18mm
• FOV on 1/4” sensor(D/H/V): 145°/118°/92°
• HFOV on 1/4” RPi Camera: 118°, F/NO: 2.0
• Mount:M12, Length Holder Height: 7mm
• Size: 14mm x 10mm, Weight: 2g

Package Includes:

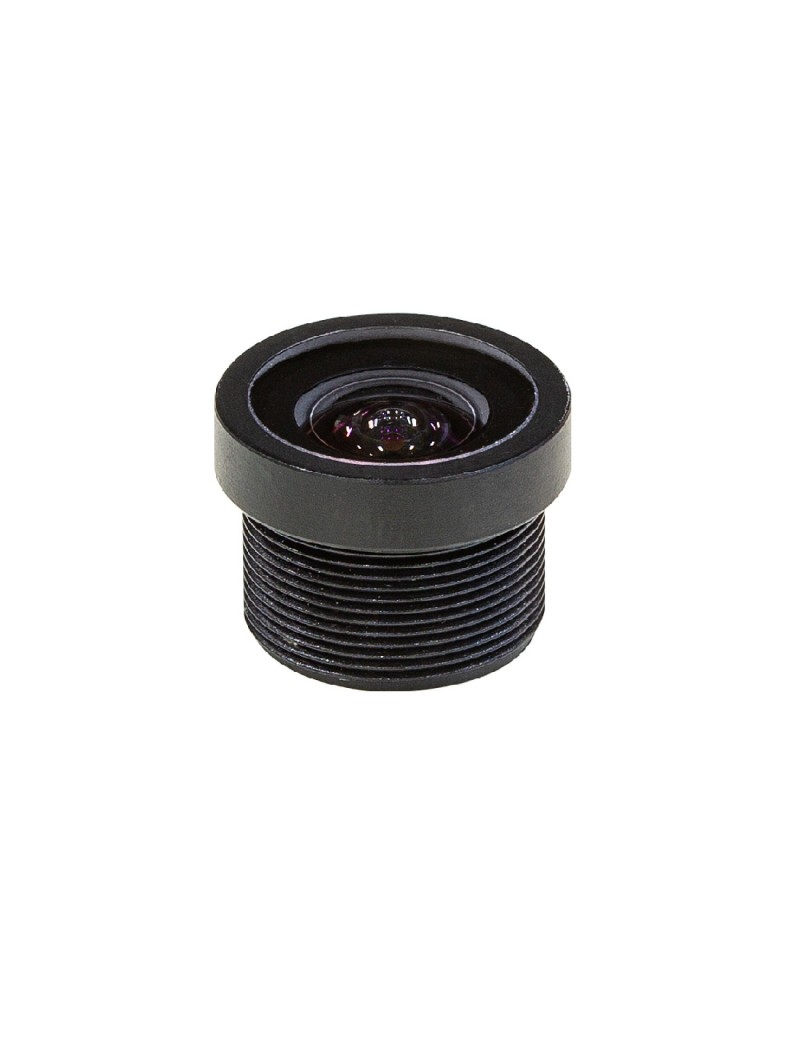

• 1pcs Arducam 1/4" M12 Mount 1.6mm Focal Length Lens M40160M12

Note:

• Lens holder NOT included, you could find holder options following.
• Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.

Lens Holder Options:

• M12 Lens Holder Kit (SKU: LHK01)
• Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
• Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
• Height: 6.0mm; Hole Spacing: 18mm; Plastic (SKU: LH001)

More M12 Lens Options:

• M12 Lens Kit (SKU: LK001)
• Low Distortion M12 Lens Kit (SKU: LK002)
