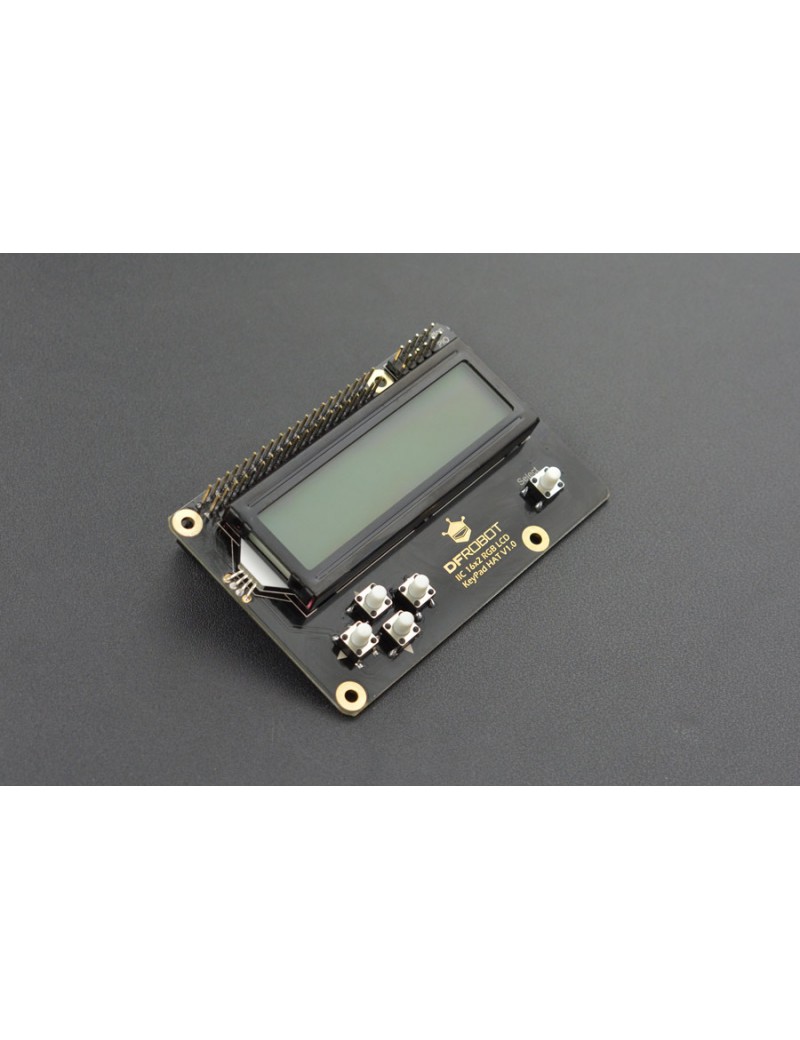

IIC 16x2 RGB LCD KeyPad HAT V1.0

13,17 €
Quantità

INTRODUCTION

This is a 2*16 character RGB LCD+Keypad plate for Raspberry Pi. We made improvements in the wiring connection based on the previous LCD display as well as left out the contrast adjustment function, so the product can be pretty easy to use, and users can spend time focusing on the most important projects.
The RGB LCD1602 display is integrated on the shield. It leads out Raspberry Pi’s GPIO ports for connecting more device. Besides, the shield adopts IIC interface, so you can realize the 16 million color combination of the LCD, backlight brightness adjustment, display control etc. To convenient your use on Raspberry Pi, there are 5 push-buttons integrated on the board to help you to switch display and configure functions, then you can easily build up your data monitor and small operating platform.
IIC 16x2 RGB LCD Keypad HAT has two display effects: colorful background or colorful font.
                                                                          Dimension

SPECIFICATION

  • Supply Voltage: 5V
  • Logic Voltage: 3.3V
  • Operating Current: <60mA
  • 16*2 LCD Display
  • Communication: IIC
  • Font: 5*8
  • Backlight: RGB adjustable backlight (16 million)
  • Operating Temperature: -20 ~+70℃
  • Storage Temperature: -30 ~ +80℃
  • Dimension: 85.0mm*56.0mm*26.8mm/3.35*2.20*1.06”

DOCUMENTS

SHIPPING LIST

IIC 16x2 RGB LCD KeyPad HAT V1.0 x1
DF-DFR0514
