Introduction

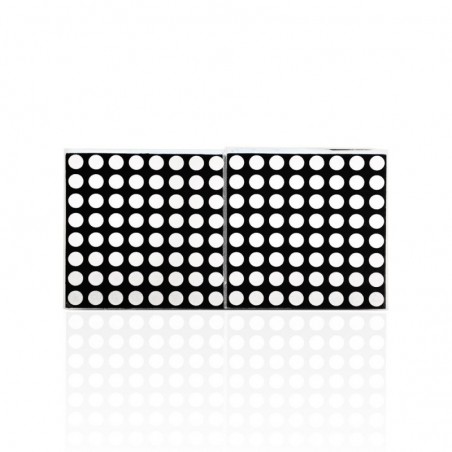

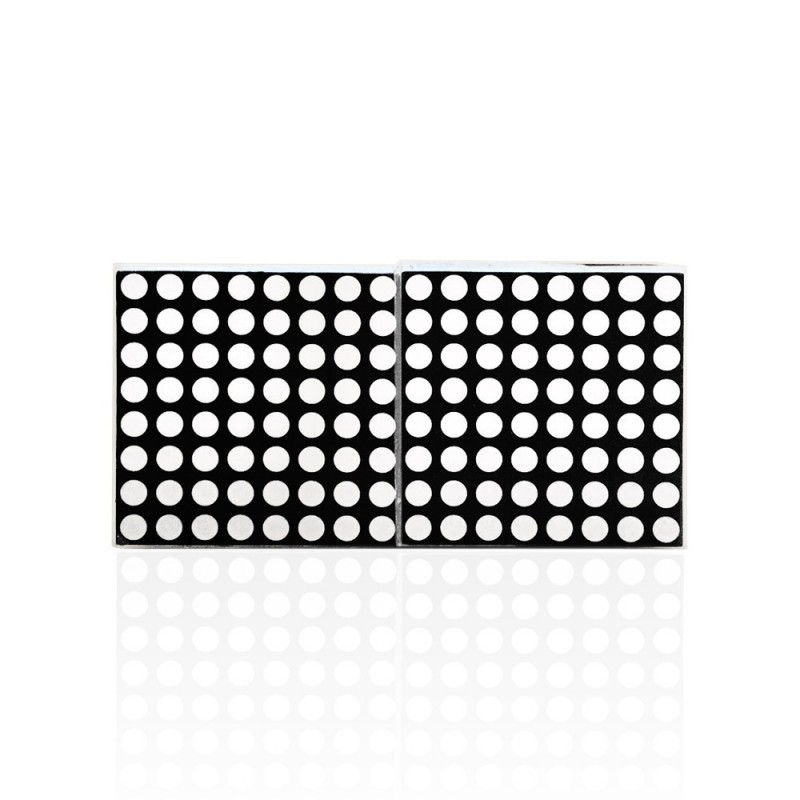

We are know that the I/O Pin of Raspberry Pi is limited. So Raspberry come with LED dot matrix screen, it would be more trouble. But use special LED constant current control chip, basically only takes Raspberry Pi SPI interface (3 IO + 2 enabled) you can control 64 LED lights. LED dot matrix drivers became possible! This product is a  dot-matrix-led-display module, which compatible with any version of Raspberry Pi. We will provide installation package, source code and quickstart guide PDF. We will teach you step by step, so don’t worry!

Specification

Support all versions of Raspberry Pi

Driver Chip : MAX7219

Dot Matrix Type: 8x8 common cathode red dot matrix

Matrix Size?64.3*35.0*26.5mm

Download Attachment

	Download the Installation Package(5.75 MB )	Download
	Download the All Source Code of Project (3.6 KB )	Download
	keyestudio RPI Dot Matrix PDF(508.45 KB )	Download
