Introduction

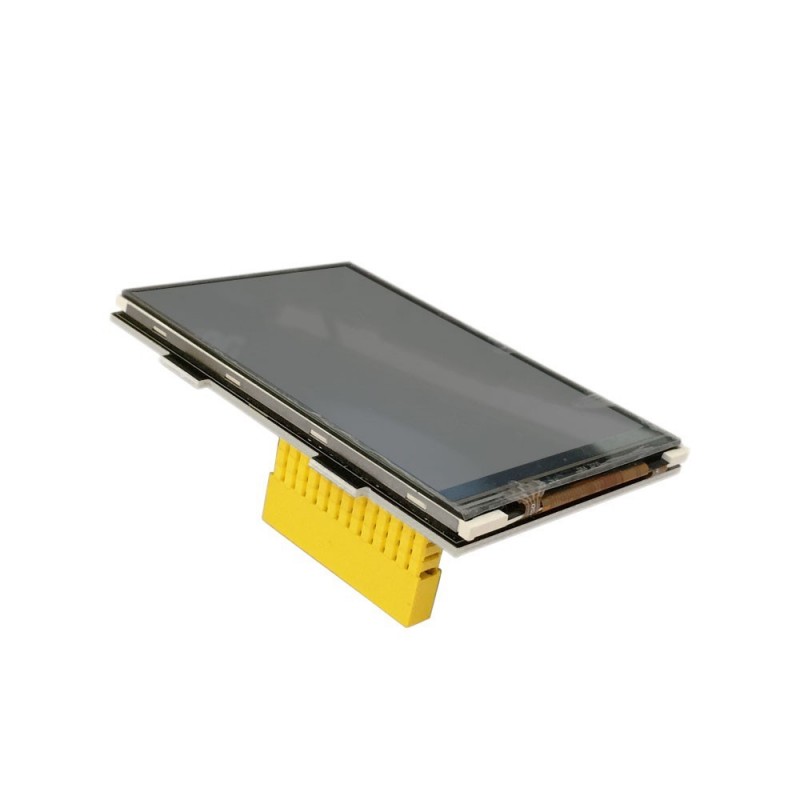

It is the cutest, little display for the Raspberry Pi. It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay. It supports any revision of Raspberry Pi (directly-pluggable).

Description

Item Contents Unit

Modules Structure 3.5 inch TFT LCD+IC+FPC+BL

Mcu Interface 16 BITS 80 parallel interface

LCD Type TFT Negative Transmissive

Driver Type a-Si TFT Active matrix

Pixel Arrangement RGB Stripes Arrangement

Active Area 48.96*73.44  mm

Glass Area 52.96 ×81.44                      mm

Resolution 480*320 (Pixel)                  Dots

Viewing Direction 9 o'clock

Control IC ILI9481

Backlight 6-chip white LEDS Parallel

Download Attachment

	Download the Installation Package(5.51 MB )	Download
	Download the All Source Code of Project (48.49 KB )	Download
	keyestudio RPI TFT 3.5 LCD Touchscreen Shield PDF(409.54 KB )	Download
