Introduction

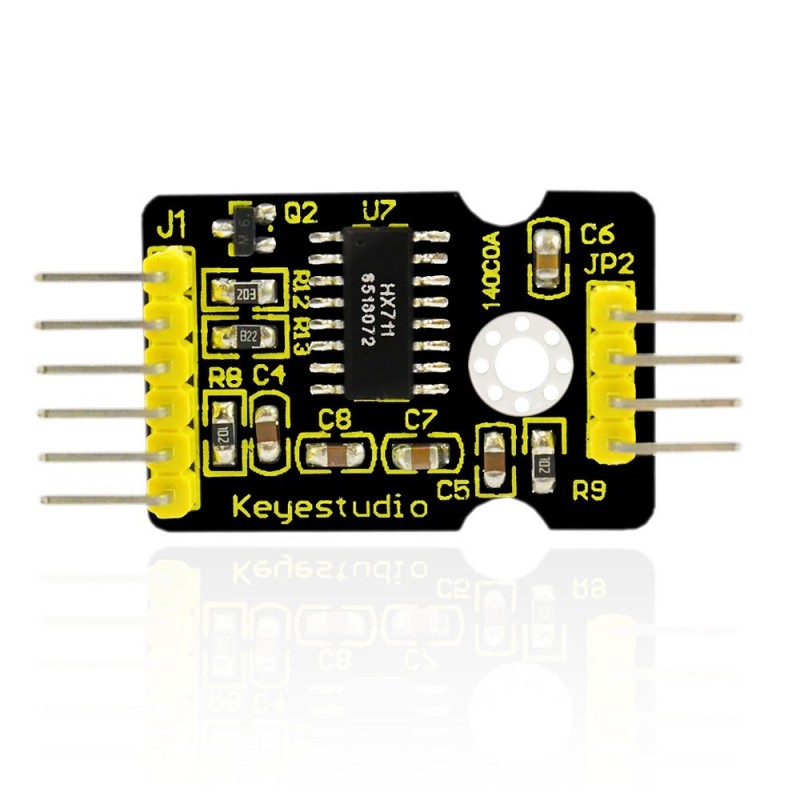

keyestudio HX711 module adopts hx711 24-bit high precision A/D converter chip, a chip specially designed for high precision electronic scale. It has two analog input channel. Internal is integrated with 128 times programmable gain amplifier. Input circuit can be configured to bridge type (such as pressure, weighing) sensor mode. It is an ideal, high precision, low cost, front-end sampling module.

Specification

1. Adopts HX711 24-bit high precision A/D converter chip
2. Working voltage: DC 5V
3. High precision, low cost

Download Attachment

keyestudio HX711 Load Cell Pressure Sensor Module PDF(128.19 KB )
