Product Description

WIKI: http://wiki.keyestudio.com/index.php/Ks0003_keyestudio_Arotoshield_for_Arduino_with_Mini_Breadboard

Video: http://www.keyestudio.com/wp/2016/05/ks0003-keyestudio-uno-protoshield-with-mini-breadboard/

Introduction

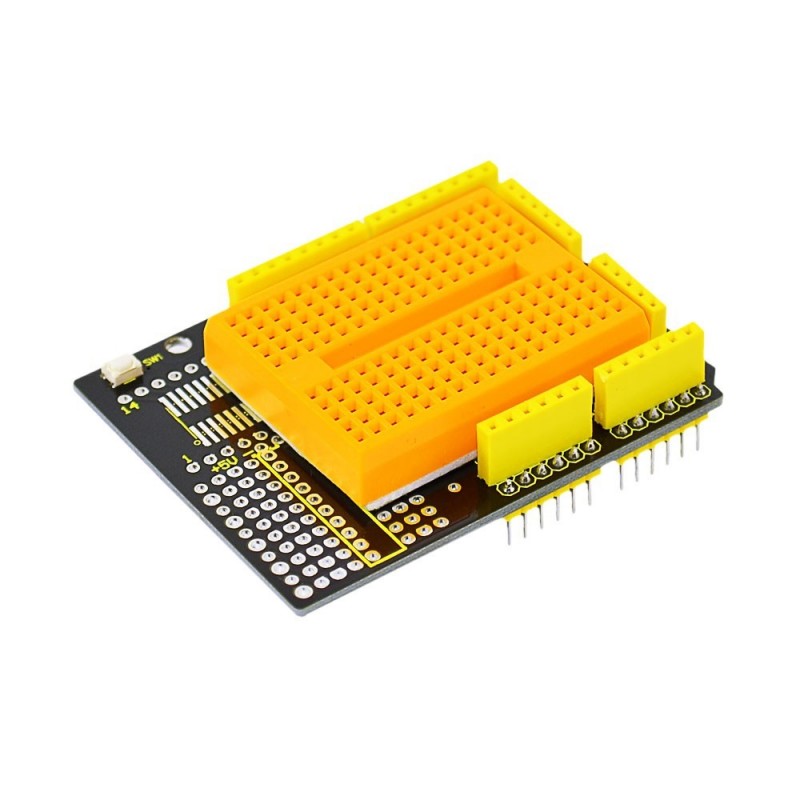

Keyestudio Protoshield for Arduino is used to build circuit prototype. you can weld elements on the board directly or connect circuits with the mini breadboard. The breadboard is connected to the circuit board by a double-sided adhesive.

This protoshield is set with two LED and two button circuits which can be used directly and all the pins and power supply has been drawn. It is very suitable for working with Arduino to build a circuit prototype

Download Attachment

keyestudio protoshield for Arduino with mini breadboard PDF(147.68 KB )

Download
