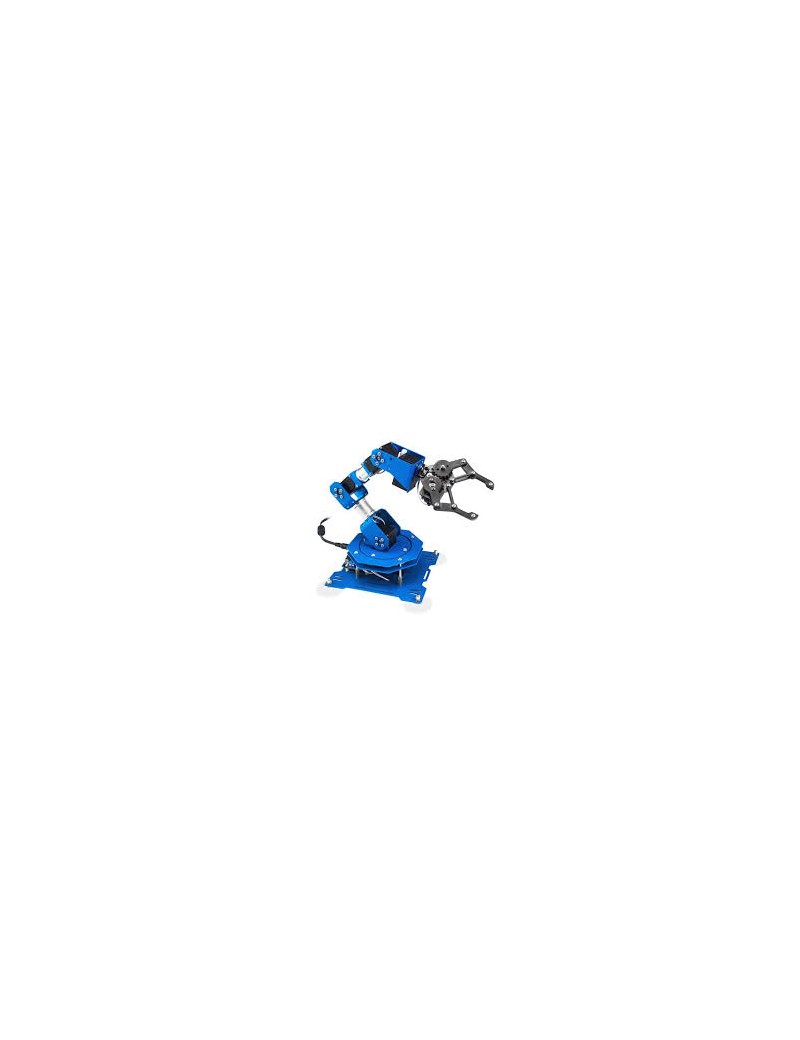

xArm 1S Bus Servo Robotic

199,00 €
Quantità

xArm 1S is a desktop robotic arm which can perform various robotic gripping and sorting functions. Ideal for project construction, robotic automation display and bionic robot education. It is equipped with powerful and robust intelligent bus servos featuring position and voltage feedback functions.



Feature

  • Intelligent bus servos with position feedback, voltage feedback functions for powerful and long service life.
  • xArm 1S supports wireless handle control, smart phone APP and mouse control.
  • Three Programming Methods: PC software/Smart phone APP/Offline manual action programming.
  • Suction cup design: Using the vacuum cup, the robot arm can be stably fixed on the table to prevent the robot arm from slipping due to movement.

2_9a5c0b49-6385-4ad9-ba57-66fc1fe2f8d7.j3_45deb7bc-4414-4e74-a22f-603ac662138b.g4_1897e11f-2129-4e7d-b8d5-757d38099bcd.j

Item

Specification

Size

154*140*246mm

Body weight

about 0.9kg

Material

aluminum alloy and surface sandblasting and oxidation

DOF

5 DOF+gripper

Power supply

7.5V 6A DC power adapter

Controller system

xArm 1S bus servo controller

Software

PC software and mobile APP

Servo

single shaft/LX-15D/LX-225 intelligent bus servo

Control method

iOS/Android mobile APP/PS2/mouse/PC software

Package size

360*320*120mm (unassembled)
510*310*160mm (assembled)

Package weight

about 2.2kg

Packing List (Unassembled)

1* Robotic arm brackets (with servo horns)
1* 7.5V 6A DC power adapter
1* PS2 handle control
1* Handle control receiver
1* USB cable
1* Bus servo controller
4* LX-15D intelligent serial bus servo
4* No.1 bus servo
5* LX-225 intelligent serial bus servo
1* Screwdriver

 Packing List (Assembled)

1* xArm 1S robotic arm(ready-to-use)
1* PS2 handle control
1* USB cable
1* 7.5V 6A DC power adapter
1* Handle control receiver
1* Screwdriver
