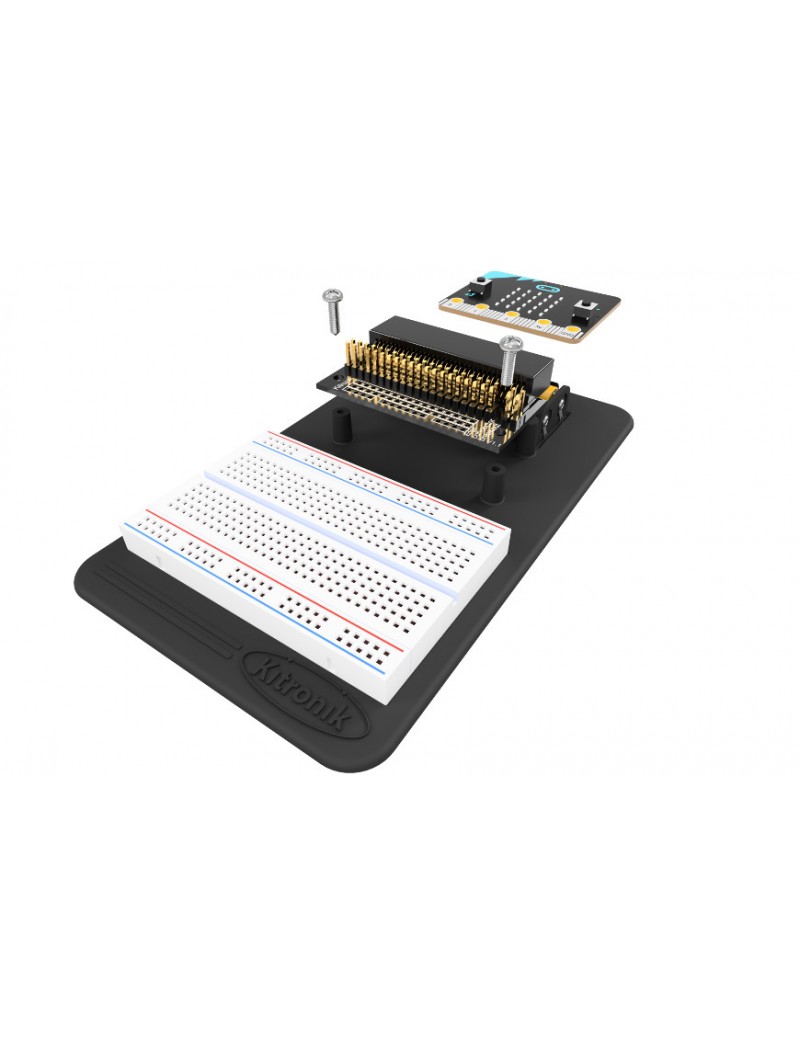

This Prototyping System for the BBC micro:bit is a great way to start making circuits and making experiments without the need to solder.

This prototyping system uses our specially designed Edge Connector Breakout Board for BBC micro:bit that gives full access to the pins on the bottom of the BBC micro:bit. The BBC micro:bit pins are broken out to a row of pin headers, the SCL and SDA pins are separated at the edge of the board providing easy identification. The PCB includes a prototyping area with 3V, 0V and unconnected rows that can be soldered to. This allows easy connection of switches, sensors and any pull-up or pull-down resistors etc. as required.

This prototyping system is used in conjunction with a Small Prototype Breadboard. This makes it easy to connect additional components using the included jumper wires. No soldering required.

Note:

This kit requires assembly.

Features:

• No soldering is required.
• Breaks out 21 pins from the BBC micro:bit using the Pre-built Edge Connector Breakout Board for BBC micro:bit.
• Small Prototype Breadboard included so you can use additional components.
• Run your own custom code from your BBC micro:bit to interact with external components.

Contents:

• 4 x Pan Head M3 Machine Screws.
• 1 x Small Prototype Breadboard.
• 10 x Jumper Wires Male to Male.
• 10 x Jumper Wires Male to Female.
• 1 x Mounting Plate.
• 1 x Edge Connector Breakout Board for BBC micro:bit - Pre-built.

Video:

Requires:

• 1 x BBC micro:bit.
• 1 x Phillips Screwdriver.

Resources:

• Prototyping Plate Assembly Instructions
• Edge Connector Breakout Board Datasheet.
