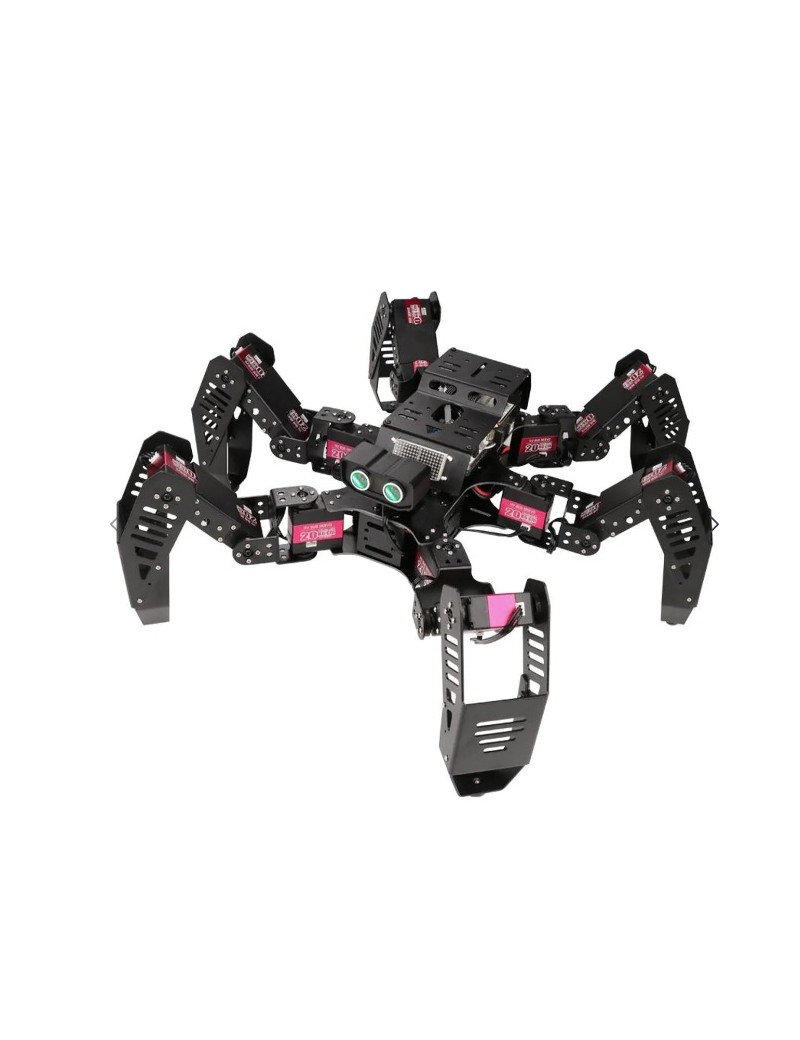

Spiderbot: Hiwonder Hexapod Programming Robot for Arduino Standard Version

Spiderbot: Hiwonder Hexapod Programming Robot for Arduino Standard Version

Quantità
Add to Compare
Add to Wishlist

1_2597acc3-37bb-4eee-b55e-ae059511c05f.j
Product Description
Spiderbot is a programmable hexapod robot with 18 DOF. Using the provided Android/iOS APP, it can easily achieve walking, climbing, dancing and etc. With sensor expansion kit version you can carry out the secondary development through Arduino programming. Detailed tutorials and open source are available for your learning.
Feature
  • New glowing ultrasonic sensor with RGB
  • Arduino secondary development controller
  • Provide open source of Arduino and code with annotations
  • 11.1V high-voltage servo can reduce the current by more than 60%
  • Compatible with Hiwonder sensors
614a07c62c34db0daaa1a7296909a9c3.jpg?v=1

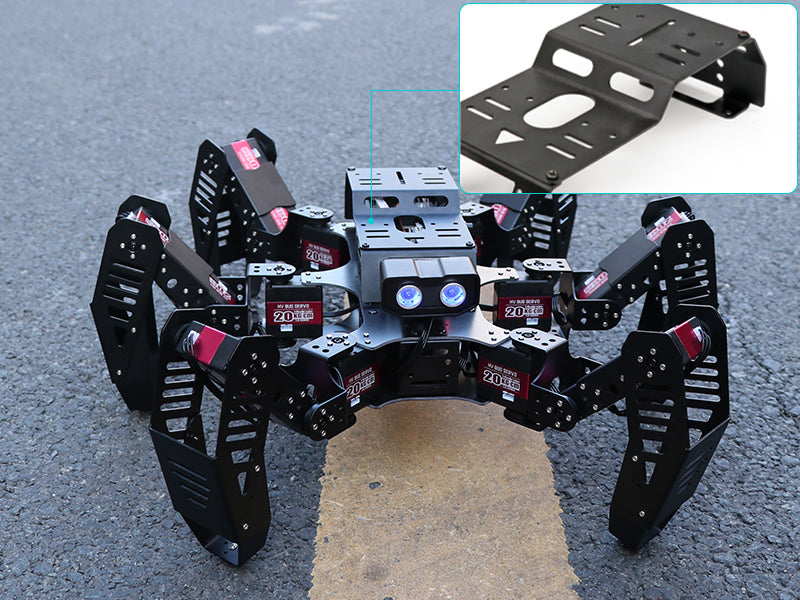

Upgraded Back Bracket has expansion holes for sensors on the back.
5e28e932576d2f0d8a846a30db2b44f5.jpg?v=1

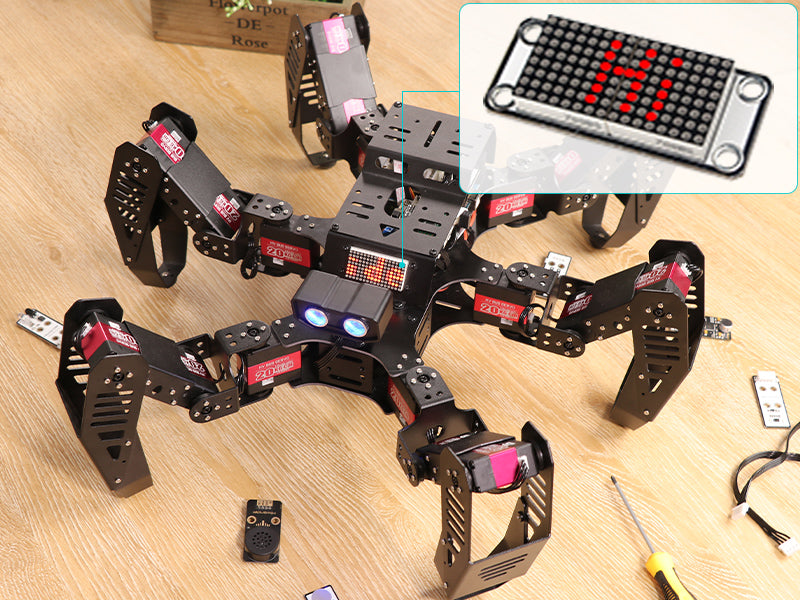

LED Dot Matrix sensor with 8*16 screen
90c07880c72582883051f38a27435b25.jpg?v=1

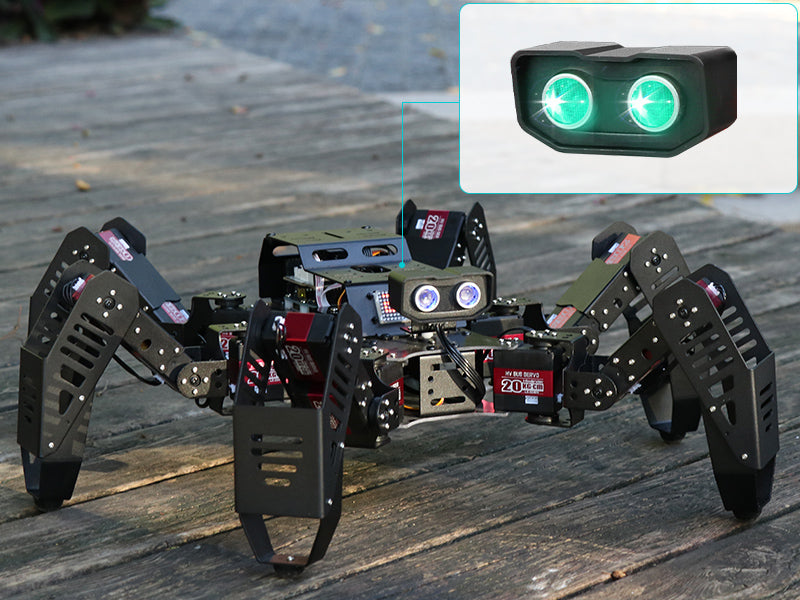

Glowing Ultrasonic Sensor features accurate measurement and detection with RGB
5_26808263-ac0a-4caa-99b0-5c77456d7b5e.j

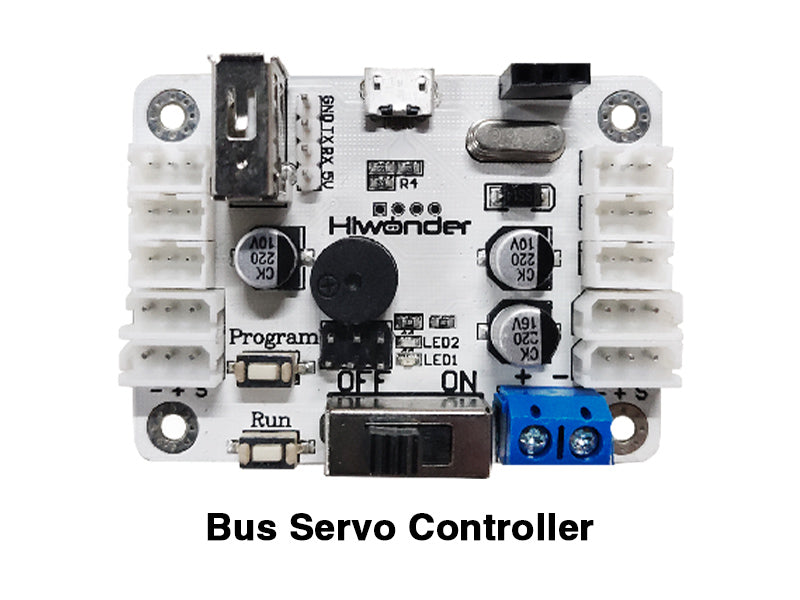

  • TTL serial communication
  • PS2 handle/Bluetooth module
  • Built-in buzzer for low voltage alarm
  • Free computer drive, PC graphical debugging
  • Manual button program and offline operation
6_770584dd-77d7-4682-bf0a-8b2f2c152ff5.j

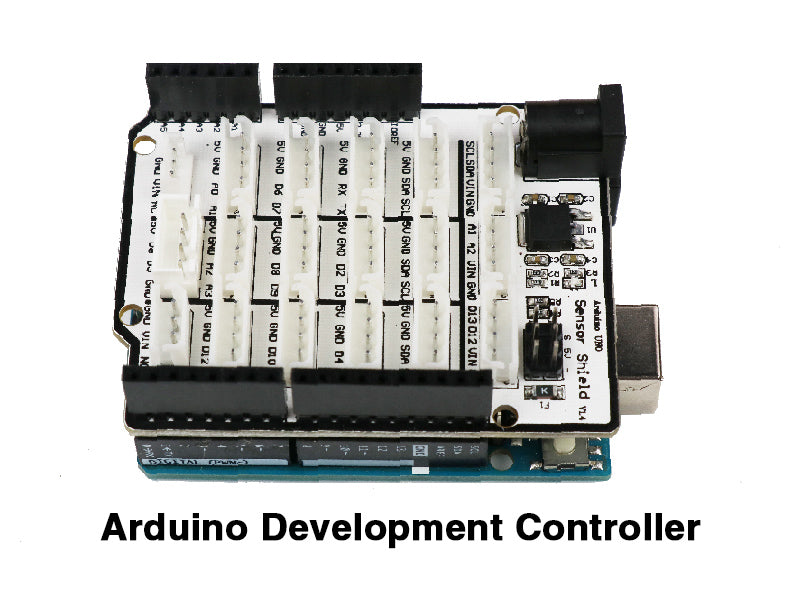

  • Compatible with Arduino
  • Compatible with Hiwonder sensors
  • Chip with high current supply
  • Pins with marked number
  • Numbered pins
9_50385cbb-0e39-49ad-a8d3-86af72fff8a0.g

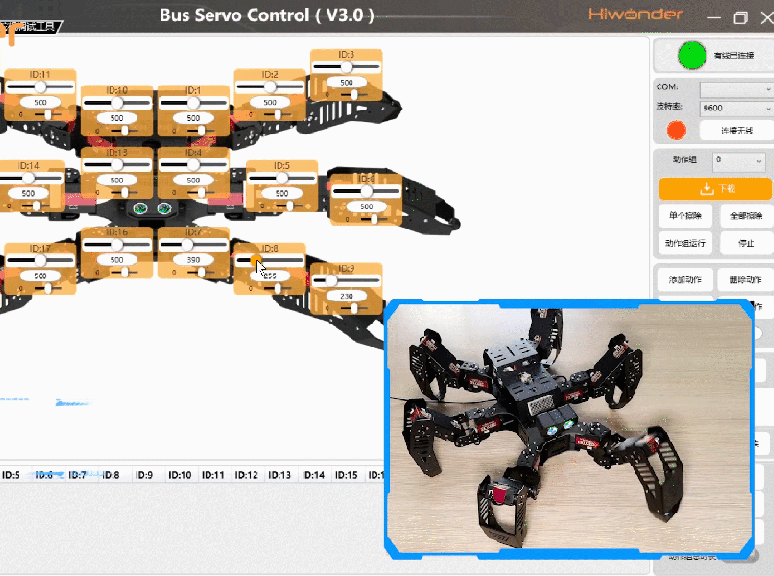

PC Software Program
8_bcbdc355-d5ac-40af-ac21-10b5adc50c40.g

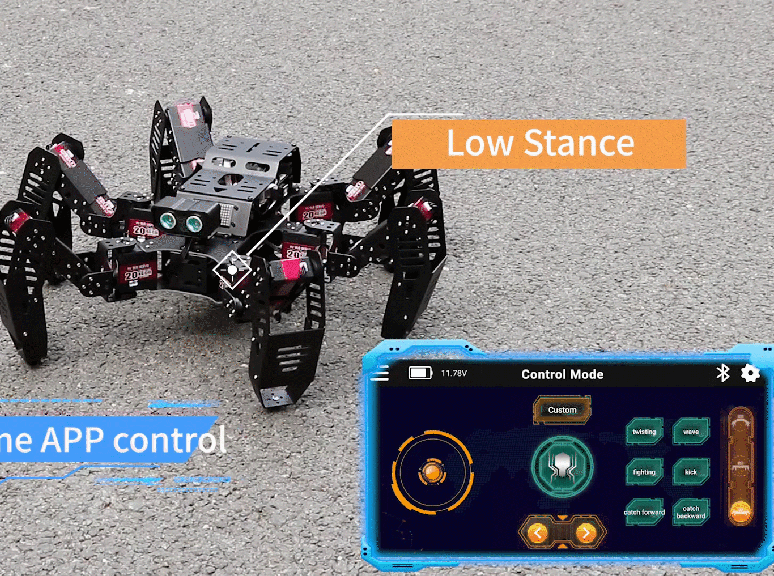

Smart Phone APP Control
7_d34e1a1c-aaf3-4dcb-8cfe-3704a5bcb039.g

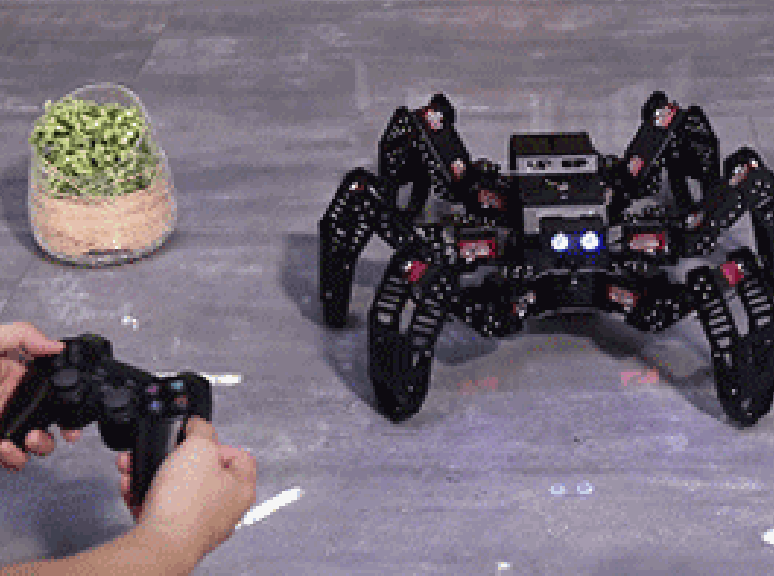

PS2 Handle Remote Control
10_2c3e3c5f-228a-4004-94f6-55dce9229404.

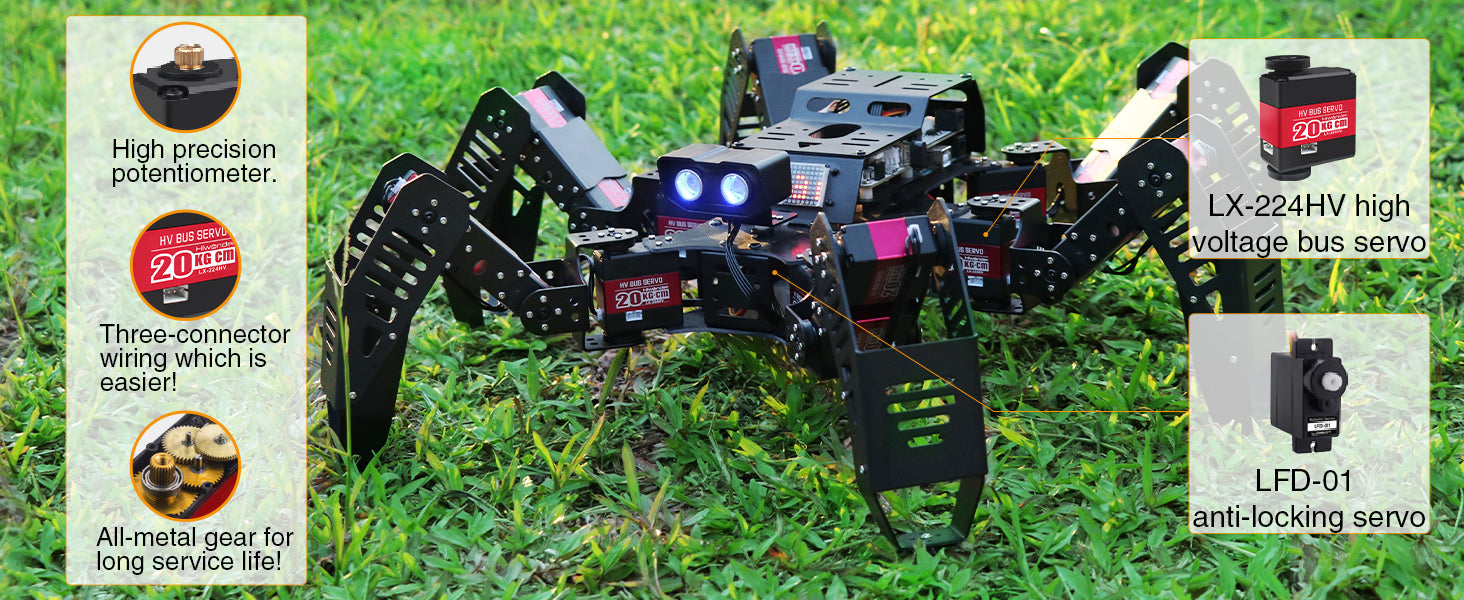

High Voltage Bus Servo
Compared with 7.4V servos, 11.1V high-voltage bus servo reduces current by more than 60%, which improves the robot’s endurance. Less power consumption, longer service time.
QQ_20220504171440.jpg?v=1651656768
Package List of Spiderbot Standard Version (Assembled)
Spiderbot body 1set Back bracket 1set
Arduino 1pcs Arduino expansion board 1pcs
RGB ultrasonic sensor 1pcs Arduino USB cable 1pcs
Accelerometer sensor 1pcs LED dot matrix 1pcs
4PIN wire 4pcs LFD-01 anti-locking servo 1pcs
3PIN wire 1pcs Servo accessories 1bag
12_9a2d1599-b734-43c8-b2d1-9c3ccce0c9e7.

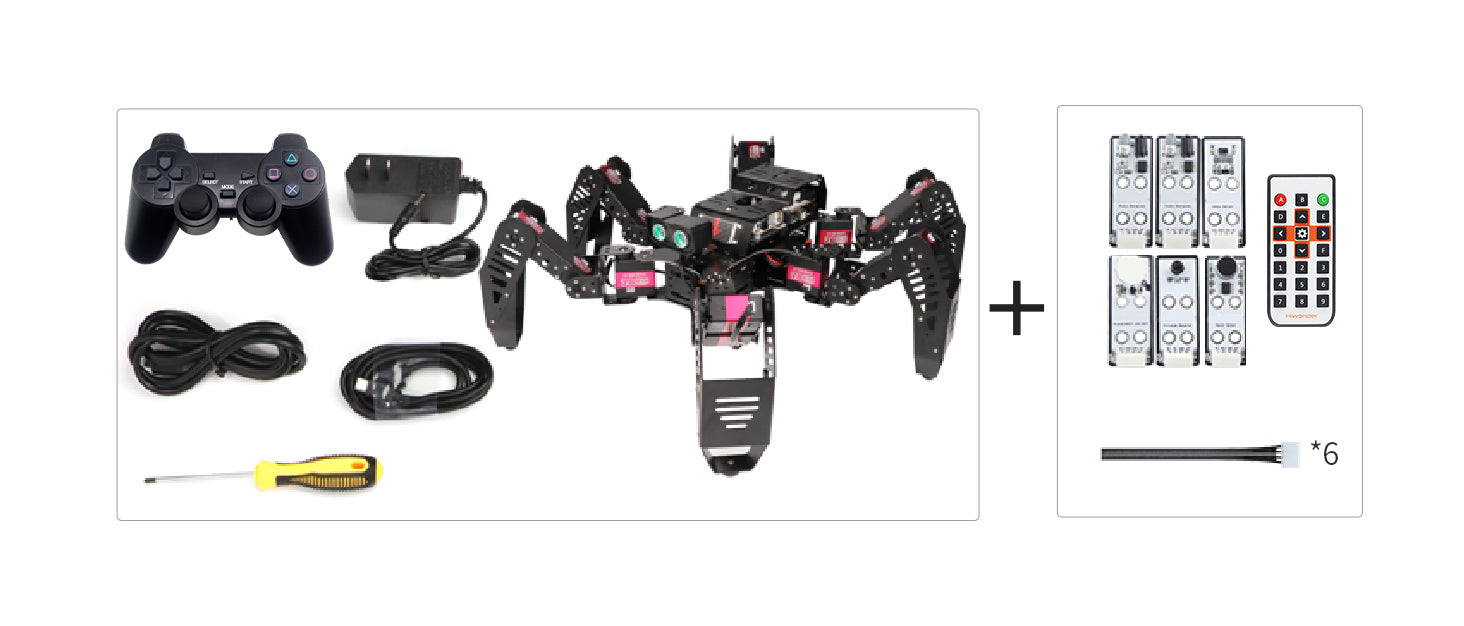

Package List of Spiderbot Standard Version (Assembled) + Sensor Expansion Kit
Spiderbot Standard Version (Assembled) 1set Touch sensor 1set
Infrared obstacle avoidance sensor 2pcs Infrared receiver 1pcs
Sound sensor 1pcs Color sensor 1pcs
Infrared remote controller 1pcs 4PIN wire 6pcs
13_00693521-3265-4bd0-afaf-de44d3e8b93a.
Item Specification
Spiderbot body size leg: 255mm; stretching size: 695*614mm
Spiderbot body weight about 2.35kg
Spiderbot body material metal and fiberglass panels
Rotation angle 180°
Battery 11.1V 2000mAh 10C high voltage lithium battery
Working hours keep running about 70-100mins
DOF 3 DOF each leg*6
Hardware bus servo controller+Arduino secondary development controller
Servo parameters LX-224HV high voltage bus servo; metal gear; weight: about 60g; Torque: 20kg/cm 11.1V

Package List of Spiderbot Standard Version(Assembled )

1*Spiderbot body
1*Arduino
1*RGB ultrasonic sensor
1*Accelerometer sensor
1*4PIN wire
1*3PIN wire
1*Back bracket
1*Arduino expansion board
1*Arduino USB cable
1*LED dot matrix
1*LFD-01 anti-blocking servo
1*Servo accessory bag
1*PS2 handle controller
Package List of Spiderbot Standard Version(Assembled )+Sensor Expansion Kit

1*Spiderbot standard version(Assembled )
2*Infrared obstacle avoidance sensor
1*Sound sensor
1*Infrared remote controller
1*Touch sensor
1*Infrared receiver
1*Color sensor
6*4PIN wire
1*PS2 handle controller
