Tonybot - Humanoid Robot Arduino

Tonybot: Hiwonder Humanoid Robot Educational Programming Kit/Arduino

  • Provide open source of Arduino
  • Provide PC software and infrared remote control

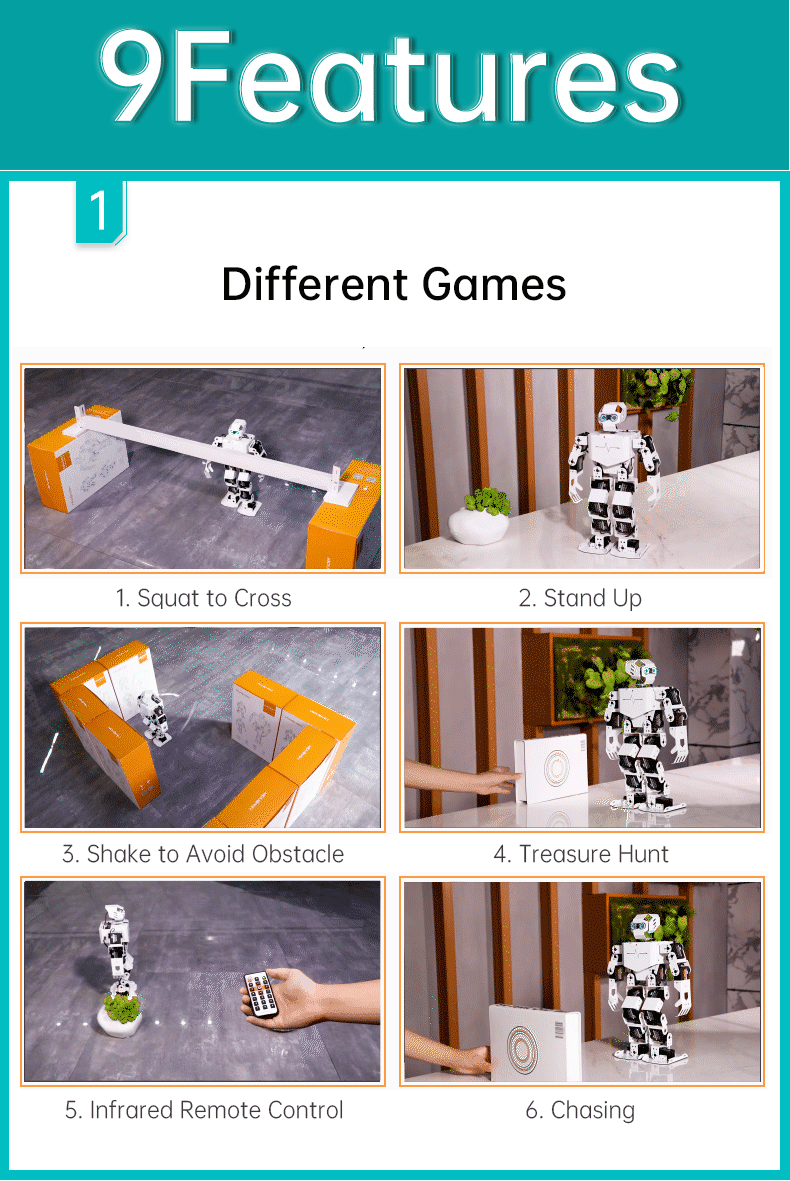

  • Abundant intelligent games, detailed tutorials
  • Upgrade glowing ultrasonic sensor
  • Hiwonder high voltage bus servos, long service time
  • Compatible with Hiwonder sensors
Quantità
Add to Compare
Add to Wishlist

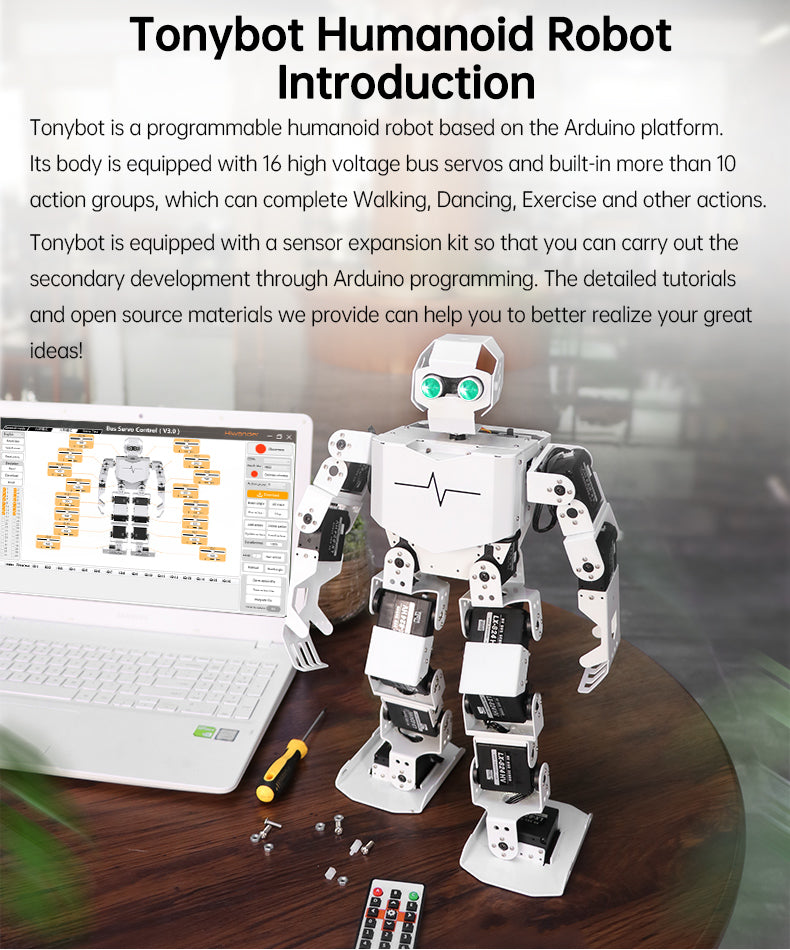

Hiwonder Tonybot is a programmable humanoid robot based on the Arduino platform. Its body is equipped with 16 high voltage bus servos and built-in more than 10 action groups, which can complete Walking, Dancing, Exercise and other actions.
Tonybot is equipped with a sensor expansion kit so that you can carry out the secondary development through Arduino programming. The detailed tutorials and open source materials we provide can help you to better realize your great ideas!

Feature

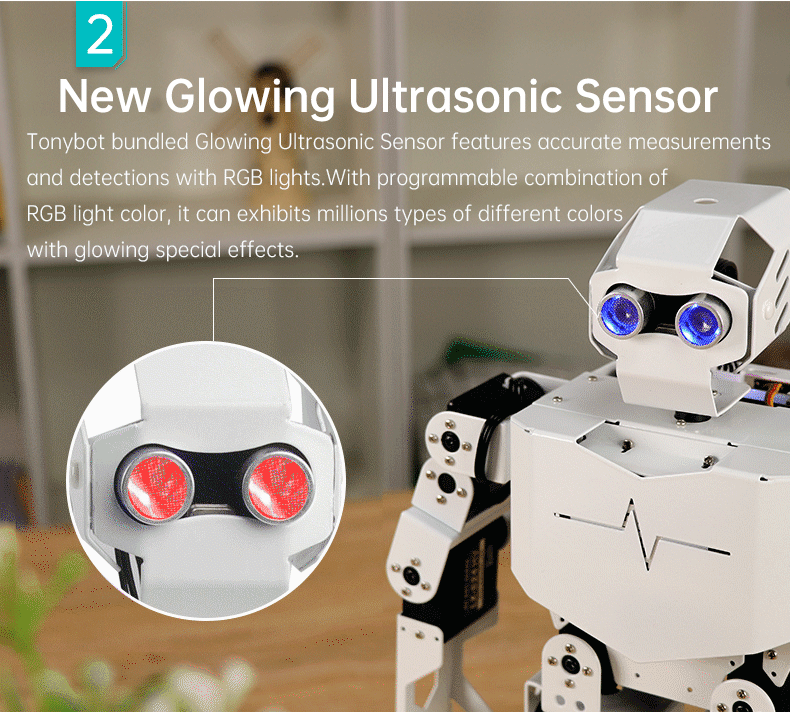

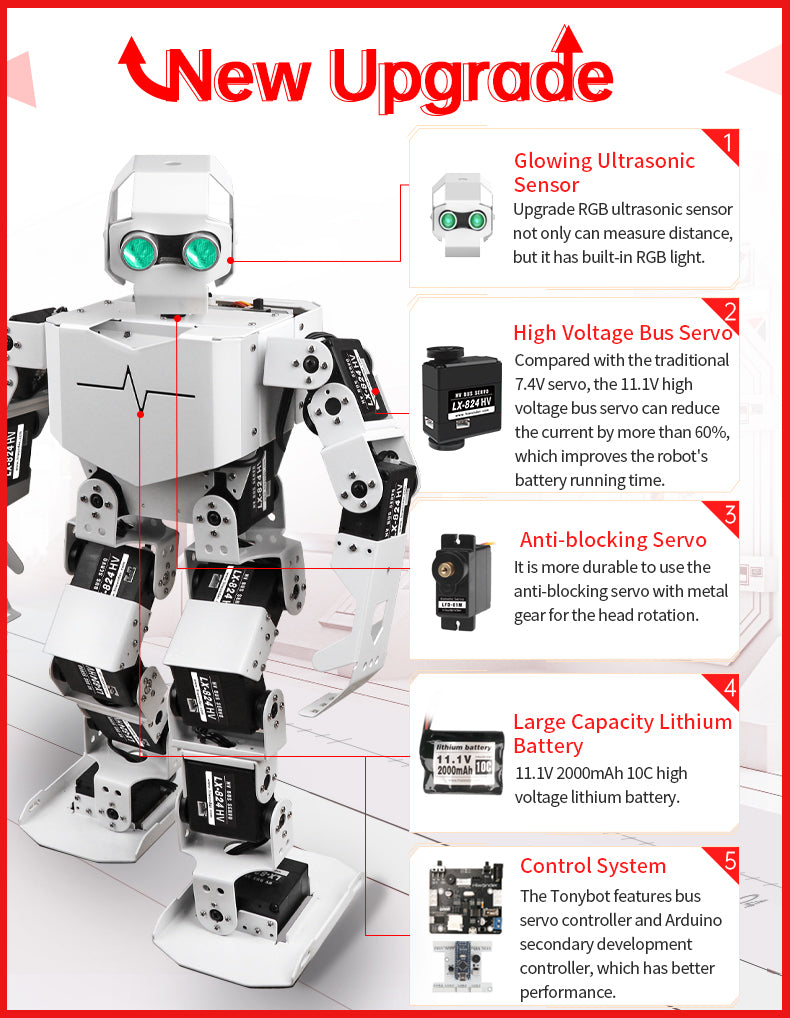

  • New luminous ultrasonic sensor not only can measure distance, but it has built-in RGB light. High precision and tiny blind area.

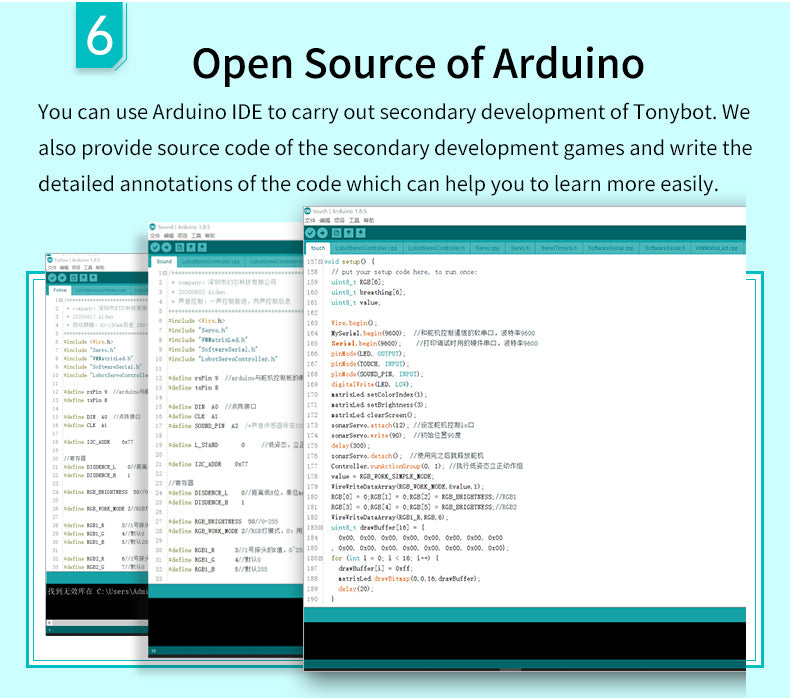

  • Provide open source of Arduino, code of games and detailed annotations of the code.
  • 11.1V high-voltage servo can reduce the current by more than 60%, which significantly improves the endurance of robots.
  • 2020 new version PC Software , easy and impressed.
  • Servo special plug in design to prevent from wrong direction.
  • Compatible with Hiwonder sensors.

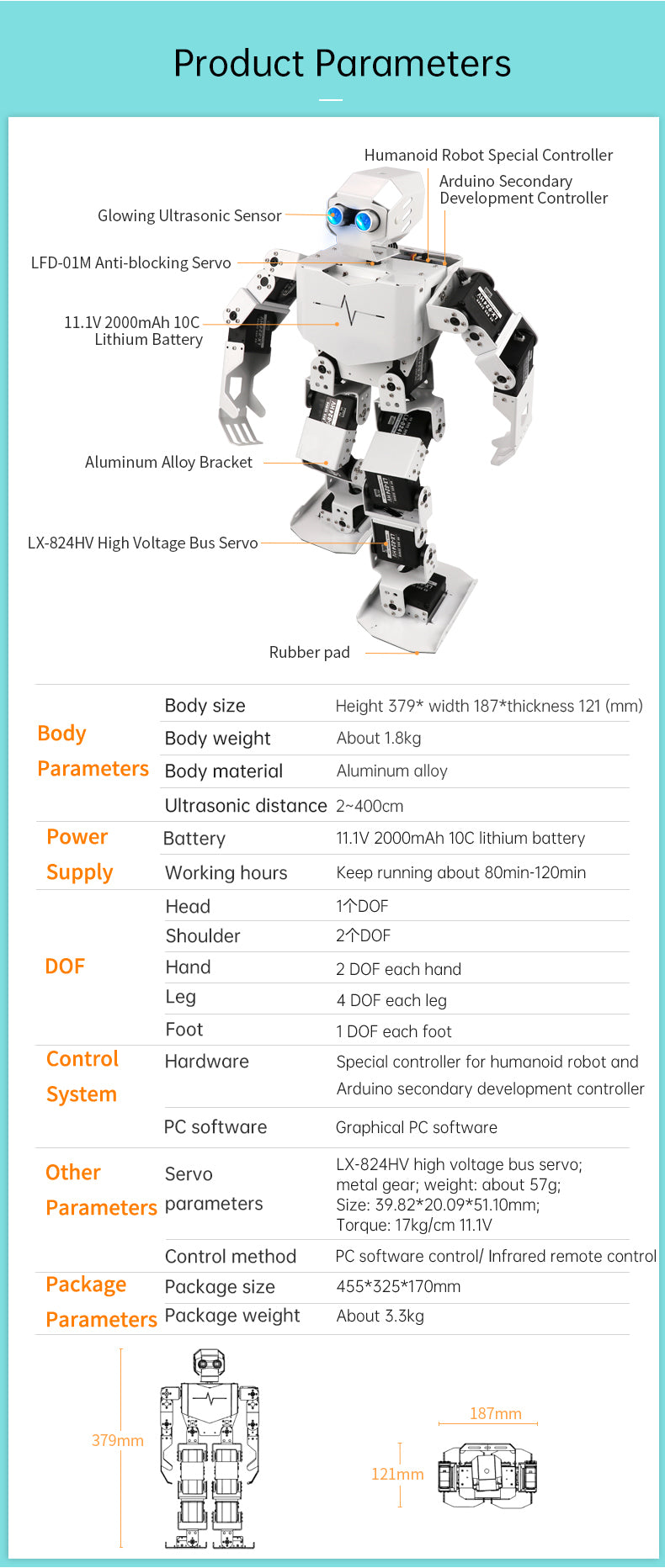

Item Specification
Body size Height 379* Width 187*Thickness 121 (mm)
Body weight About 1.8kg
Body material Aluminum alloy
Ultrasonic distance 2~400cm
Power Supply Battery: 11.1V 2000mAh 10C lithium battery
Working hours: Keep running about 80min-120min
DOF Head: 1DOF
Shoulder: 2DOF
Hand: 2 DOF each hand
Leg: 4 DOF each leg
Foot: 1 DOF each foot

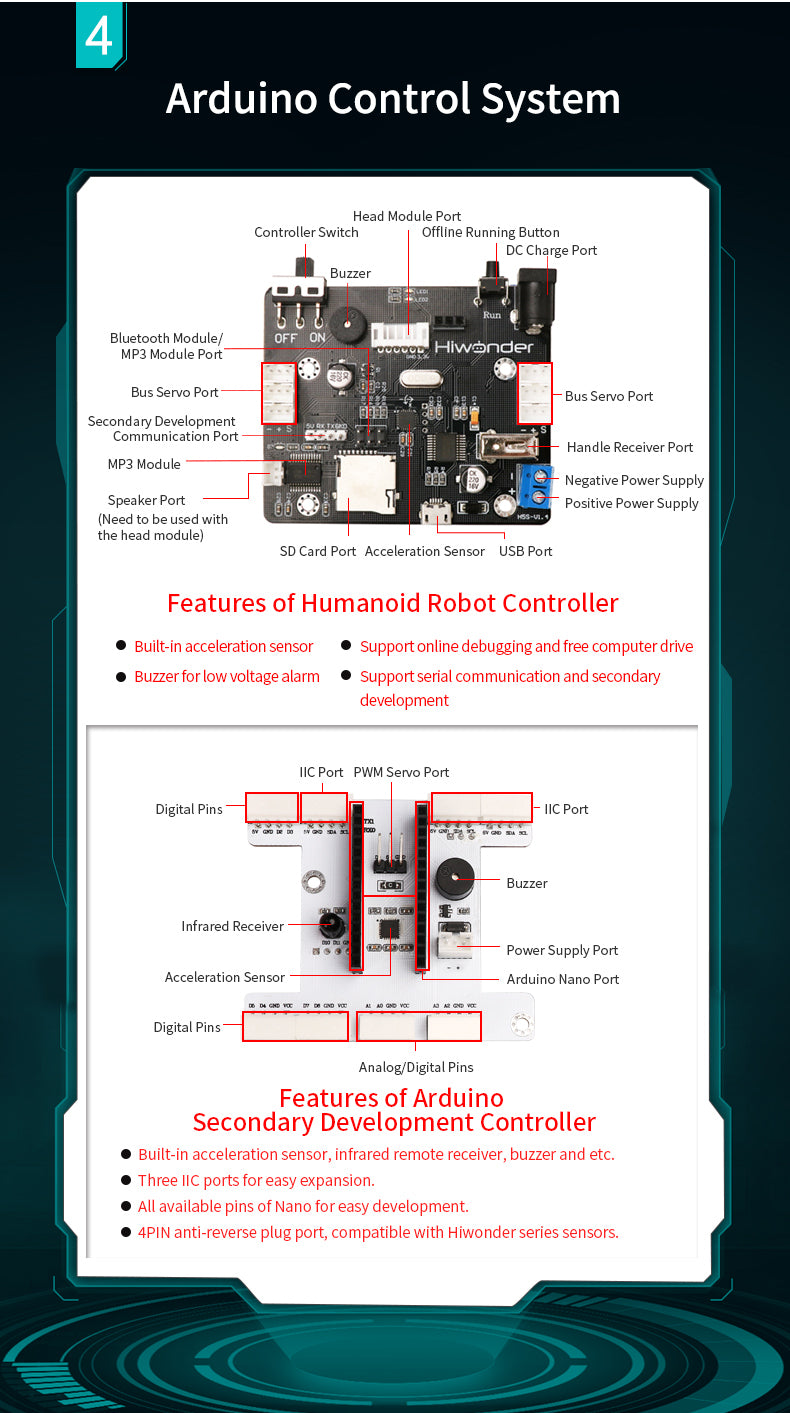

Control System Hardware: Special controller for humanoid robot and Arduino secondary development controller

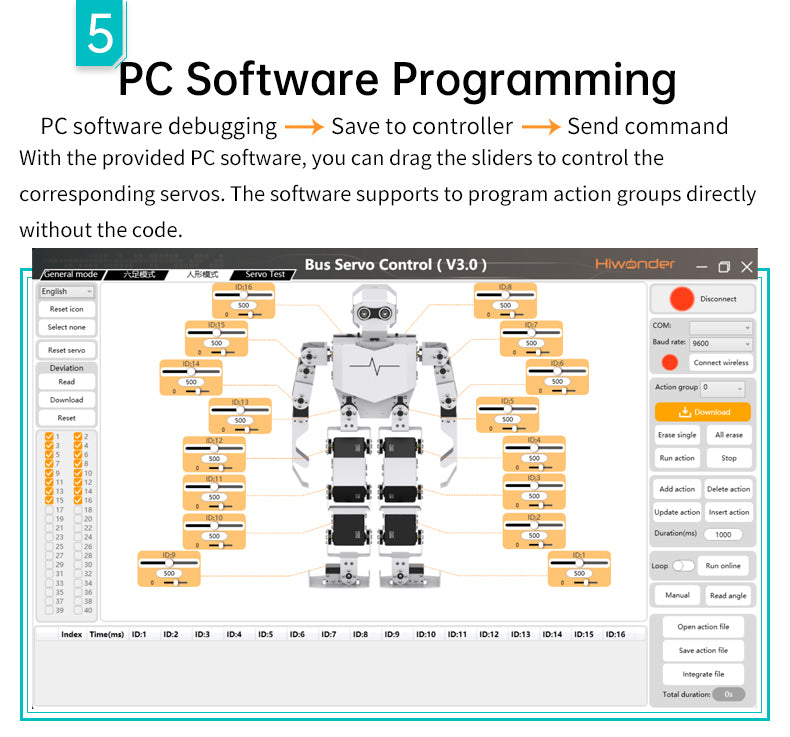

PC software: Graphical PC software

Other Parameters

Servo parameters: LX-824HV high voltage bus servo; metal gear; weight: about 57g;
Size: 39.82*20.09*51.10mm;
Torque: 17kg/cm 11.1V
Control method: PC software control/ Infrared remote control

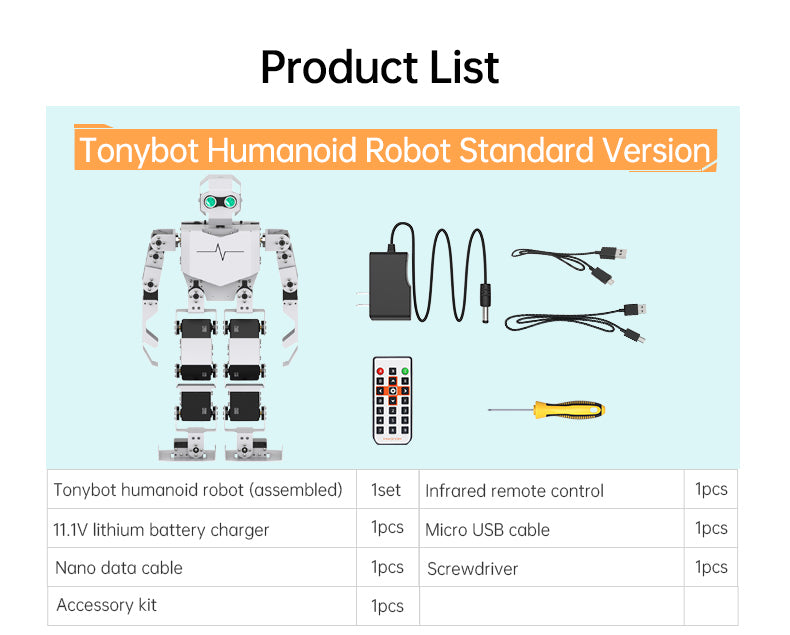

Packing List of Tonybot Humanoid Robot Standard Version

 1* Tonybot humanoid robot (assembled)
1* 11.1V lithium battery charger
1* Nano data cable
1* Infrared remote control
1* Micro USB cable
1* Screwdriver
1* Accessory kit

Feature

  • New luminous ultrasonic sensor not only can measure distance, but it has built-in RGB light. High precision and tiny blind area.
  • Provide open source of Arduino, code of games and detailed annotations of the code.
  • 11.1V high-voltage servo can reduce the current by more than 60%, which significantly improves the endurance of robots.
  • 2020 new version PC Software , easy and impressed.
  • Servo special plug in design to prevent from wrong direction.
  • Compatible with Hiwonder sensors.





Item Specification
Body size Height 379* Width 187*Thickness 121 (mm)
Body weight About 1.8kg
Body material Aluminum alloy
Ultrasonic distance 2~400cm
Power Supply Battery: 11.1V 2000mAh 10C lithium battery
Working hours: Keep running about 80min-120min
DOF Head: 1DOF
Shoulder: 2DOF
Hand: 2 DOF each hand
Leg: 4 DOF each leg
Foot: 1 DOF each foot
Control System Hardware: Special controller for humanoid robot and Arduino secondary development controller
PC software: Graphical PC software

Other Parameters

Servo parameters: LX-824HV high voltage bus servo; metal gear; weight: about 57g;
Size: 39.82*20.09*51.10mm;
Torque: 17kg/cm 11.1V
Control method: PC software control/ Infrared remote control

Packing List of Tonybot Humanoid Robot Standard Version

 1* Tonybot humanoid robot (assembled)
1* 11.1V lithium battery charger
1* Nano data cable
1* Infrared remote control
1* Micro USB cable
1* Screwdriver
1* Accessory kit
