Robo-Soul H3S Humanoid

Quantità

  • User-friendly ports
  • Extra-long battery life
  • High precision digital servo
  • Support phone, handle and computer control
  • Integrated structure sinificantly strengthen the robot body

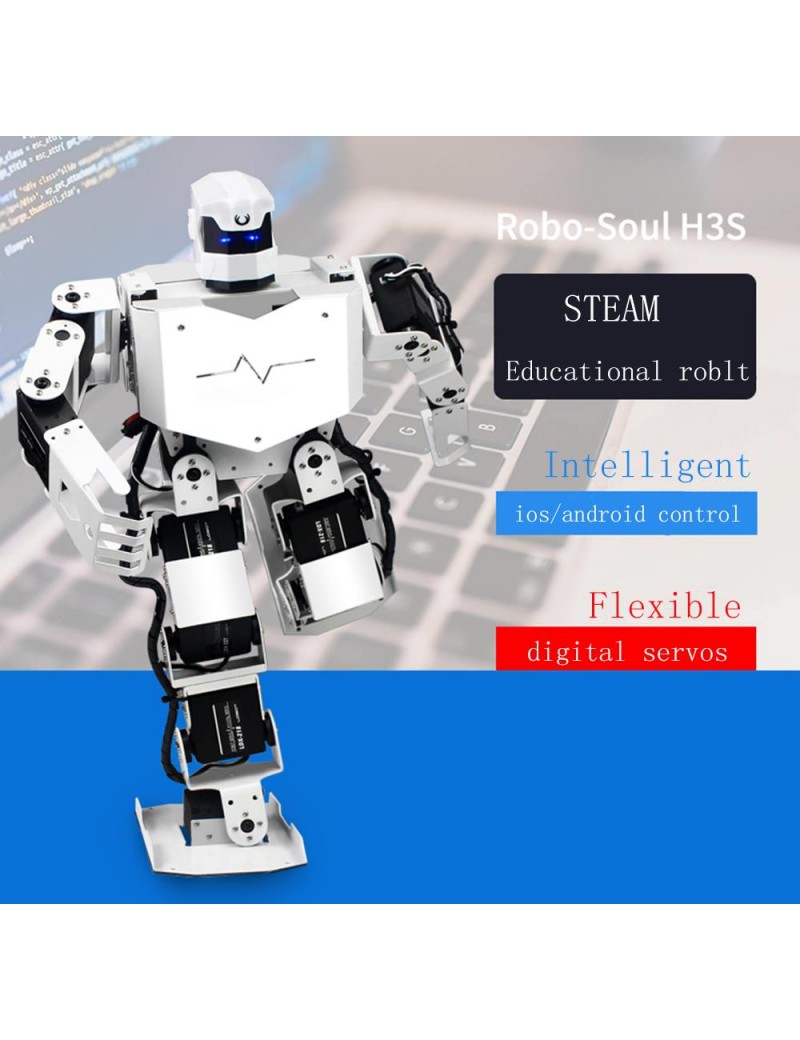

Robo-Soul H3S intelligent robot structure is composed of 16 joints. Not only it can walk, turn and somersault, but it can do many different fancy dances. We use a high-performance servo to make sure that robot motion can be precise and agile; it can also play kung fu, football and sing a song. Some gymnastic movement like push-up and sit-up can also be done. Robo-Soul H3S supports mobile phone, sound, computer and handle control. Extra-long battery life and various functions allow users to create and program more actions and functionalities.

Feature

  • High precision digital servo: The accuracy and linearity of the robot have greatly improved and the robot can do some complex movement.

  • Integrated structure: The integrated structural frame can strengthen the robot structure and body and improve appearance.

  • Extra-long battery life: Robo-Soul H3S humanoid robot can keep running for over 2 hours.

  • Support 3 control methods: Android/ Ios phone control, handle control, computer control

  • User-friendly ports: Built-in power supply switch, charging port and programming connecting port make operation easier. The fully enclosed backshell design protects the circuit board from being damaged.

Item Specification
Size 365mm*192mm
Net Weight 1.65kg
Body Material ultra-lightweight aluminium alloy (surface hardening treatment combine with upgrade structure design)
Power Supply System 7.4V large capacity lithium battery
Degrees of Freedom(DOF) 2 DOF shoulder
2 DOF( each arm )
4 DOF (each leg)
1 DOF (each foot)
Robot Control System humanoid robot specified 24 channel servo controller
graphical interface software
Servo Parameters

LDX-218 digital servo & LDX-227 digital servo
40mm*20mm*40.5mm metal gear
15kg/cm 6V;17kg/cm 7.4V plugging torque

Package List

1* structural frame kit
N* connection wire
1* lithium battery+battery charger
1* PS2 handle and its receiver
12* LDX-218 digital servo
N* coil hose tie
1* servo controller and USB cable
1* MP3 module and horn
1* wireless communication module
4* LDX-227 digital servo

HIW-H3S
