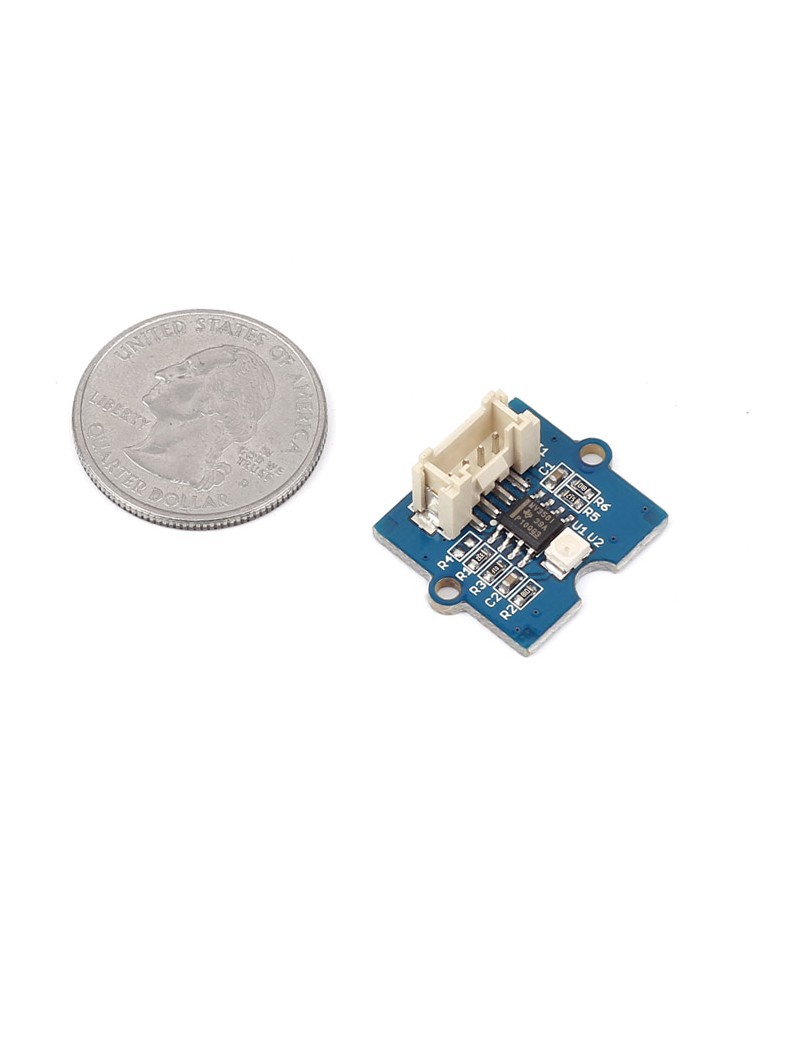

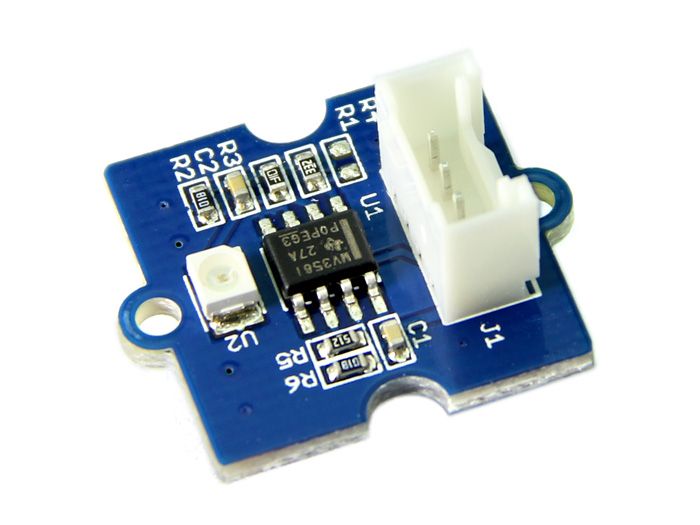

Grove - UV Sensor
Write your review
10,86 €
Tasse incluse
Description
The Grove – UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. It is based on the sensor GUVA-S12SD.It has a wide spectral range of 200nm-400nm. The module will output electrical signal which is varied with the change of the UV intensity. UV sensors are used for determining exposure to ultraviolet radiation in laboratory or environmental settings.
Features
-
High stability
-
Good Sensitivity
-
Low power consumption
-
Schottky type photodiode sensor
-
Wide response range
-
Grove Interface
Technical Details
| Dimensions | 20mm x 20mm x 15mm |
| Weight | G.W 8g |
| Battery | Exclude |
Part List
| Grove - UV Sensor | 1 |
| Grove Cable | 1 |
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 9031900090 |
Certification
| RoHS | Compliant |
Learn
[Wiki] Grove - UV Senosr
Wiki of Grove - UV Sensor
Arduino and Ultraviolet (UV) Sensor
UV Sensor connection pins to Arduino microcontroller are presented in Arduino code. Just download Arduino code and watch the video.
SE-101020043
