Grove - I2C ADC

14,64 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

Description

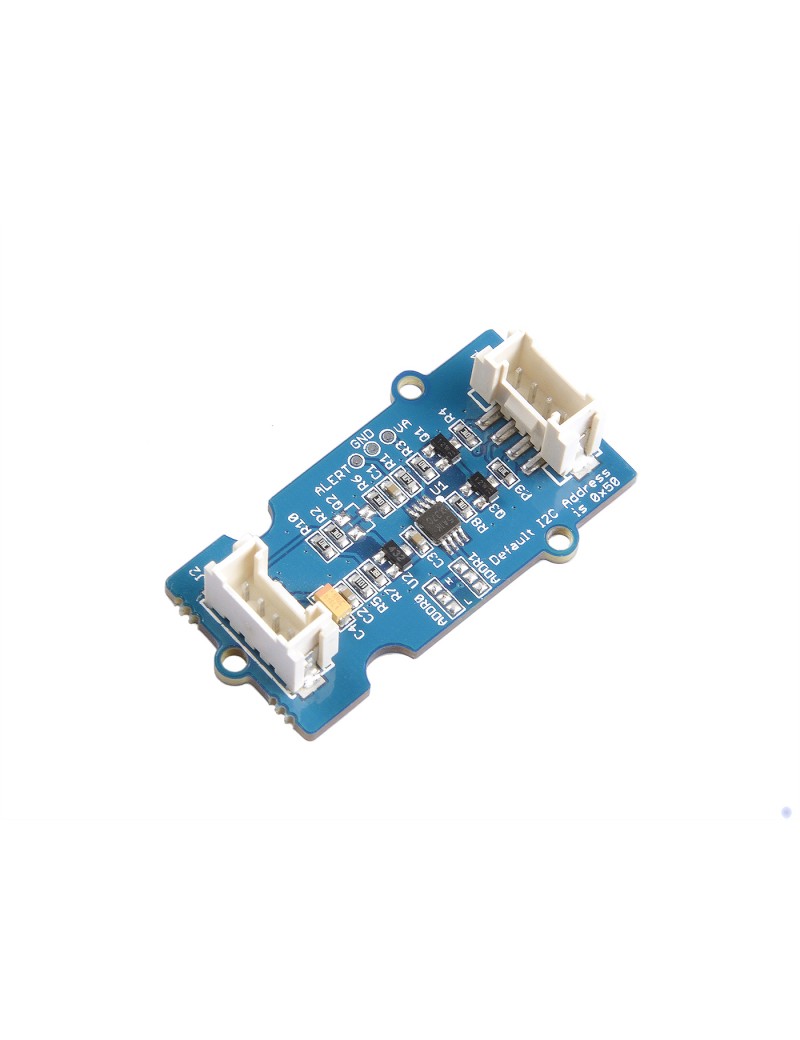

Grove - I2C ADC is a 12-bit precision ADC module based on ADC121C021. It helps you increase the accuracy of value collected from analog sensor by providing a constant reference voltage. Because its address is changeable, you can use up to 9 I2C ADC at the same time at most. At the other hand, this module provides auto sleep function which lowers the power consumption considerably.

Features

  • Low power consumption

  • High precision

  • Automatic power-down mode

  • Address changeable



For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.




Technical Details

Dimensions 60mm x 90mm x 10.6mm
Weight G.W 10g
Battery Exclude

Part List

Grove - I2C ADC 1
Grove Cable 1
