Introduction

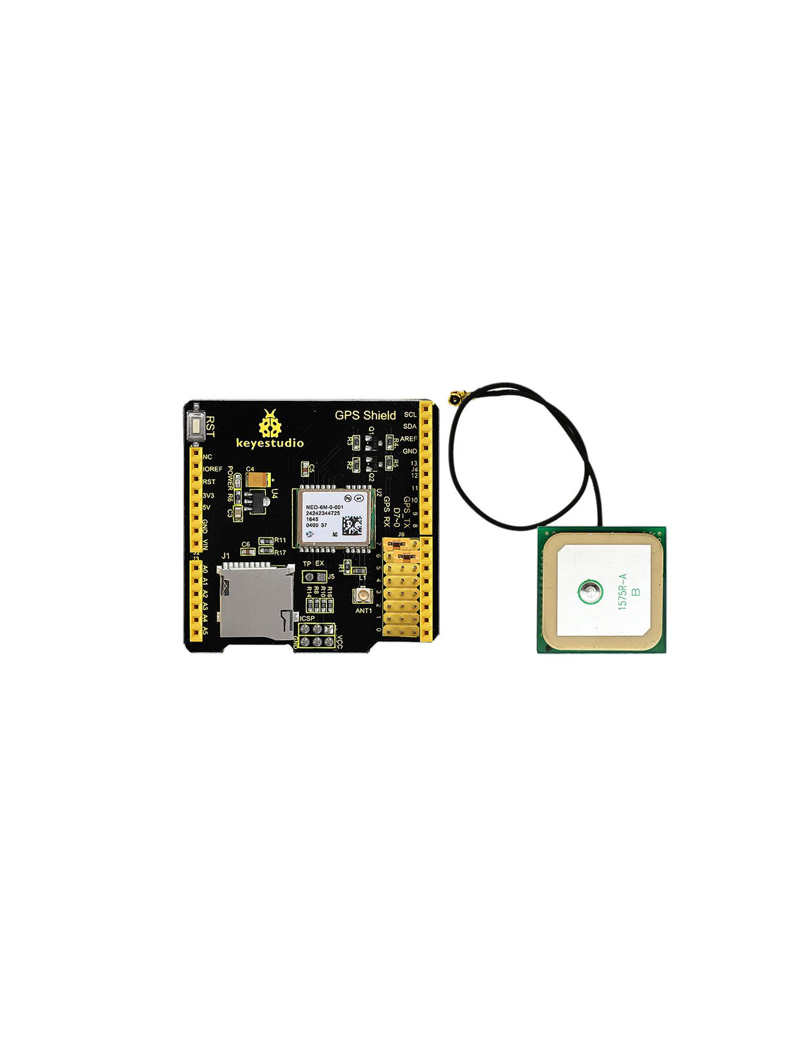

It is based on the NEO - 6   GPS module, and its pins are compatible with Arduino/MEGA board. Regular GPS pins (RX, TX) can be connected to Arduino D0-D7.

Several GPS receivers are easily installed on the expansion board and you can find your exact position within a few meters. At the same time, GPS also provides a very accurate time for you!

It is applied to automobile navigation, personal positioning, team management, navigation and so on.

Performance Parameters

1.Using a source GPS antenna;

2. connecting TxD and RxD to Ardino pins (D0-D8 optional) by jumping wire, and the default position for the jumper caps is as below:

D2 < - > RX, D3 < - > TX.

3. TF cassette, SPI interface, supporting Arduino library;

4. With reset button, supporting directly reset the Arduino baseplate.
