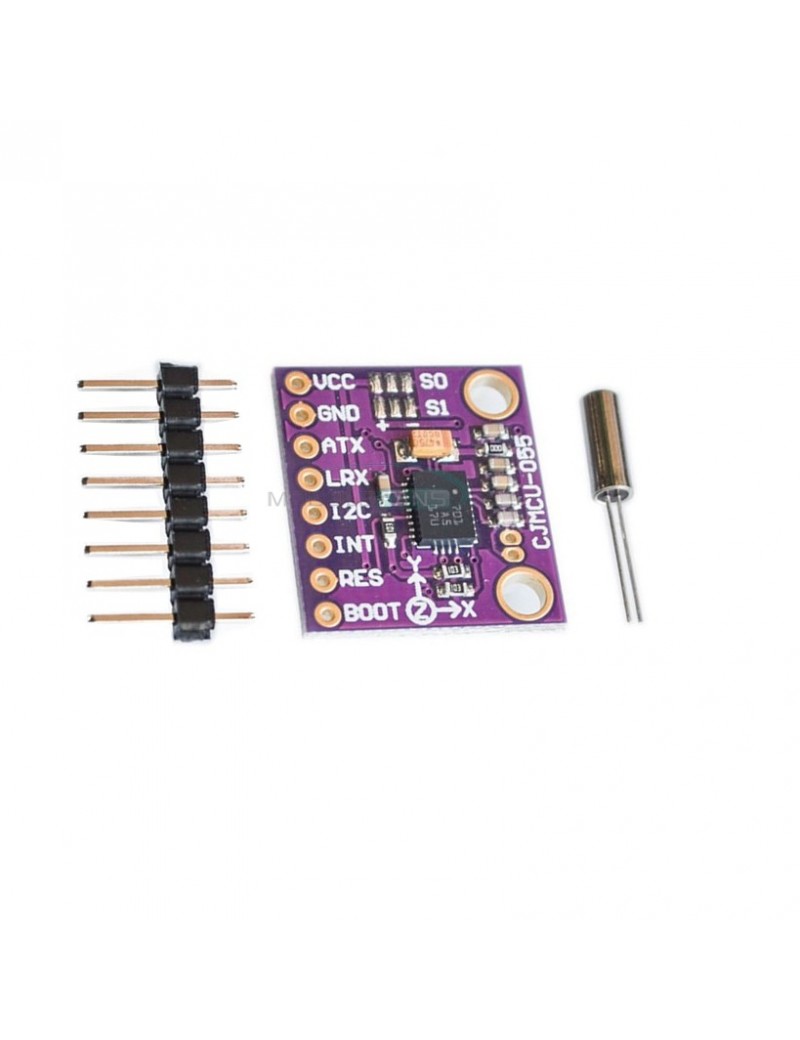

MCU+9DOF BNO055 Intelligent 9-axis

36,90 €
Quantità

Description:

100% Brand New and High Quality.
Shape: Same as the picture show
1. Type: CJMCU-055
2. Size: 20mm x 20mm (LxW)
CJMCU-055 is a System in Package (SiP),
integrating a triaxial 14-bit accelerometer,
atriaxial 16-bit gyroscope with a range of ±2000
degrees persecond,
a triaxial geomagnetic sensor and a 32-bit cortex
M0+ microcontroller running Bosch
Sensortec sensor fusion software, in a single
package.The corresponding chip-sets are
integrated into one single 28-pin
LGA 3.8mm x 5.2mm x1.1 mm housing.
For optimum system integration the BNO055 is
equipped with
digital bidirectional I2C and UART interfaces.
The I2C interface can be programmed to run with
the HID-I2C IIC
protocol turning the BNO055 into a plug-and-play
sensor hub solution for
devices running the Windows 8.0 or 8.1 operating
system.This datasheet release describes the
BNO055 engineering samples
programmed with version 0.3.0.4 of the BNO055
firmware.The firmware version can be identified
by read SW_REV_ID_MSB and
SW_REV_ID_LSB registers; firmware version 0.3.0.4
will return the
value 0x03 for the MSB and 0x04 for the LSB.

JH-YXK331
