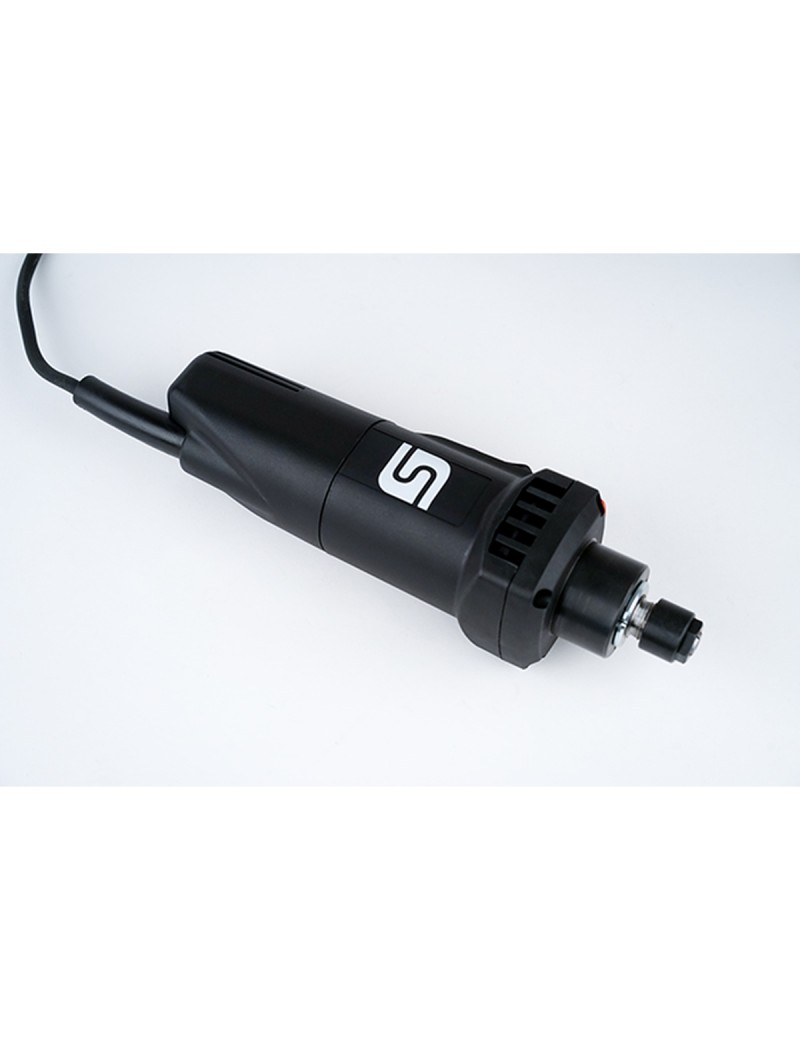

Milling Motor MM-800 (EU)

229,00 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

The MM-800 is the ideal milling motor for the entry into CNC technology. The 240 V milling motor has been developped according to high quality standards and fits all STEPCRAFT CNC Systems version 2 perfectly as well as many other CNC routers operated in private or commercial environment. The MM-800 is manufactured in Germany and is designed to permanently deliver best workpiece results with high reliability.

Note: Please take into consideration that this milling motor is not compatible with the 1st generation machines of the D-Series.

For a comparative overview of all our milling motors please click here.


Technical Specifications:
  • Input voltage (AC): 240 V
  • Power: 800 W
  • Rotary speed: 7.000 - 25.000 rpm
  • Full wave electronics for consistent speed and soft start-up
  • Overload protection (current, temperature)
  • Concentricity (cone): < 0,01 mm
  • Concentricity (end mill): < 0,05 mm (25 mm distance to cone)
  • Labyrinth seal to protect spindle bearing against foreign particles
  • Manual spindle lock for the tool change
  • High milling force capacity due to double spindle bearings (sealed)
  • Universal Collet System from 1,0 to 8,0 mm
  • Weight: 1,6 kg

Scope of Delivery:
  • 1x tool clamp
  • 1x milling motor MM-800
  • 1x collet 3.175 mm (1/8")
Accessory for: D-Series Q-Serie
Shipping weight: 1,60 Kg
SC-11583
