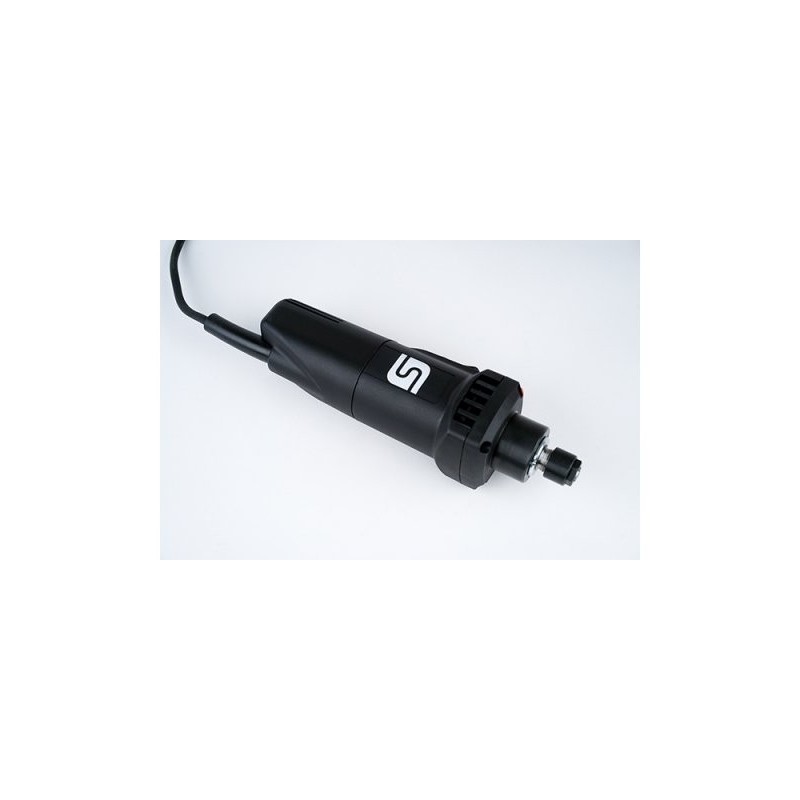

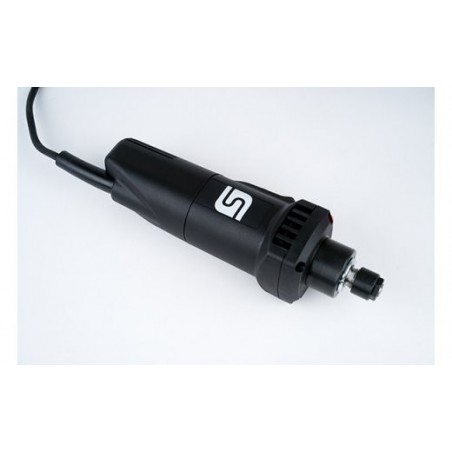

During its every workday, a milling motor is heavily used. With the MM-1000 STEPCRAFT has commissioned the development of a milling motor with high end quality standards. The motor is manufactured in Germany and fits all STEPCRAFT CNC Systems version 2 perfectly as well as many other CNC routers operated in private or commercial environment. The milling motor is designed to permanently deliver best workpiece results with high reliability.

Technical Specifications:

• Input voltage (AC): 240 V
• Power: 1000 W
• Rotary speed: 4.000 - 25.000 rpm
• Full wave electronics for consistent speed and soft start-up
• Overload protection (current, temperature)
• Concentricity (cone): < 0,01 mm
• Concentricity (end mill): < 0,05 mm (25 mm distance to cone)
• Labyrinth seal to protect spindle bearing against foreign particles
• Manual spindle lock for the tool change
• High milling force capacity due to double spindle bearings (sealed)
• Universal Collet System from 1,0 to 8,0 mm
• Weight: 1,8 kg

Scope of Delivery:

• 1x tool clamp
• 1x milling motor MM-1000
• 1x collet 3.175 mm (1/8")
