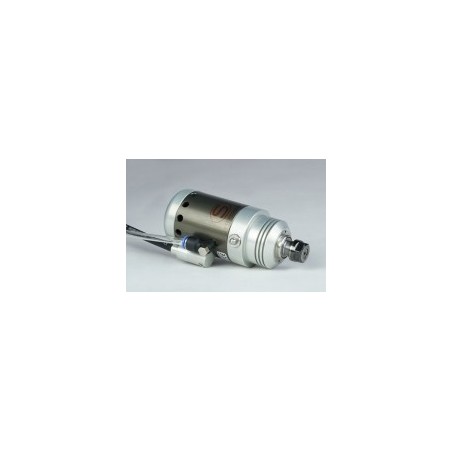

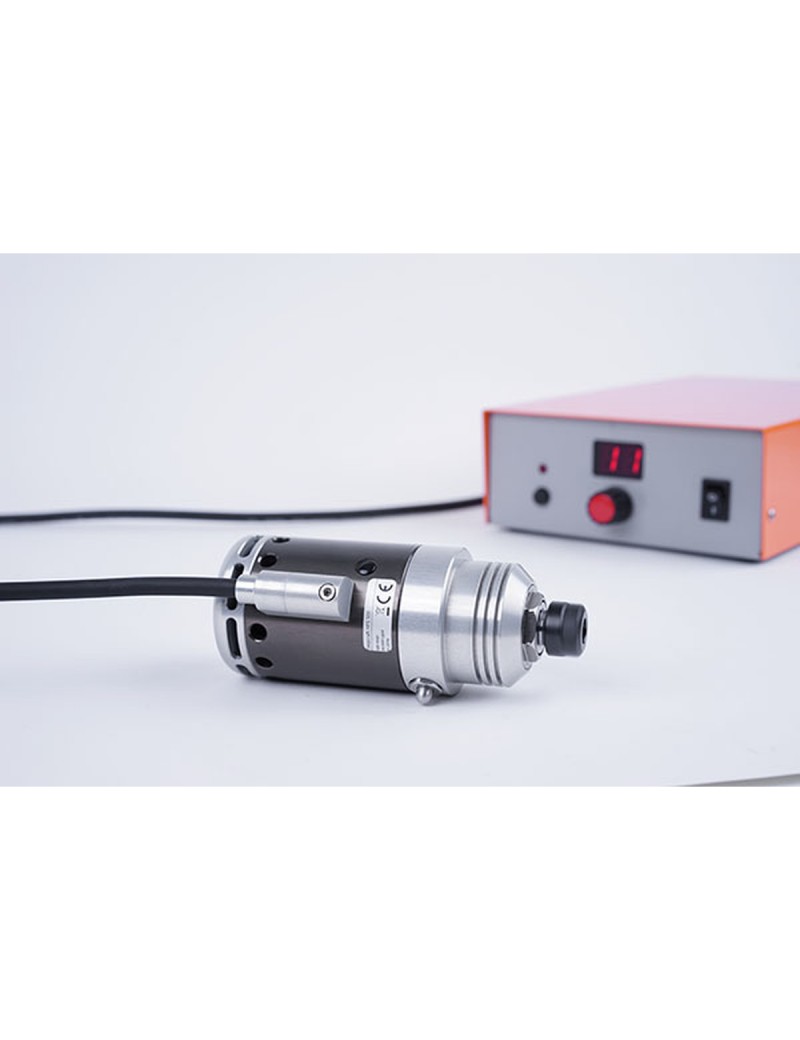

The STEPCRAFT HF precision milling spindle 500 W of the second generation is based on the design of the first generation, but brings many new features. The HF-500 v2 is a cylindrical spindle in compact design, equipped with a high-torque asynchronous motor. The large-dimensioned ball bearings (triple ball bearings) ensure precise concentricity and increased tool life. Further advantages are the high rigidity, the low-vibration running and the lifetime grease lubrication. The control unit has been completely redesigned and now offers, in addition to 6 supported languages, the possibility to easily set the speed of the motor.


For the application of the tool with a STEPCRAFT or a third-party router additional ER-collets are necessary. The ER collets are not included in the scope of delivery.

Due to the flexible operation of the milling spindle with CNC routers from various brands, the spindle control signals can be switched between analog and digital as well as between 5 V and 10 V PWM-signal.

For a comparative overview of all our milling motors please click here.

Technical Specifications:

• Collet clamping diameter: max. 8,0 mm
• Type of collet: ER11
• Housing: Aluminum 7075, anodized
• Housing diameter: 52 mm
• Milling motor height: 130 mm
• Type of motor: Three phase asynchronous motor
• Number of motor poles: 14
• Direction of rotation: Clockwise
• Range of speeds: 1.000 - 25.000 rpm
• Voltage (max.): 24 V
• Current (max.): 14,6A / 20,8A
• Shaft diameter 43 mm
• Input power: 500W
• Output power: 425 W
• Type of bearing and quantity: Ball bearing, steel, service-life grease lubrication, 3 pc.
• Concentricity accuracy within collet:: < 0,01 mm
• Clamping mechanism: Manually, ER collet, shaft lock button
• Cooling: Labyrinth air cooling
• Sound level: 70 db
• Weight: 650 g

Scope of Delivery:

• Spindle HF-500 v2
• Control unit
• D-Sub 15 cable
• Open end wrench SW17
• Clamping nut ER11
• Operation manual

Support:

• Operating and Safety Instructions
