- industrial grade
- DGUSII kernel product
- wide temperature
- capacitive touch panel
Features:

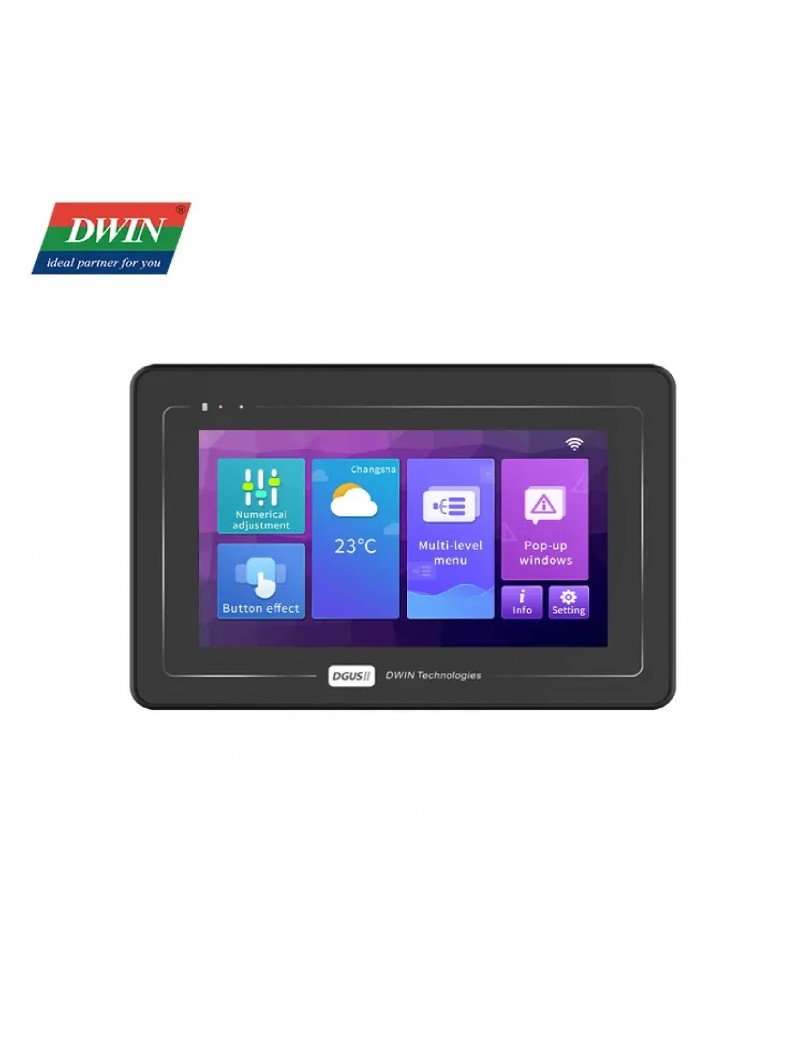

● Based on T5L2, running DGUS II system, industrial grade.
● 7.0-inch, 1024*600 pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle.
● RS232/RS485 Interface,8Pin_3.81mm Socket*1，(WTC has CAN bus interface *1;)
● Touch Option: Resistive/Capacitive;
● 16/32MBytes NOR Flash, expandable to 64Mbytes NOR Flash;
● Onboard speaker. Power: 2W;
● Protective Level:IP65(front);
| LCM interface | FPC50_0.5mm, RGB interface |
| TP interface | Capacitive touch panel: COB structure, IIC interface |
| Resistive touch panel: FPC4_1.0mm | |
| User interface | 8Pin_3.81mm socket for power supply andserial communication. Download rate(typical value): 12KByte/s |
| Flash | 32MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Expand Flash | Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash |
| Speaker | Onboard speaker. Power: 2W |
| RTC | DMG10600T070_A5WTC: button cell for power supply. Accuracy: ±20ppm @25℃ |
| DMG10600T070_A5WTR: super-capacitor for power supply. Accuracy: ±20ppm@25℃. It can work normally for 7 days after power failure | |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°(L/R/U/D) |
| Resolution | 1024×600 pixels (support 0°/90°/180°/270°) |
| Color | 24-bit 8R8G8B |
| Active Area (A.A.) | 154.20mm (W) ×85.88mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
| Brightness | DMG10600T070_A5WTC: 250nit |
| DMG10600T070_A5WTR: 250nit | |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Mode | UART2: RS232 UART4: RS485(WTC)/RS232(WTR) ,Only available after OS configuration UART5: RS232(WTC)/RS485(WTR) ,Only available after OS configuration (DMG10600T070_A5WTC with CAN*1,DMG10600T070_A5WTR without CAN) |
|||||
| RS232 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | - | -5.0 | -3.0 | V | ||
| Output 0 | 3.0 | 5.0 | - | V | ||
| Input 1 | -15.0 | -5.0 | - | V | ||
| Input 0 | - | 5.0 | 15.0 | V | ||
| RS232 Baud Rate |
3150~3225600bps, typical value of 115200bps | |||||
| RS485 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | 2.5 | 5.0 | - | V | ||
| Output 0 | - | -5.0 | -2.5 | V | ||
| Input 1 | 0 | 2.5 | - | V | ||
| Input 0 | - | -2.5 | -0.2 | V | ||
| RS485 Baud Rate |
3150~921600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (O Sconfiguration) UART5: N81/E81/O81/N82 ,4 modes (O Sconfiguration) |
|||||
| Interface Cable | 8Pin_3.81mm Socket；(WTC with CAN: 4Pin_3.81mm Socket) | |||||
| Rated Power | <5W | |||||
| Operating Voltage | 7~36V, typical value of 12V | |||||
| Operating Current | 260~320mA | VCC=12V, max backlight | ||||
| 100~150mA | VCC=12V, backlight off | |||||
| Recommended power supply: 12V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (12V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
| Conformal Coating | Yes | |||||
| Anti-UV | Yes | |||||
| Protective Level | IP65 (Front) | |||||
