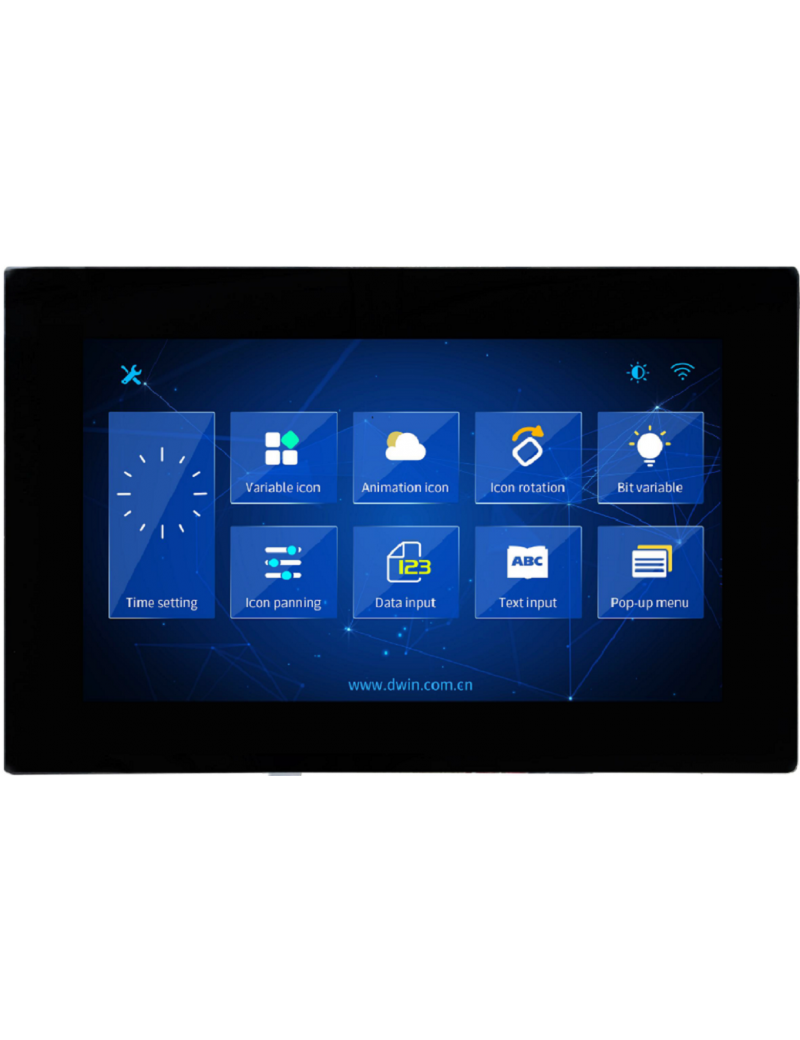

●  Powered by T5L2 ASIC, running DGUS II HMI platform, commercial-grade smart LCM;

●  15.6 inch, 1920*1080 resolution, IPS-TFT LCD, 2K HD smart screen;

●  TTL/RS232, 8Pin_2.0mm connection wire;

●  Download Ways : SD card or on-line serial port;

●  With onboard buzzer, RTC and speaker interface.

●  Integrated black TP appearance, LCD and TP full lamination process, reliable capacitivetouchpanel;

●  With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or C51



Specification



Model No.	DMG19108C156_05WTCZ02	Serial Mode	TTL/RS232*1
LCD Type	IPS	User Interface	8Pin_2.0mm
Resolution	1920×1080	Operating Voltage	12~36V
Color	16.7M	Operating Temperature	-10℃~60℃
Active Area	343.20mm×192.60mm	Storage Temperature	-20℃~60℃
LED Lifetime	>20,000 h	Conformal Coating	None
Brightness	50nit	Operating Humidity	10%~90%RH, typical value of 60% RH
