Features:

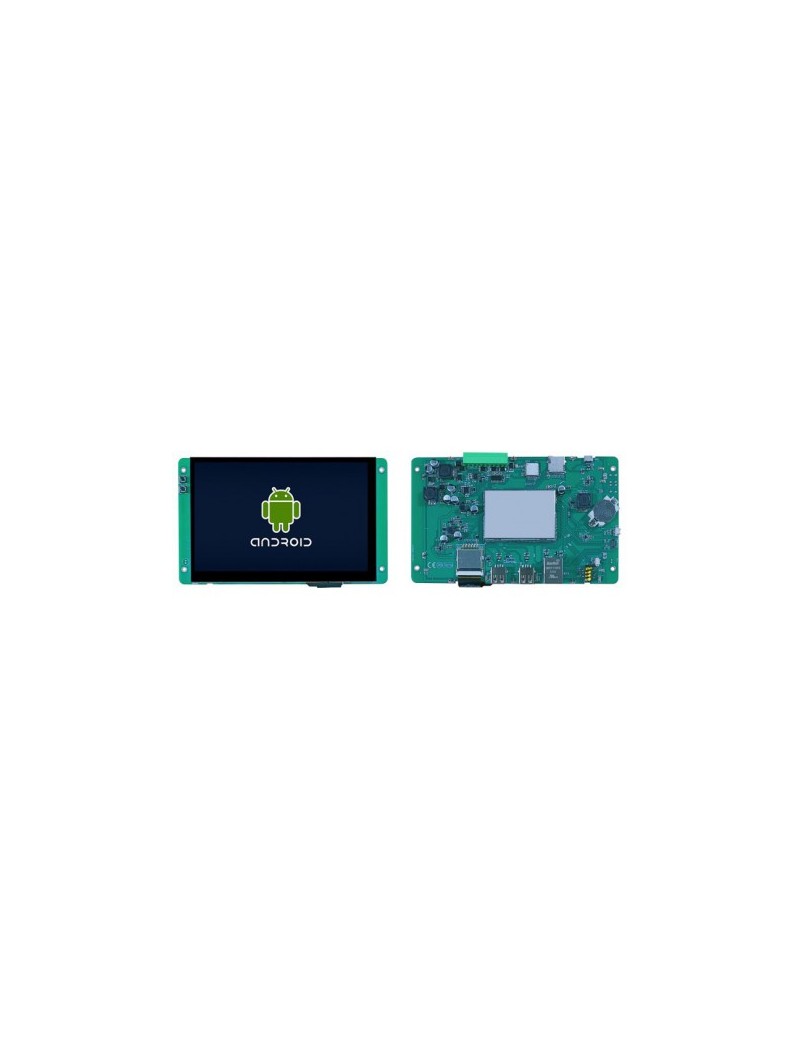

● Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.

● 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive touch.

● Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.

● Available for USB and SD card updates.

● Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet, browsing, music and video playback, data copy, etc.

● Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.

Specification

Master Control Parameters

Motherboard Level	Industrial
CPU	RK3566, Cortex-A55, quad-core
OS	Android 11
FLASH	8Gbytes EMMC
RAM	2Gbytes LPDDR4
Note: This model do not support using Google Play Store, if you need the Google Play Store version, please refer to the following models: DMG12800C070_32WTCZ03/ DMG12800T070_32WTCZ01/ DMG10600C101_32WTCZ01

Display Parameters

Color	16.7M(16777216)colors
Panel Type	IPS
Viewing Angle	85/85/85/85 (L/R/U/D)
Active Area (A.A.)	149.76mm (W)*93.60mm (H)
Visible Area (V.A.)	150.76mm (W)*94.60mm (H)
Resolution	1280*800 Pixel
Backlight	LED
Brightness	250nit

Voltage & Current

Power Voltage	7~23V
Operation Current	VCC = +12V, Backlight on, 310mA
	VCC = +12V, Backlight off, 140mA
Recommended power supply: 12V 0.5A DC

Reliability Test

Working Temperature	-20~70℃, 60%RH at 12V voltage
Storage Temperature	-30~80℃
Working Humidity	10%~90%RH
Protective Paint	Yes
ESD	Air discharge±8KV; Contact discharge±6KV
EFT	Group pulse interference ±2KV

Peripheral Interface

COM	UART5 & UART9
	UART8
	UART0
USB Interface	HOST*2,OTG*1
Headphone Interface	3.5mm spacing interface
Speaker Interface	2Pin_1.25mm interface
Microphone Interface	2Pin_1.25mm interface
Camera Interface	USB, Not supported by Mipi
SD Card Slot	Drawer type card slot(Max 64G)
Ethernet Interface	10/100Mbps
WIFI Module	IEEE 802.11Bb/g/n,2.4G,Bluetooth
RTC	Button cell for power supply. Accuracy: ±20ppm @25℃

Interface Parameters

Baud Rate	2400~230440bps, typical value: 115200bps
Output Voltage (TXD)	Output 1: -5.0V
	Output 0: 5.0V
Input Voltage (RXD)	Input 1: -5.0V
	Input 0: 5.0V
Baud Rate	2400~921600bps, typical value: 115200bps
(V_AB)	Output 1: 2.5~5V
	Output 0: -5~-2.5V
(V_AB)	Input 1: 0~2.5V
	Input 0: -2.5~-0.2V
Interface	Support TTL/COMS,RS232 or RS485 level
Socket	10Pin_3.81mm Socket
