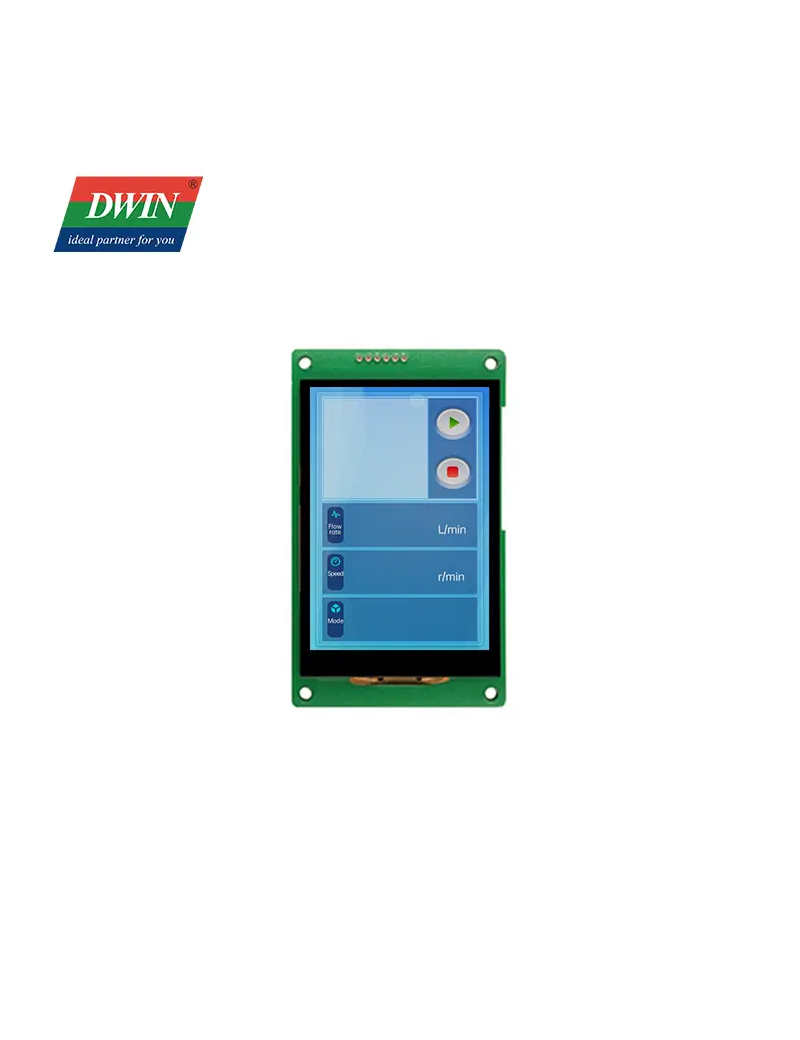

3.5 inch smart LCM DMG48320C035_03WTR
29,90 €
- Commercial Grade
- basic type
- wide temperature
- resistive touch panel
Features:
● Self-designed T5L ASIC, 16.7M Colors, 24bit,320*480 Pixel,G+G structure ;
● Without touch screen/Resistive touch screen/Capacitive touch screen ;
● TTL/CMOS;10Pin_1.0mm;
● Download via SD card or on-line serial port;
● It is very easy to use the DWIN DGUS V7.6 GUIs Development, no coding skills required;
●Two Development System: DGUS II/ TA(Instruction set);
● IPS wide viewing angle: 85°/85°/85°/85° (L/R/U/D) ;
Specification
| T5L1 ASIC | Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
| LCM interface | FPC40_0.5mm, RGB interface |
| TP interface | Capacitive touch: IIC interface |
| Resistive touch: 4Pin_1.0mm interface | |
| User interface | 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface | Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle,85°/85°/85°/85°(L/R/U/D) |
| Resolution | 320×480 pixels (0°/90°/180°/270°) |
| Color | 24-bit 8R8G8B |
| Active Area (A.A.) | 49.0mm (W)×73.4mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness | DMG48320C035_03WTC: 250nit |
| DMG48320C035_03WTR: 250nit | |
| DMG48320C035_03WN: 300nit | |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Type | CTP (Capacitive touch panel) |
| Structure | G+G structure with surface cover of tempered glass |
| Touch Mode | Single point touch, support continuous sliding touch |
| Surface Hardness | 6H |
| Light Transmittance | Over 90% |
| Life | Over 1,000,000 times touch |
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Touch Mode | Single point touch, support continuous sliding touch |
| Surface Hardness | 3H |
| Light Transmittance | Over 80% |
| Life | Over 1,000,000 times touch |
| Mode | UART2: TTL/CMOS UART4: TTL/CMOS (Only available after OS configuration) |
|||||
| Voltage Level | Test Condition | Min | Typ | Max | Unit | |
| Output 1, Iout = 1mA | 3.0 | 3.3 | - | V | ||
| Output 0, Iout = -1mA | - | 0 | 0.3 | V | ||
| Input 1, Iin = 1mA | 2.4 | 3.3 | 5.0 | V | ||
| Input 0, Iin = -1mA | 0 | - | 0.5 | V | ||
| Baud Rate | 3150~3225600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration) |
|||||
| Interface Cable | 10Pin_1.0mm | |||||
| Rated Power | <5W | |||||
| Operating Voltage | 4.5~5.5V, typical value of 5V | |||||
| Operating Current | 180mA | VCC=5V, max backlight | ||||
| 80mA | VCC=5V, backlight off | |||||
| Recommended power supply: 5V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (5V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Conformal Coating | None | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
DWIN-DMG48320C035_03WTR
Riferimenti Specifici
- Commercial Grade
- basic type
- wide temperature
- resistive touch panel
