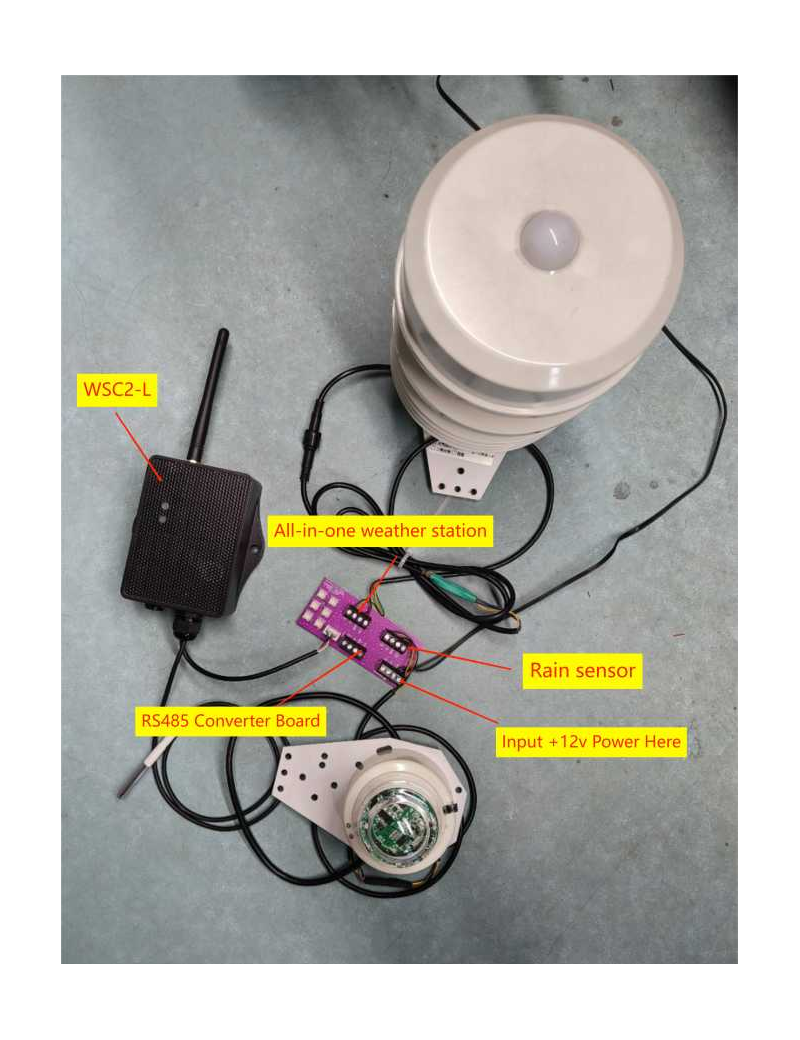

Dragino WSC2-L Weather Station Kit is designed for measuring atmospheric conditions to provide information for weather forecasts and to study the weather and climate. The Weather Station Kit includes a LoRaWAN transmitter WSC2-L, a 9 in 1 Weather Station WSS-09 and a Rain Gauge WSS-08.

The 9 in 1 weather station kit can measure below values: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure, Illumination, PM2.5, PM10 & Noise. The LoRaWAN transmitter use RS485 interface to communicate with the 9 in 1 weather station. It can also connect 3rd party RS485 sensors to measure more environment data. It also has a pulse counting input which can be used to connect tipping bucket Rain Gauge.

WSC2-L is full compatible with LoRaWAN Class A protocol, it can work with standard LoRaWAN gateway.

1.2 Features

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Built-in sensors: Wind Speed, Wind Direction, Temperature,  Humidity, Air Pressure, Illumination, PM2.5, PM10 & Noise
• RS485 Interface for 3rd Sensors
• Support tipping bucket Rain Gauge
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update rmware
• AT Commands to change parameters
• Downlink to change configure
• IP66 Waterproof Enclosure
• 1000mAh Rechargeable Lion Battery
• Input and Recharge power: 12v

1.3 Specification

Wind Speed:

• Range: 0~60m/s
• Accuracy: ±(0.2m/s±0.02*v)(v : the wind speed)
• Ultrasonic measurement,no start wind strength needed

Wind Direction:

• Range: 0~3599
• Accuracy: +3°
• Ultrasonic measurement,no start wind strength needed
• Built-in electronic compass. No need to consider installation direction

Temperature:

• Range: -40°C ~ +80°C
• Accuracy: +0.5°C

Humidity:

• Range: 0 ~ 99% RH
• Accuracy Tolerance : Typ +3% RH

Air Pressure:

• Accuracy: ±0.15kPa@25°C 101kPa
• Range: 0~120kPa

Noise:

• Range: 30dB~120dB
• Accuracy: +0.5dB

PM2.5:

• Range: 0~1000ug/m3
• Accuracy: ±3%FS
• Resolution: 1ug/m3

PM10:

• Range: 0~1000ug/m3
• Accuracy: +3%FS
• Resolution: 1ug/m3

llumination:

• Range: 0~200k Lux
• Accuracy: +7%(25 °C)

Package Content:

* WSC2-L Transmiter

* 9 in 1 Weather Sensor
