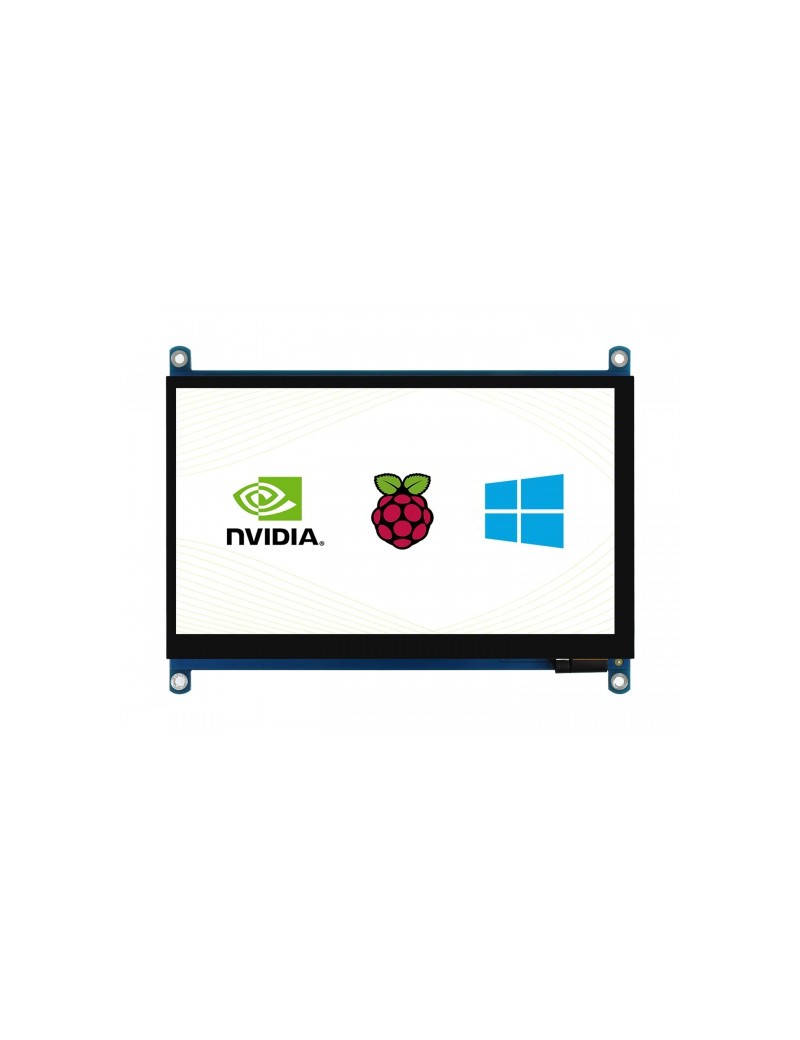

7inch QLED Quantum Dot Display, Capacitive Touch
Write your review
98,82 €
Tasse incluse
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Game Console
Xbox360, PS4, Switch...
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display
QLED Panel
QLED Quantum Dot Technology
Wider Color Gamut
Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation
Touch Control
1) up to 5-point touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.
Backlight Control
The Backlight Brightness Is Adjustable Via Software
Enjoy Gaming
* audio output via earphone/speaker port.
Demystifying Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
- Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
- Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
- OSD menu config buttons for adjusting backlight (via software) and display color
- DC-DC LCD driver circuit, low heating on long term operation
Appearance And Dimensions
VM-18625
