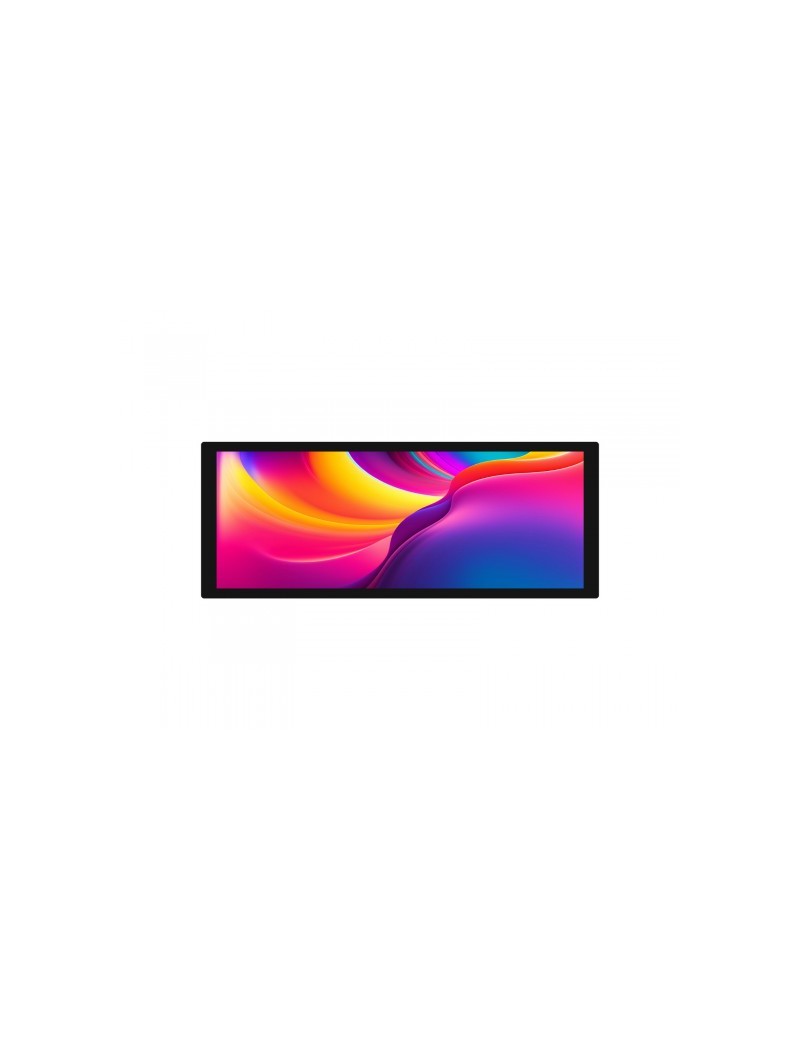

9.3inch Capacitive Touch Display, High Brightness, 1600×600

134,20 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

9.3″ Touch Display

High Resolution | Multi-Point Touch | Full Color


    • SizeDimension.png9.3″
    • ResolutionResolution.png1600×600
    • Display InterfaceHDMI2.pngHDMI
    • Display PanelIPS.pngIPS
    • Viewing AngleViewing_angle.png178°
    • Touch TypeCapacitive_touch.pngCapacitive
    • Touch PointsTen_touch.png10-Point
    • Touch PortType_C.pngUSB Type-C
    • Touch PanelTempered_panel.pngToughened Glass
    • Touch Panel TechFull-Fit.pngOptical Bonding
  • OSD MenuOSD.pngBrightness/Contrast
  • BrightnessBacklight-1line.pngSupports DCC/CI
    control
  • BrightnessBrightness.png800cd/m²
  • Audio Output 13.5mm-Audio.png3.5mm Jack
  • Audio Output 24PIN.png4PIN Header

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

Working With Raspberry Pi 4B


Working With Raspberry Pi 3B+


Working With Raspberry Pi Zero 2 W


You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano


Working With PC

for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment
Interface Introduction
Product Show

Dimensions



Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order
