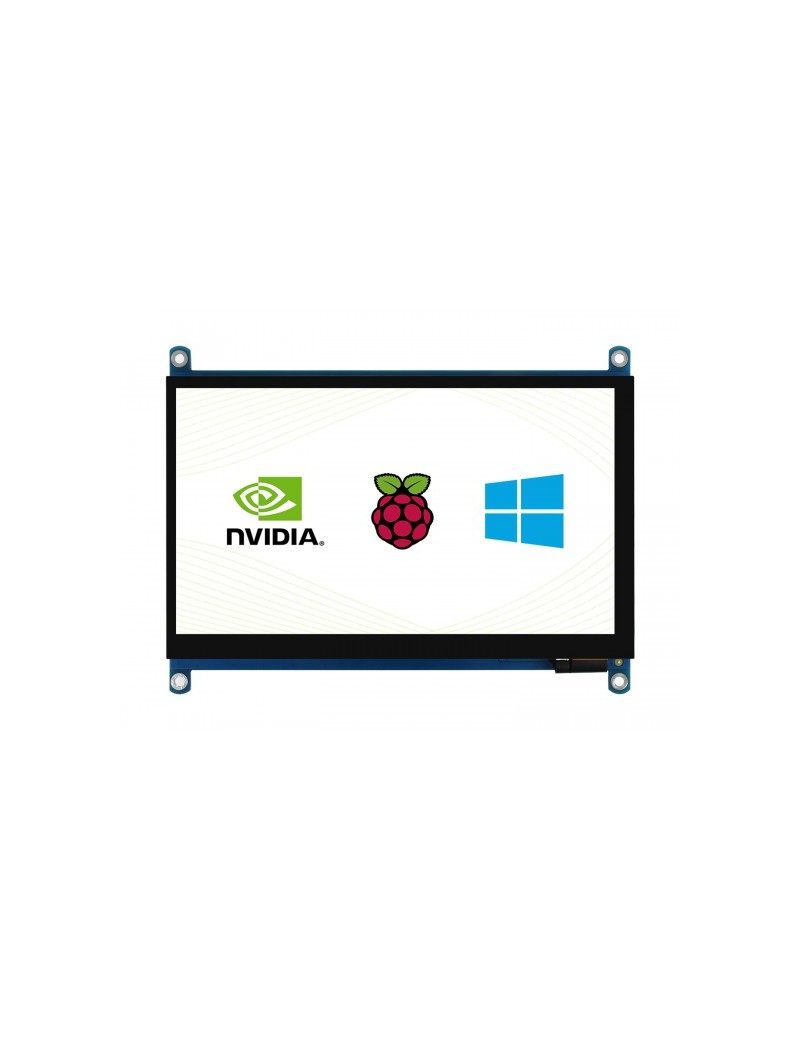

7 Inch Touch Screen for Raspberry Pi

98,82 €
Tasse incluse

7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600

Quantità
Add to Compare
Add to Wishlist

7" QLED Quantum Dot Display
    • SizeDimension.png7"
    • ResolutionResolution.png1024×600
    • Display InterfaceHDMI2.pngHDMI
    • Display PanelIPS.pngIPS
    • Viewing AngleViewing_angle.png170°
    • BacklightQLED.pngQLED Quantum Dot
    • Touch TypeCapacitive_touch.pngCapacitive
    • Touch PointsFive_touch.png5-point
    • Touch PortMicro_USB.pngUSB
    • Touch PanelTempered_panel.pngG+G Toughened Glass
  • OSD MenuOSD.pngBrightness/Contrast
  • Audio Output13.5mm-Audio.png3.5mm Jack
  • Audio Output24PIN.png4PIN Header
  • GamingGame_host.pngXbox360/PS4/Switch
Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Game Console
Xbox360, PS4, Switch...
Connection Examples

Working With Raspberry Pi 4


Working With Raspberry Pi 3B+


Working With Raspberry Pi Zero W


Working With AI Computer Jetson Nano


Working With Mini PC

Display

QLED Panel

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%


More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid


Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Touch Control
Touch-Screen-Top-C5T.jpg Touch-Screen.jpg

1) up to 5-point touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.

Backlight Control

The Backlight Brightness Is Adjustable Via Software

Enjoy Gaming
Game-Player-Top1.jpg Game-Player.jpg

* audio output via earphone/speaker port.

Demystifying Design Details
  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
  5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
  7. OSD menu config buttons for adjusting backlight (via software) and display color
  8. DC-DC LCD driver circuit, low heating on long term operation
Appearance And Dimensions
Resources & Services
Wiki: 7HP-CAPQLED
PACKAGE CONTENT:

Weight: 0.428 kg

  1. 7HP-CAPQLED x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. RPi screws pack (4pcs) x 1
