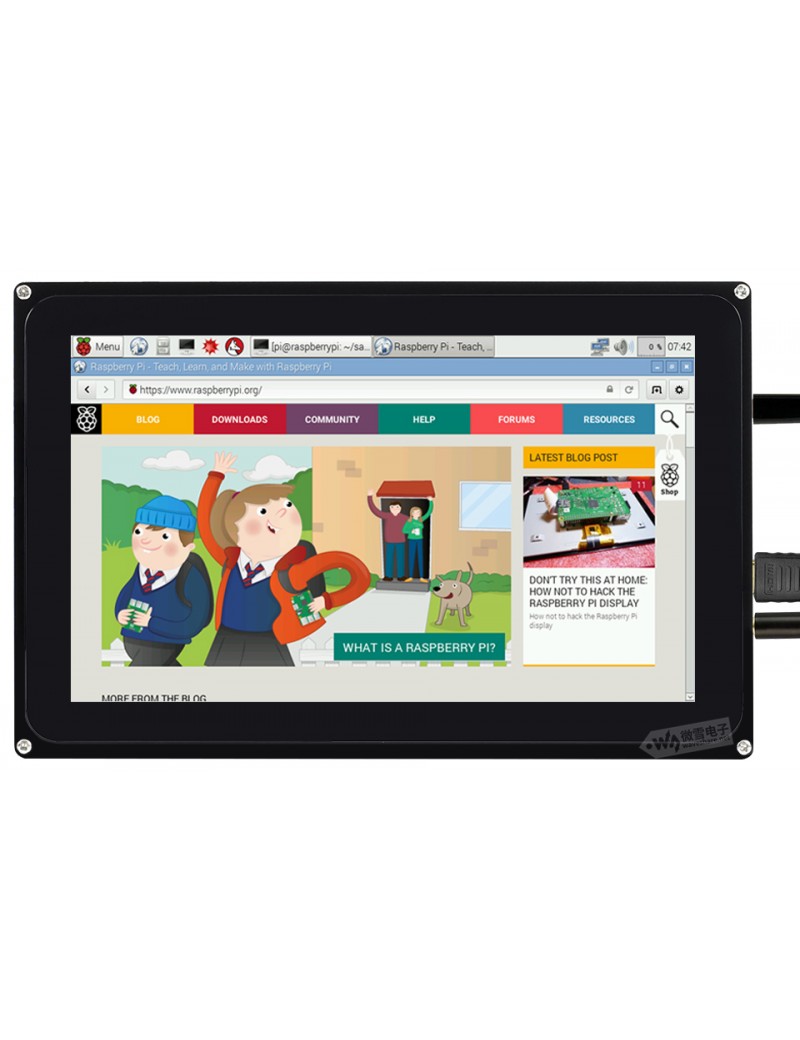

10.1inch HDMI LCD (H) (with case), 1024x600
  • 10.1inch HDMI LCD (H) (with case), 1024x600

10.1inch HDMI LCD (H) (with case), 1024x600

122,13 €

1024x600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

Quantità

Comes with US plug power adapter. More options for the power plug: USEUUK

1024x600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

The LCD and Control Board

  • 1024x600 hardware resolution
  • Capacitive touch control
  • Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu, single touch, and driver free
    • When works with BB Black, Angstrom image is provided
    • When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
  • Multi video input interfaces: HDMI, VGA, and AV(CVBS)
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • Supports 100-level backlight adjustment
  • Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

  • Material : high quality clear Acrylic
  • Comes with bottom holder, 45° tilt angle
  • Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, and BB Black

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Photos

10.1inch-HDMI-LCD-with-Holder-1_160.jpg10.1inch-HDMI-LCD-with-Holder-2_160.jpg10.1inch-HDMI-LCD-with-Holder-3_160.jpg10.1inch-HDMI-LCD-with-Holder-4_160.jpg10.1inch-HDMI-LCD-with-Holder-5_160.jpg10.1inch-HDMI-LCD-with-Holder-6_160.jpg10.1inch-HDMI-LCD-with-Holder-7_160.jpg10.1inch-HDMI-LCD-with-Holder-8_160.jpg10.1inch-HDMI-LCD-with-Holder-9_160.jpg10.1inch-HDMI-LCD-with-Holder-10_160.jpg10.1inch-HDMI-LCD-with-Holder-11_160.jpg10.1inch-HDMI-LCD-with-Holder-12_160.jpg

Note: Raspberry Pi in the photos is NOT included.

External Dimension

10.1inch-HDMI-LCD-with-Holder-dimension

Development Resources

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Anti-Piracy

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy
