1200x825, 9.7inch E-Ink display HAT for Raspberry Pi
Write your review
213,74 €
Tasse incluse
DESCRIPTION

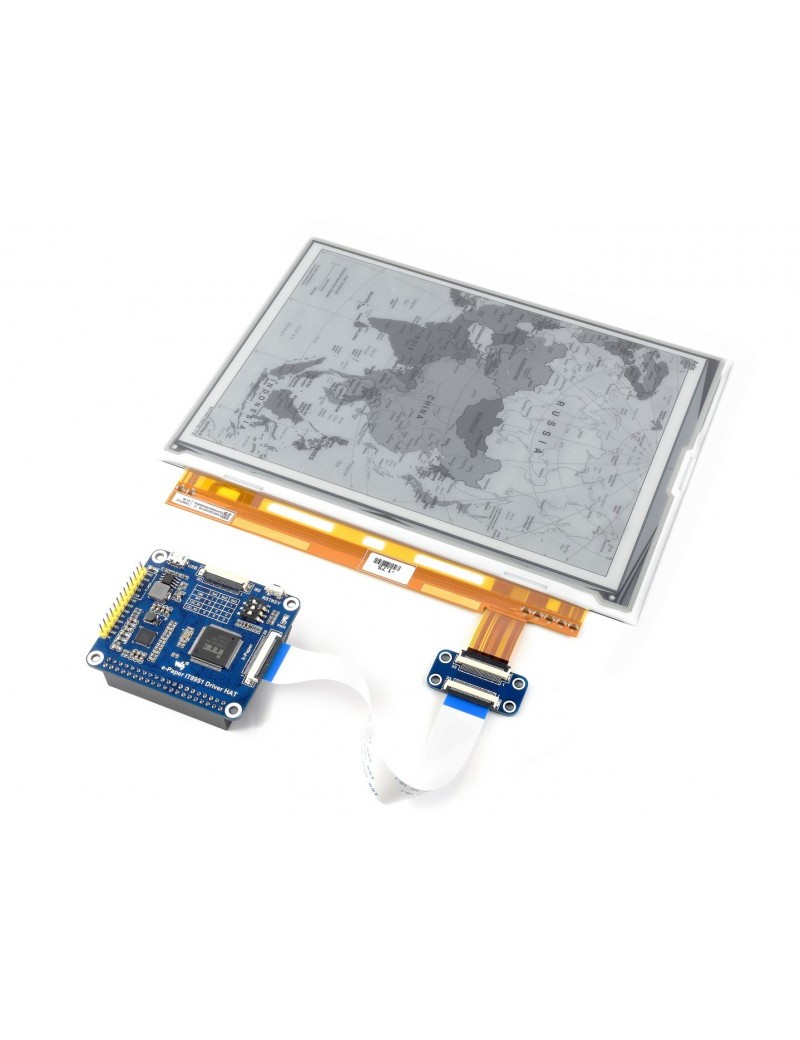

1200x825, 9.7inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface
Overview
This is an E-Ink display HAT for Raspberry Pi, 9.7inch, 1200x825 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
- Operating voltage: 5V
- Interface: USB/SPI/I80/I2C
- Outline dimension: 218.8mm × 156.425mm × 1.15mm
- Display size: 202.8mm × 139.425mm
- Dot pitch: 0.169 × 0.169
- Resolution: 1200 × 825
- Display color: black, white
- Gray scale: 2-16 (1-4 bit)
- Full refresh time: <1s
- Total refresh power: 0.6W(typ.)
- Total standby power: 0.3W(typ.)
- Viewing angle: >170°
SPI Pinouts
SYMBOL | DESCRIPTION |
---|---|
5V | Power input |
GND | Ground |
MISO | SPI MISO pin |
MOSI | SPI MOSI pin |
SCK | SPI SCK pin |
CS | SPI chip selection, low active |
RST | External reset, low active |
HRDY | Busy status output, low active |

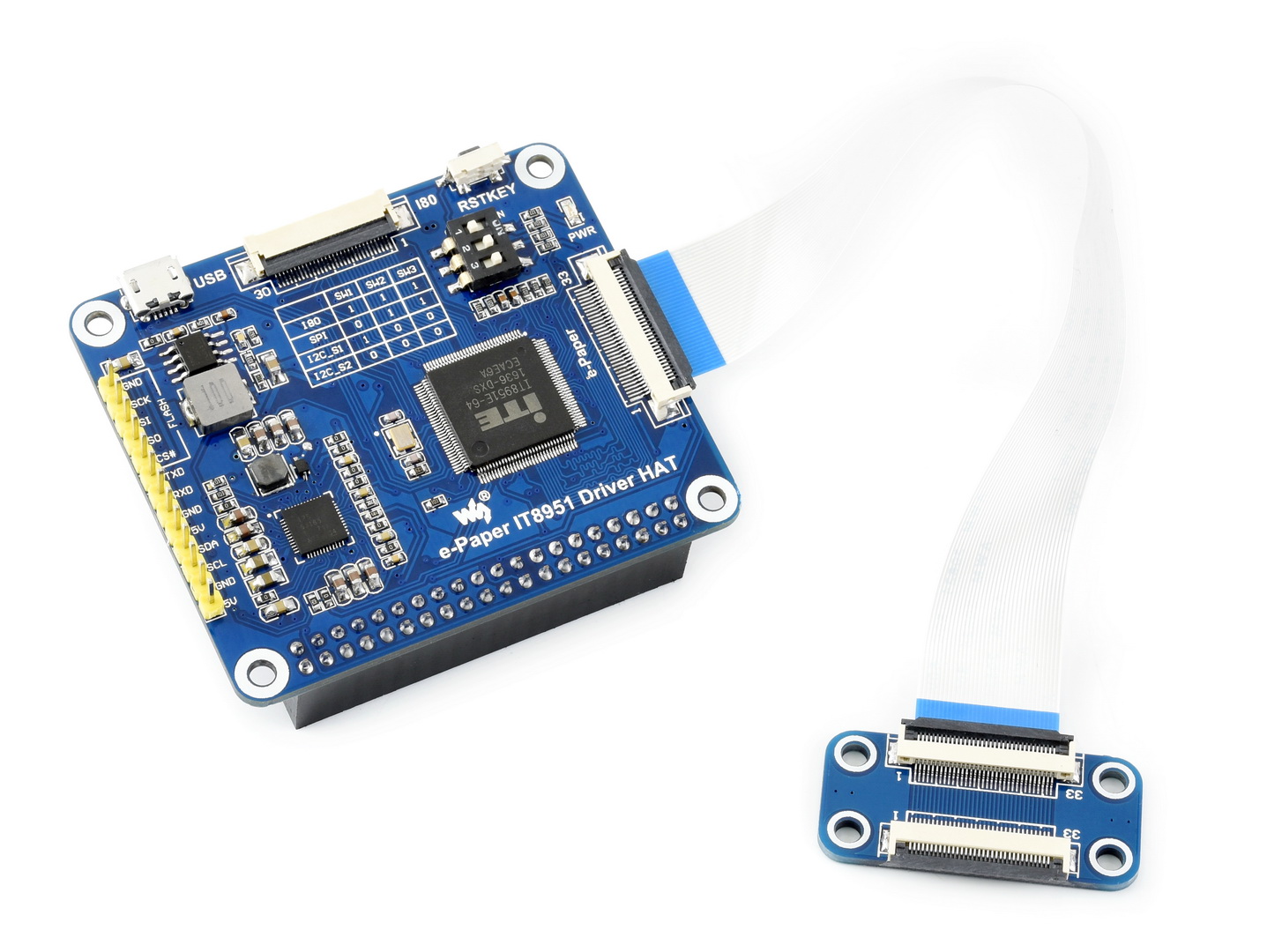

e-Paper IT8951 Driver HAT Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/9.7inch_e-Paper_HAT
Weight: 0.13 kg
