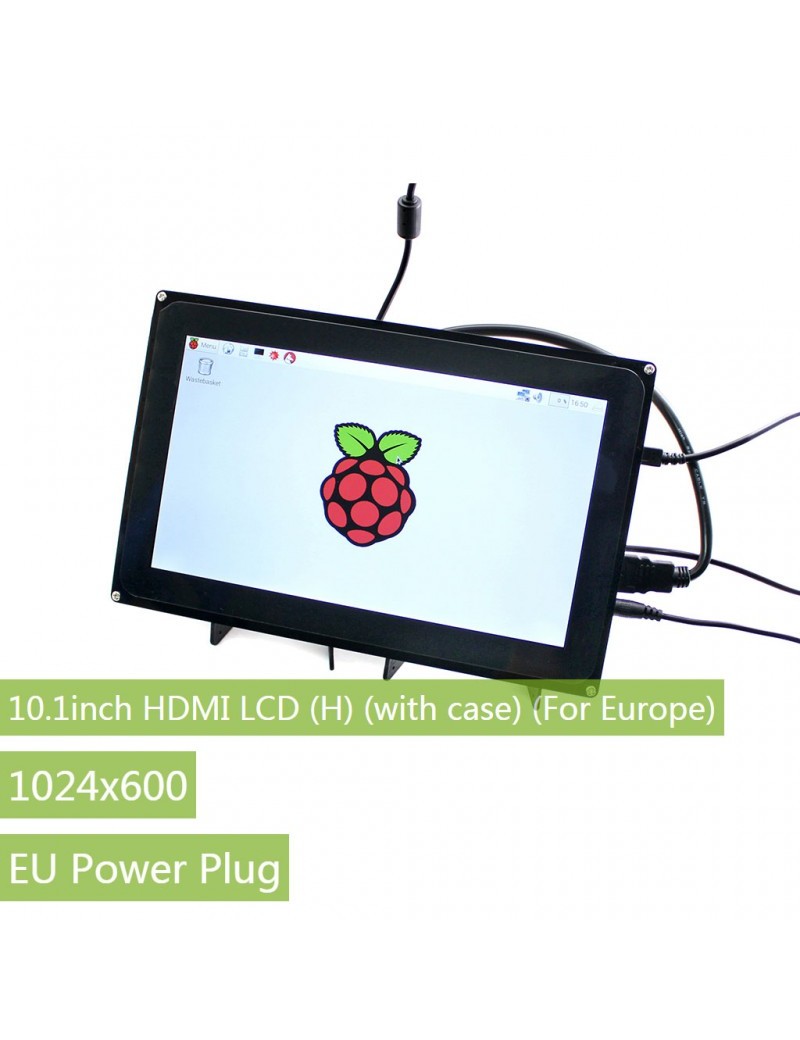

General Driver board...10.1inch HDMI LCD (H) (with case) (For Europe), 1024x600
1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces, Comes with EU plug power adapter
DESCRIPTION
The LCD and Control Board
- 1024×600 high resolution
- Capacitive touch control
- When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
- Supports BB Black, comes with Angstrom image
- Multi video input interfaces: HDMI, VGA, and AV(CVBS)
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- Supports 100-level backlight adjustment
- Firmware is upgradable to support more new features (continually updated)
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
The Case
- Material : high quality clear Acrylic
- Comes with bottom holder, 45° tilt angle
- Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, and BB Black
Using with Game Consoles
Part Number | Microsoft XBOX | Sony PS4 | Nintendo Switch | |||
---|---|---|---|---|---|---|
Display | Sound | Display | Sound | Display | Sound | |
3.5inch HDMI LCD | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (G) | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | √ | × | √ | × | √ | × |
7inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | √ | × | √ | × | √ | × |
10.1inch HDMI LCD (B) | × | × | × | × | √ | × |
10.1inch HDMI LCD (D) | √ | √ | × | × | √ | √ |
10.1inch HDMI LCD (H) | √ | √ | × | × | √ | √ |
13.3inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
Note:
- Limited by the game console OS, the touch function is unavailable.
- Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.
Photos
Note: Raspberry Pi in the photos is NOT included.
External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)
-
Weight: 0.949 kg
For the power adapter, different types of plugs are available, please select the one compatible with your outlet: US, EU
- 10.1inch Capacitive Touch LCD (D) x 1
- HDMI LCD control board x 1
- HDMI cable x 1
- USB type A plug to micro B plug cable x 1
- 40-pin FFC x 1
- Case for 10.1inch LCD × 1
- Screws pack x 1
- Bottom holder x 2
- Power adapter EU standard ×1

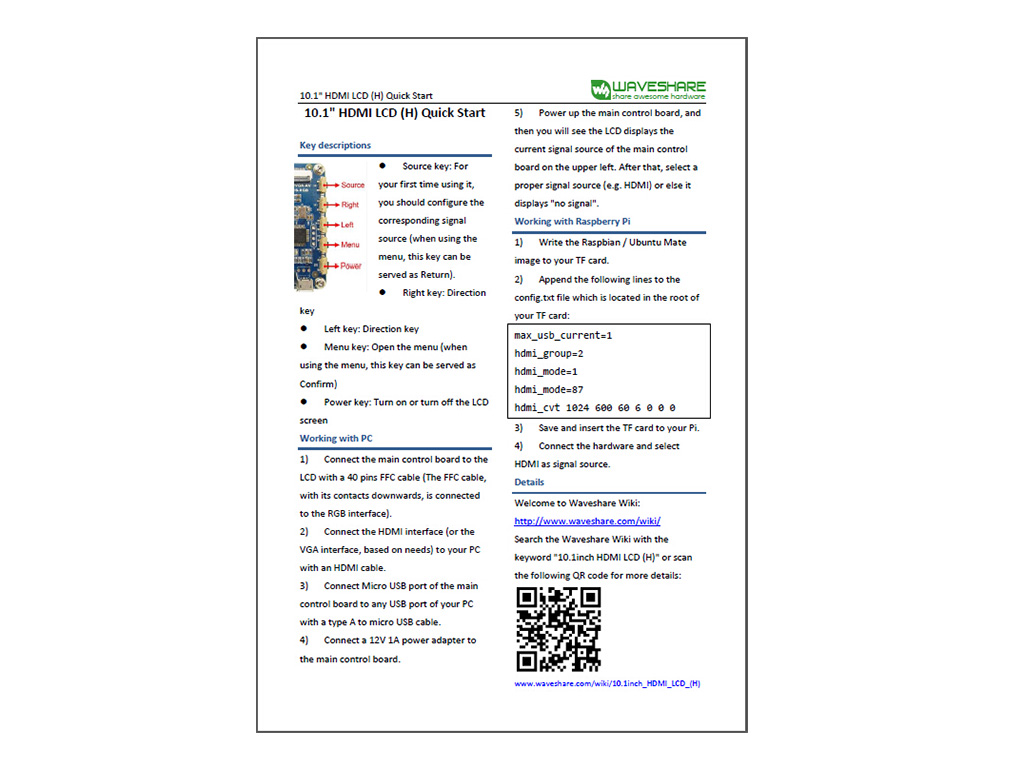

- Quick start sheet x1
