128x128, General 1.5inch RGB OLED display Module, 16-bit high color
Write your review
17,89 €
1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
Overview

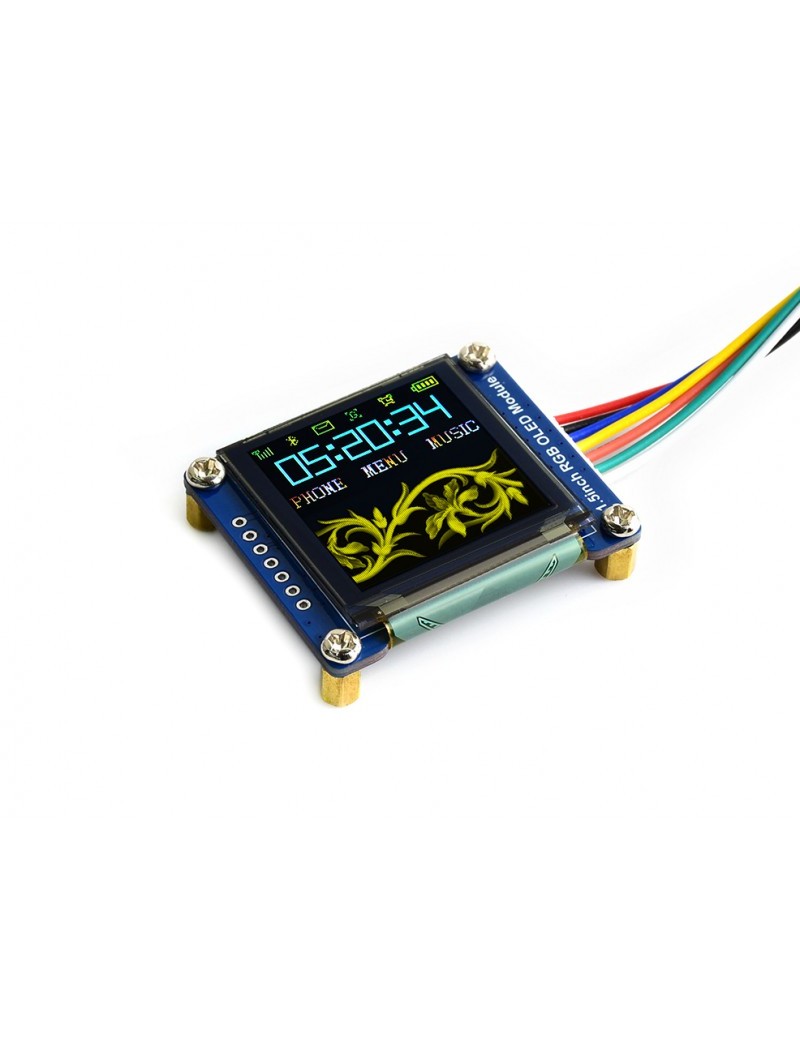

This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features
- 128x128 high resolution, 65K colors, clearly displays colorful images
- Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: SSD1351
- Interface: 4-wire SPI, 3-wire SPI
- Display color: RGB, 65K colors
- Resolution: 128x128
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 44.5 x 37 (mm)
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| DIN | Data input |
| CLK | Clock data input |
| CS | Chip selection, low active |
| DC | 4-wire SPI: Data/Command selection (high for data, low for command) 3-wire SPI: Connects to GND, keeps low |
| RST | Reset, low active |
There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:
| BS | DC | |
|---|---|---|
| 4-wire SPI | 0 | DC |
| 3-wire SPI | 1 | Connects to GND |

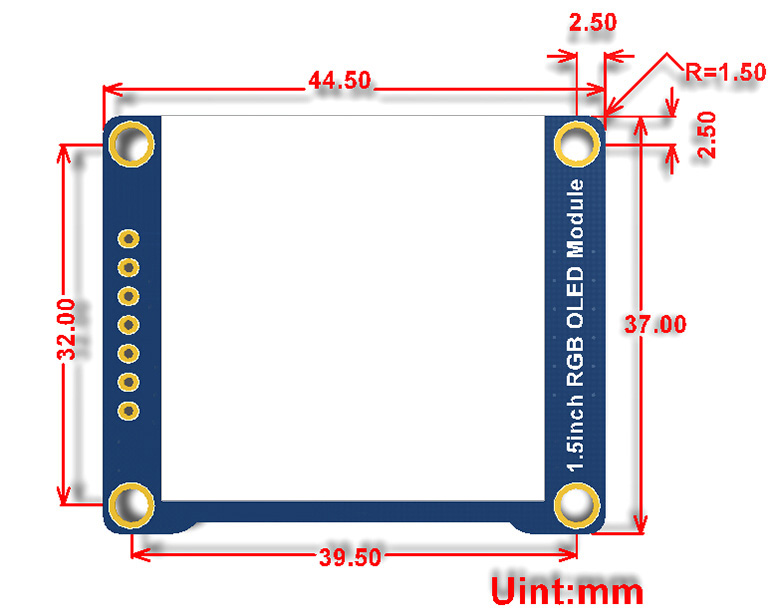

Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.5inch_RGB_OLED_Module
-
Weight: 0.02 kg
- 1.5inch RGB OLED Module x1
- PH2.0 7Pin x1
1
2
VM-14747
1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
