INTRODUCTION

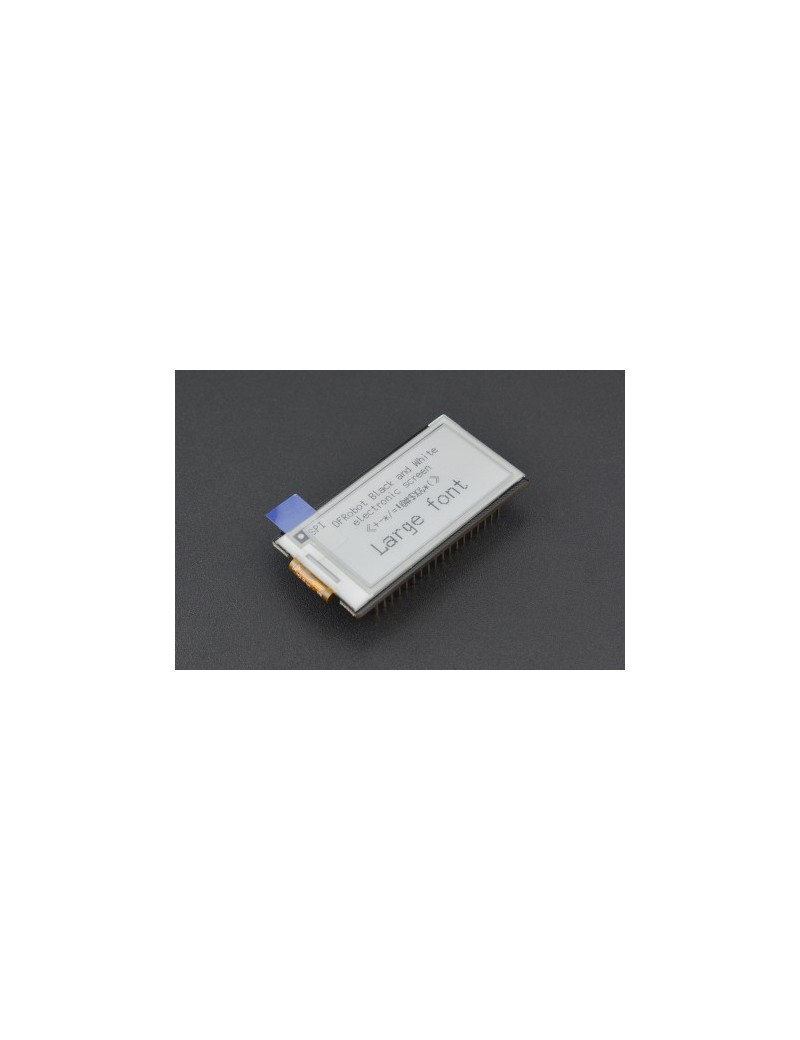

DFRobot FireBeetle Series is a low power development component designed for Internet of Things (IoT). This 2.13-inch black and white electronic epaper screen with SPI interface and 250 * 122 resolution, supporting Arduino library and microPython programming. This module is suitable for the current main control board of Firebeetle series. It has the characteristics of small size, compact layout, plug and play, low power consumption and good display effect. It also integrates the GT30L24A3W multi-language font chip, but only suitable for static picture or text display, not suitable for dynamic refresh.

Note: This board is only available for ESP32 and ESP8266, but not for FireBeetle BLE4.1

SPECIFICATION

Input Voltage: 3.3V Ink Screen GDE0213B1 Dimension: 59.2 x 29.2 x 1.05mm/2.33 x 1.15 x 0.04in Screen Size: 48.55 x 23.80mm/1.19 x 0.94in Resolution: 250 x 122 Data Bus: SPI Color: Black and white Refresh Time: takes about 4 seconds to fully refresh,0.5 seconds to partly refresh. Refresh Consumption: 26.4mW Font Chip GT30L24A3W Character Set:
        GB18030 Simplified Chinese/Traditional Chinese
        KSC5601 Korean
        JIS0208 Japanese
        180 Foreign Font
        Support for multinational Unicode
        IS08859 and CODE PAGE Chinese Character Size:12 dot matrix, 16dot matrix, 24dot matrix Foreign Character Size:16 dot matrix, 24 dot matrix Operating Current: 12mA

DOCUMENTS

Product wiki More Documents

SHIPPING LIST

FireBeetle Covers-ePaper Black&White Display Module x1
