7" Diagonal - 1280x800 IPS HDMI/VGA/AV Display

120,78 €
Tasse incluse

1280x800 IPS HDMI/VGA/AV Display

Quantità

This 7" Diagonal - 1280x800 IPS HDMI/VGA/AV Display is discontinued now. We recommend you other Screens & Displays as a suitable replacement and hope you will find what you are interested in.

So you have a Raspberry Pi, a MK802 series or a Cubieboard? Cool. You hacked it and had it working as a mini pc? Cooler. But wait, a computer has a screen, literally. Why not try a beatutiful 7" diagonal-1280x800IPS HDMI/VGA/AV display? Connect a HDMI cable or  pluging in directly the MK802(shown in picture) can make it work quickly.

​A power adapter is needed for this cute monitor.It could be 5~24V(2A will be better). Whatsmore, the driver board can drive screens between 4.3" and 15", the singal will take the full screen when the resolution ratio is 1280X720. And if you still havn't got any friendly monitor for your project,just try it!

APPLICATIONS

  • Raspberry Pi/MK802/MK802IIIs/Cubieboard2 Display
  • Custom Embeded system based on Mini PC

SPECIFICATION

  • 7" screen
  • 5V~18V 2A Power Supply is needed
  • VGA/HDMI display while HDMI must be 50pin RGB or LVDS
  • Screens from 4.3" to 15" of 3.3V which use LVDS ports can be drived by the driver board
  • Five buttons for you to set your screen or reset
  • Raspberry Pi & MK802 & Cubieboard2 & PC display
  • External dimension:161.2x105.5mm ( 6.35x4.15")
  • Display dimension: 150.72X94.2mm(5.93x3.71")
  • Visual Angle:89/89/89/89(all angles)
  • Scan frequency:  60Hz
  • Illuminant kind:WLED
  • Resolution:1280x800
  • Panel brightness:400cd/m2

DOCUMENTS

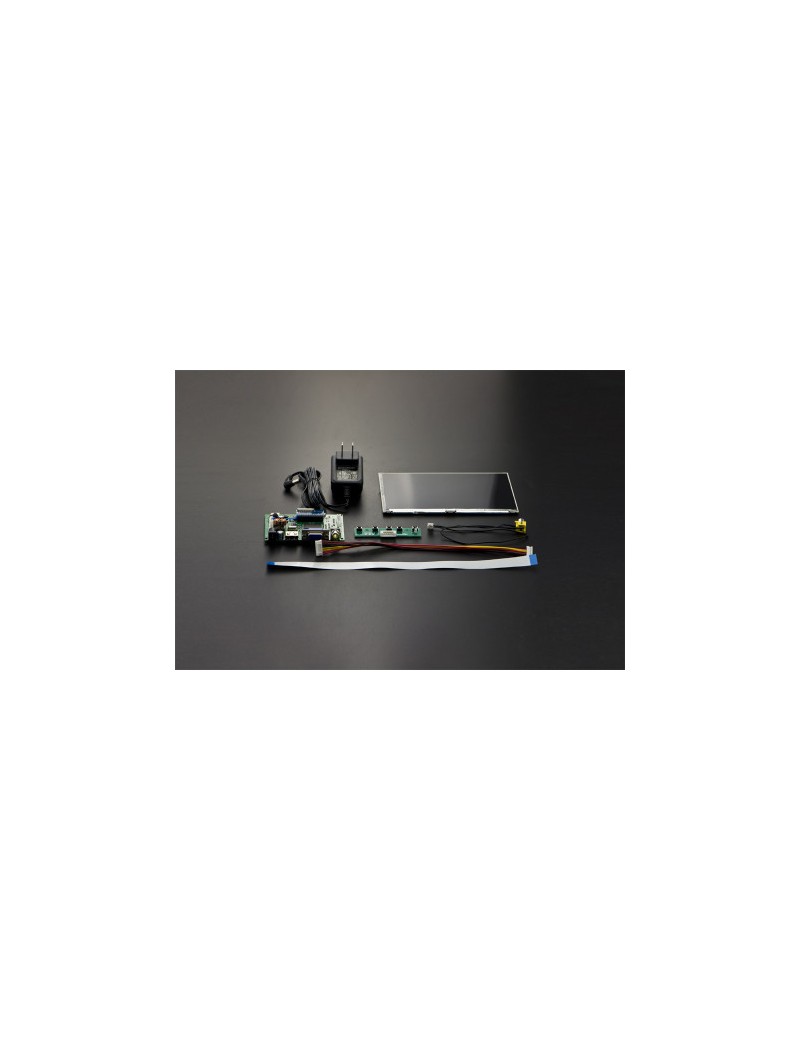

SHIPPING LIST

  • 7"screen   x1
  • multifunction board  x1
  • LVDS adapter and 30P FFD flat cable x1
  • 5 buttons board     x1
  • Wall Adapter Power Supply 7.5V DC 2A (American Standard)   x1

TUTORIAL

  • How To Make Your Own Untouchable Tablet / Pad
    How To  Make Your Own Untouchable Tablet / Pad
DF-FIT0326
