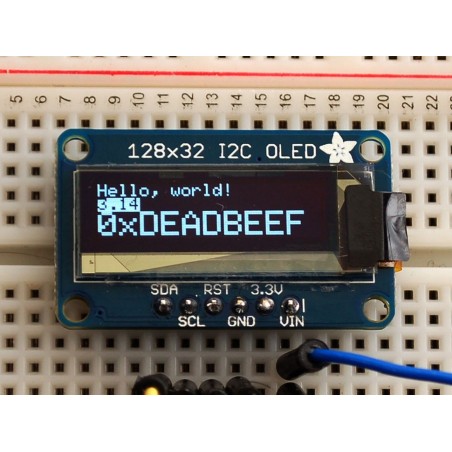

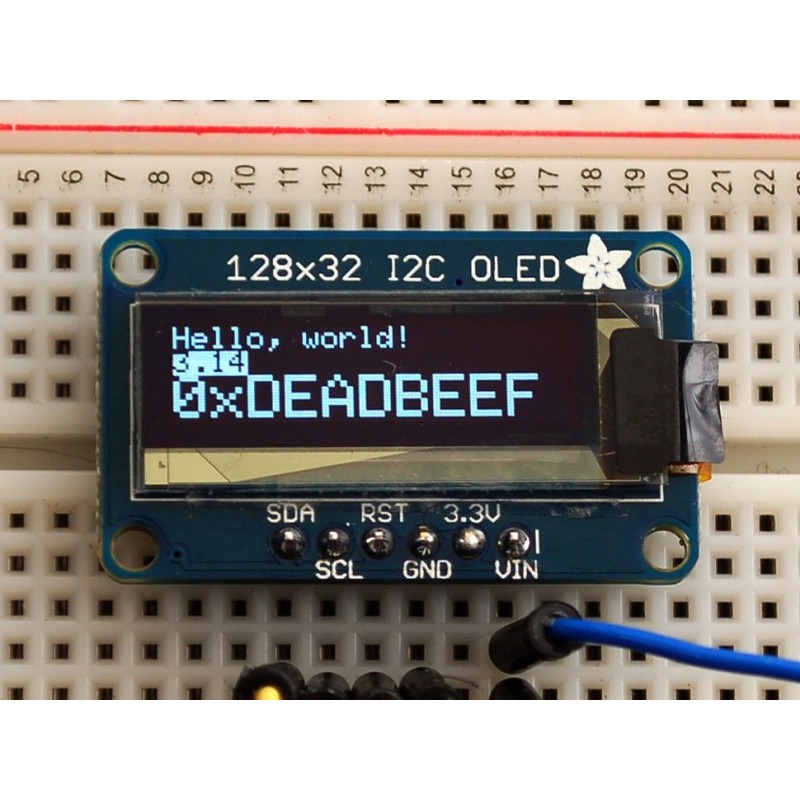

DimensionI:

• PCB: 20mm x 35mm (0.8" x 1.4")
• Display area: 7mm x 25mm
• Thickness: 4mm

Dettagli Lavoro:

• Diagonal Screen Size?0.91"
• Number of Pixels?128 × 32
• Color Depth?Monochrome (White)
• Module Construction?COG
• Module Size (mm)?46.30× 11.50 × 1.45
• Panel Size (mm)?30.00 × 11.50 × 1.45
• Active Area (mm)?22.384 × 5.584
• Pixel Pitch (mm)?0.175 × 0.175
• Pixel Size (mm)?0.159 × 0.159
• Duty?1/32
• Brightness ( cd/m2)?150 (Typ) @ 7.25V
• Interface?I2C
• Display current draw is completely dependent on your usage: each OLED LED draws current when on so the more pixels you have lit, the more current is used. They tend to draw ~15mA or so in practice but for precise numbers you must measure the current in your usage circuit.
• This board/chip uses I2C 7-bit address 0x3C & 0x3D, selectable with jumpers

OLED PCB files

• UG-2832HSWEG02 Datasheet
• SSD1306 Datasheet
