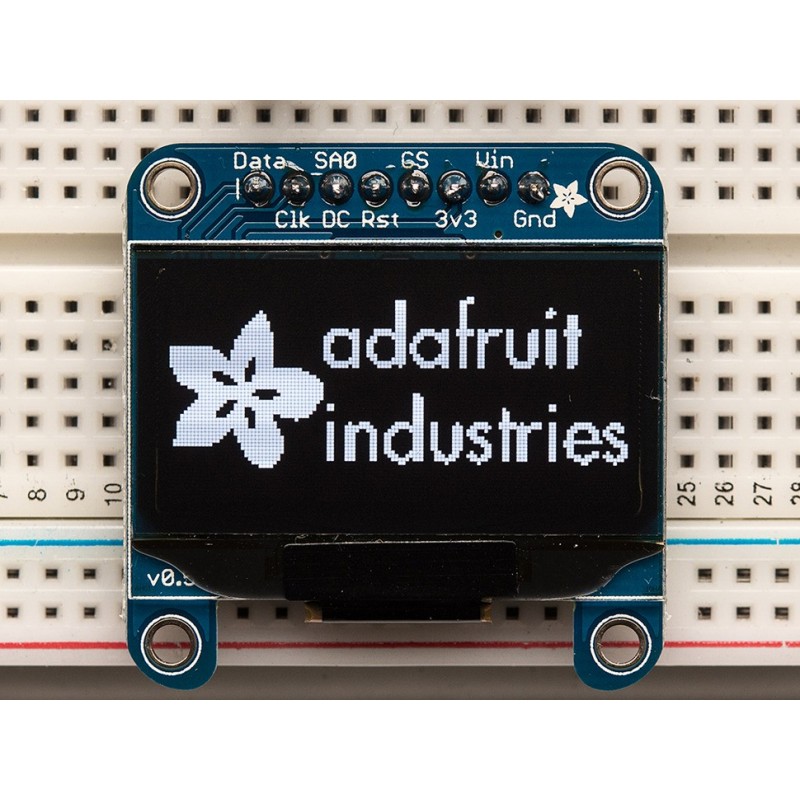

Dimensioni Breakout Board :

• PCB: 35mm x 35mm
• Screen: 35mm x 24mm
• Thickness: 5mm
• Weight: 8.5g
• This board/chip uses I2C 7-bit address between 0x3C-0x3D, selectable with jumpers

DETTAGLI DEL DISPLAY OLED

• Diagonal Screen Size?1.30"
• Number of Pixels?128 × 64
• Color Depth?Monochrome (White)
• Module Construction?COG
• Module Size (mm)?34.50 x 35.00
• Panel Size (mm)?34.50 x 23.00 x 1.45
• Active Area (mm)?29.420 x 14.70
• Pixel Pitch (mm)?0.23 x 0.23
• Pixel Size (mm)?0.21 x 0.21
• Weight (g)?2.18
• Duty?1/64
• Brightness ( cd/m2)?100 (Typ) @ 12V
  • UG-2864HSWEG01 Datasheet
  • UG-2864HSWEG01 User Guide
  • SSD1306 Datasheet
