Overview

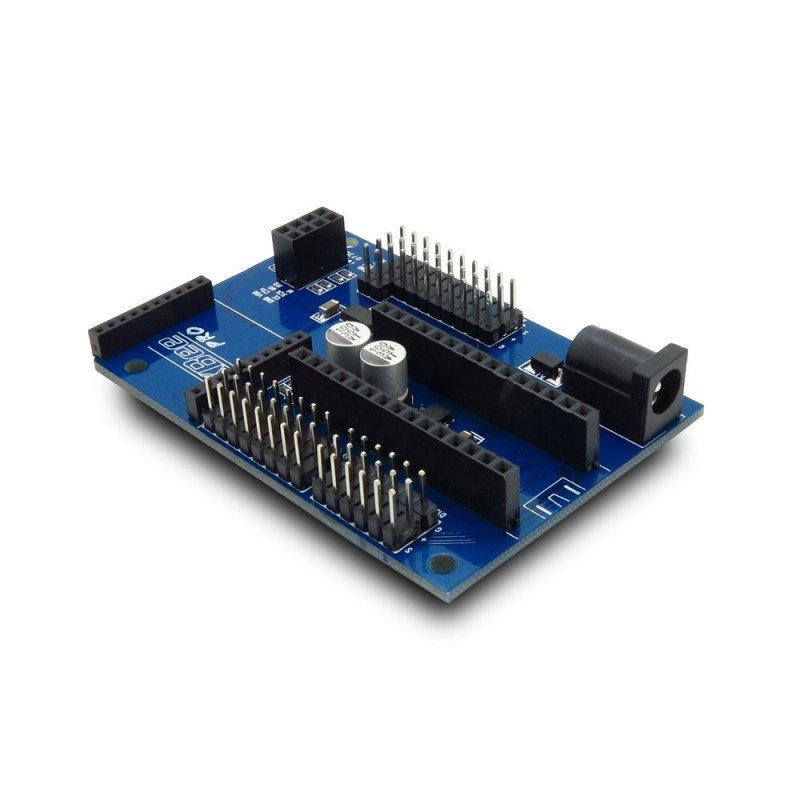

Nano IO shield is a breakout board for Arduino Nano. It breaks out all pins as Electronic brick 3pin interface, the Zigbee XBee Series Modules and nRF24L01 wireless interface. And it supports 7-12V external power supply.

Features

• All digital and analog pins breakout
• XBee and nRF24L01+ module interface
• External power supply current support
• Compatible pin map for electronic brick

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
