16-channel Servo Motor Drive Shield For Arduino

12,90 €
Tasse incluse
Quantità

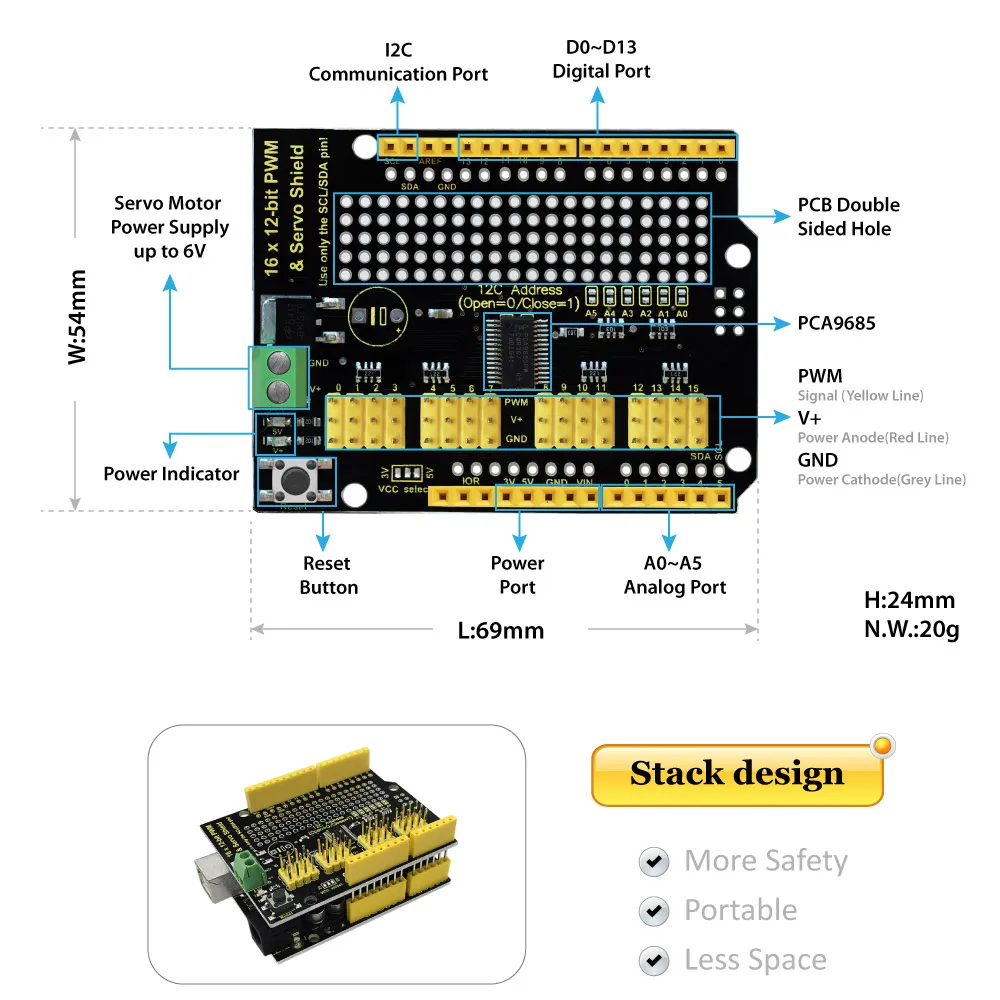

KS0258 (6)KS0258 (8)

(3)

Introduction

When we are doing robot experiments, it needs to use multiple PWM ports to drive the servo motor, however, the common used Arduino UNO R3 only has 6 PWM ports, so it is not enough.

This allows you to use this expansion board, which is directly stacked on the Arduino UNO R3 board and can drive up to 16 servos. It uses I2C input, just occupies A4 and A5 of the Arduino UNO R3 board. The expansion board contains PCB double sided holes ,which can direct to solder with components to build up prototyping circuits.



Performance Parameters

1. I2C input, to control 16-channel PWM output

2. Servo power supply independent V + input up to 6V

3. Logic signal and logic power independent output 3-5v

4. Frequency of 40-1000Hz

5. Number of channels: 16-channel

6. Resolution: 12-bit

Result

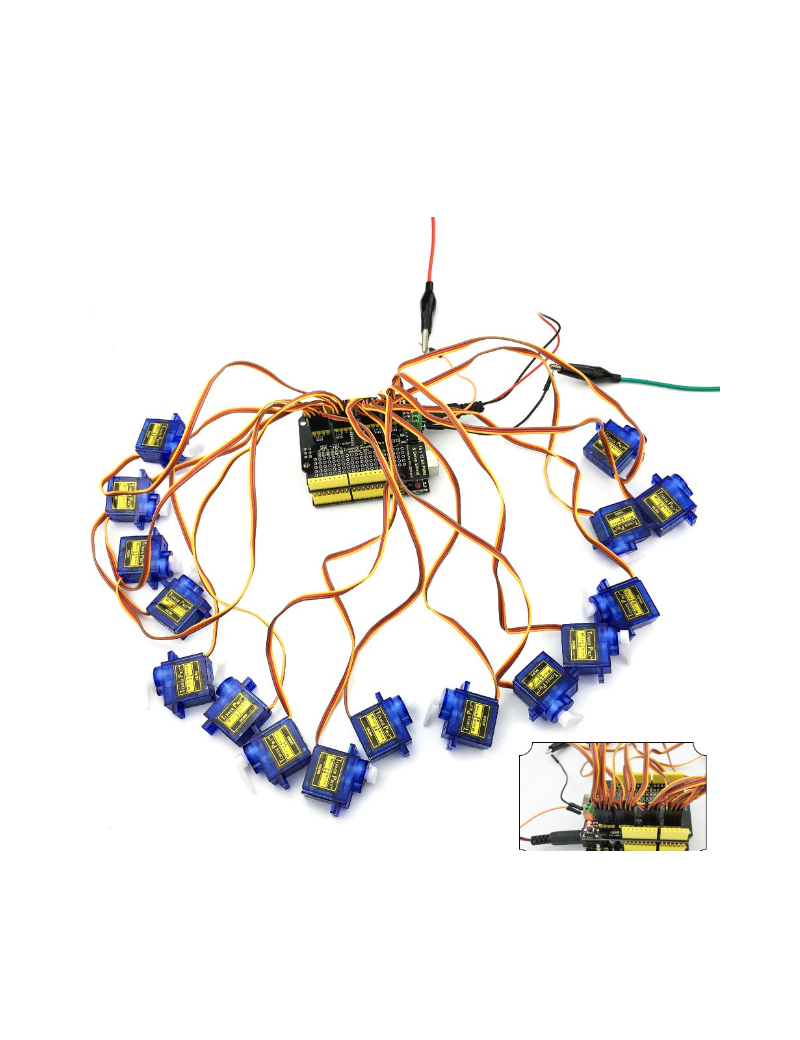

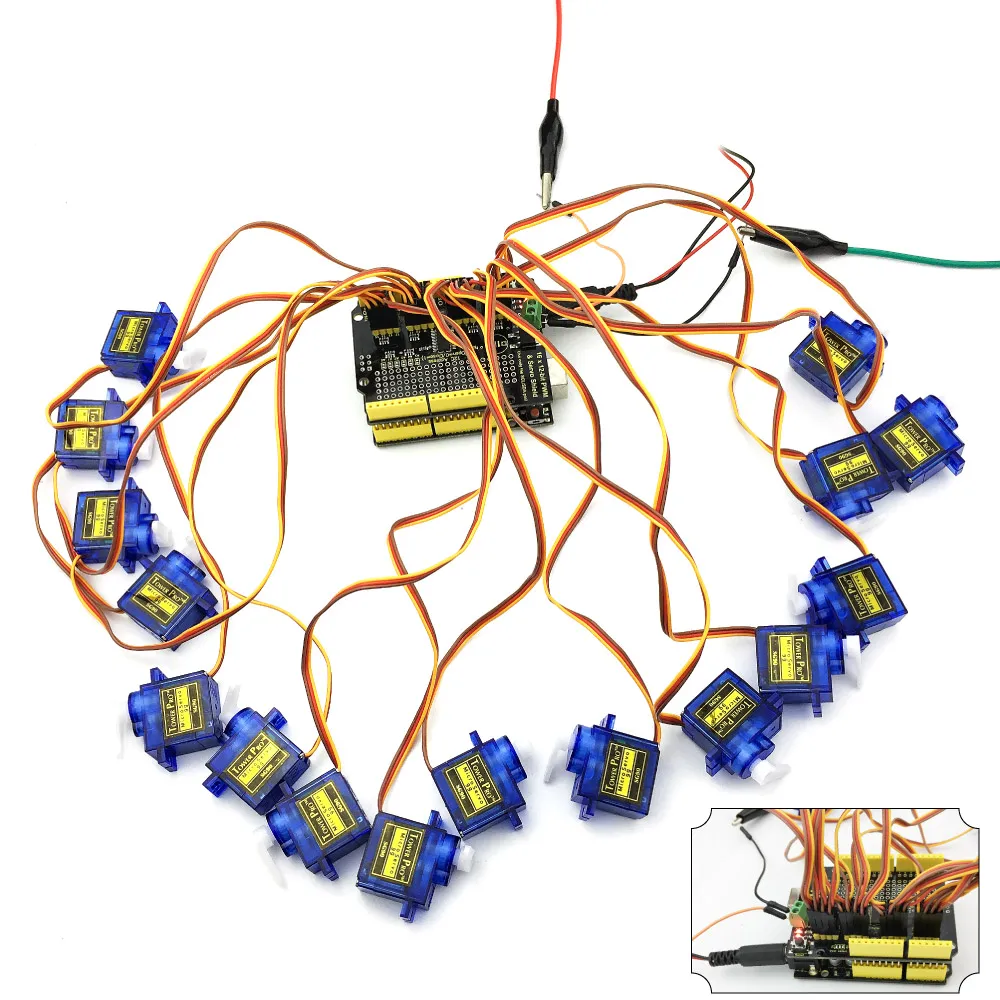

Burning the code on Arduino UNO R3, then connect 16 servo motors as shown below, you can see

them rotate in succession.

KS0258 (1)

Related Data Link

Get the Adafruit PWM Servo Driver Library

http://www.keyestudio.com/files/index/download/id/1505354621/
