WIKI: http://wiki.keyestudio.com/index.php/Ks0007_Shield_L298P_2A_High_Current_Dual_DC_Motor_Driver_Module

Video: http://www.keyestudio.com/wp/2016/05/ks0007-keyestudio-l298p-motor-driver-shield/

Introduction

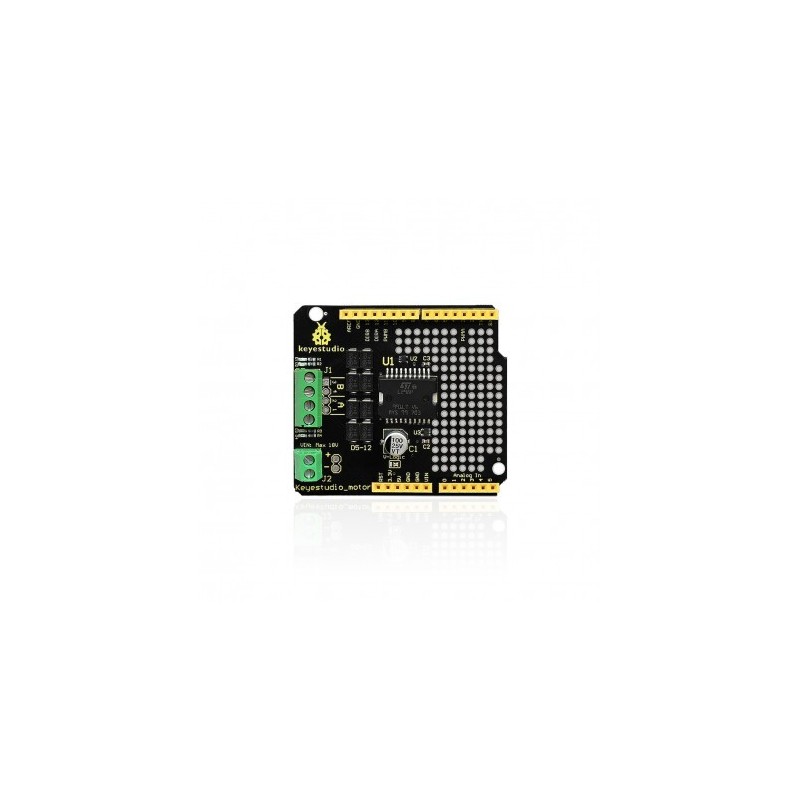

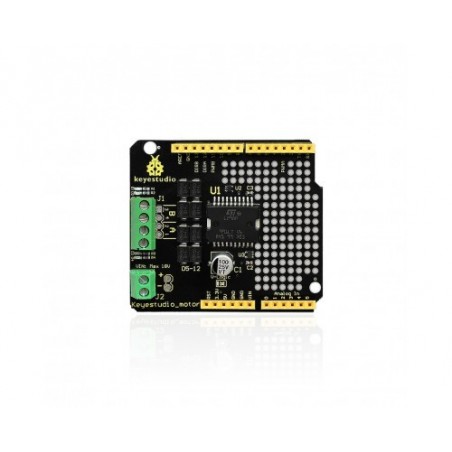

L298P Shield DC motor driver adopts the L298P driver chip wich is exclusively made for large-power motor. It can drive 2 DC motors directly with a drive current reaching 2A. The motor output is equipped with eight high-speed schottky diode as protection. This driver carries neat circuit layout and bonded components, in addition, the multi-layer design enables it to be plugged to Arduino directly.

L298P Shield DC motor driver carries PWM mode. The motor can be powered via Arduino VIN input or terminal input on the driver, which are switchable by jumper.

Specification

1. Logic part input voltage : VD: 5V
2. Driving part input voltage VS: VIN input 6.5 ~ 12V, PWRIN input 4.8 ~ 24V
3. Logic part working current Iss: ?36mA
4.Driving part working current Io: ? 2A
5. Maximum dissipation power: 25W (T=75?)
6. Control signal input level:
High level: 2.3V ? Vin ? 5V
Low level: -0.3V ? Vin ? 1.5V
7. Working temperature: -25???130?
8. Driver form: Dual power H bridge driving
According to wiring method above, we can control the transferring, reversing, stopping of two DC motor (M1 and M2), as well as the speed regulation of PWM.
