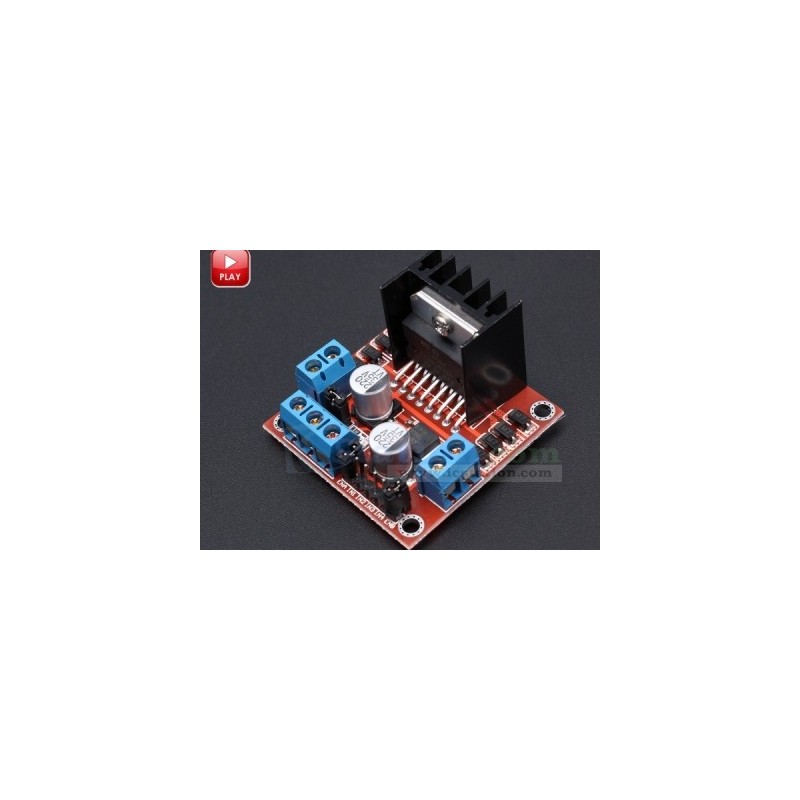

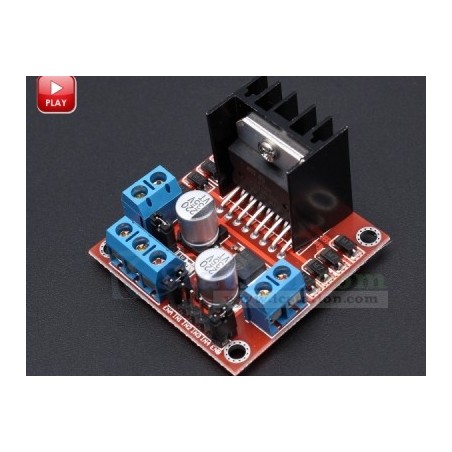

Dual H Bridge DC Stepper Motor Drive Controller for Arduino L298N

3,99 €
Tasse incluse

Dual H Bridge DC Stepper Motor Drive Controller for Arduino L298

Quantità

Description

Basic Attributes

Name

Double H Bridge Motor Driver Module

Working mode

Drived by H bridge

(double lines)

Control chip

L298N ? ST ?

Logical voltage

5V

Driving voltage

5V — 35V

Logical current

0mA-36mA

Driving current

2A (MAX single bridge)

Storage temperature

? -20 ??—? +135 ??

Maximum power

25W

weight

30g

Periphery dimension

43*43*27mm

Product features:


1.Using L298N made by ST company as the control chip,the module has such characteristics as strong driving

ability,low calorific value and strong anti-interference ability.

2.This module can use built-in 78M05 for electric work via a driving power supply part.But to avoid the damage

of the voltage stabilizing chip,please use an external 5V logic supply when using more than 12V driving voltage.

3.Using large capacity filter capacitor,this module can follow current to protect diodes,and improve the

reliabilitY

{youtube}NiOeoKg75HA{/youtube}
