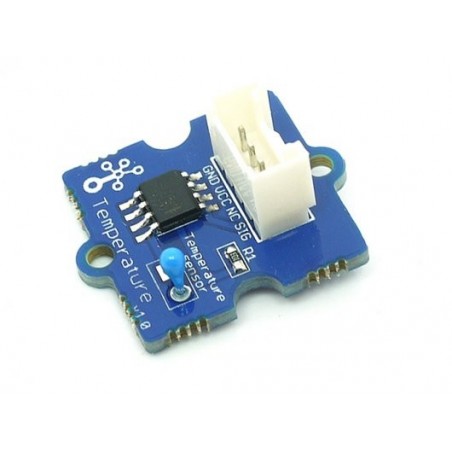

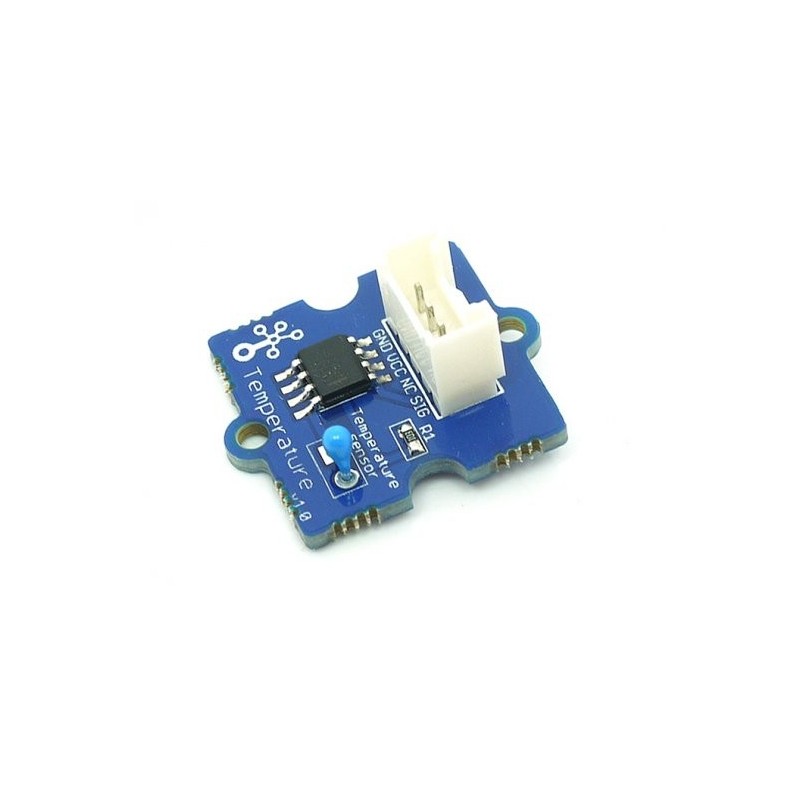

Grove - Temperature Sensor uses a thermistor to measure ambient temperature. The resistance of thermistor changes based on ambient temperature. This resistance value alters the output of a voltage divider which is measured by an analog input pin and converted to a temperature value. The operating range is -40 to 125°C , with an accuracy of 1.5°C .

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting StartedandIntroduction to Grove before your using of the product.

KEY FEATURES

• • ?Grove compatible interface

• • ?Arduino library ready

SPECIFICATIONS

• • ?Operating voltage: 3.3~5V

• • ?Thermistor Zero power resistance: 100 K?

• • ?Resistance Tolerance: ±1%

• • ?Thermistor: NCP18WF104F03RC (NTC)

• • ?Nominal B-Constant? 4250 ~ 4299K

• • ?Operating temperature range: -40°C to 125°C

• • ?Accuracy: ± 1.5°C

DOCUMENTS

Please visit our wiki page for more information about this product
