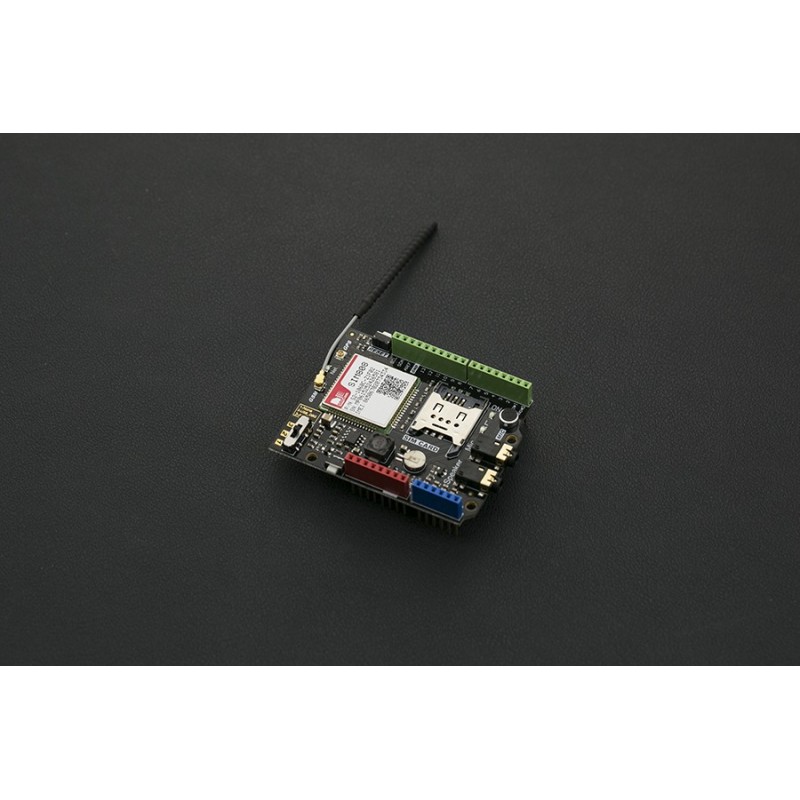

SIM808 GPS/GPRS/GSM Arduino Shield is an integrated quad-band GSM/GPRS and GPS navigation technology Arduino shield. A credit card size only, according to the standard Arduino pin packaging, compatible with Arduino UNO, arduino Leonardo, arduino Mega and other mainboard. Compared to the previous generation SIM908, SIM808 made some improvement on performance and stability. In addition to the normal SMS and phone functions, the shield also supports MMS, DTMF, FTP and other functions. You can achieve the data acquisition, wireless data transceiver, IoT application and GPS orientating.

What’s it for:

• Send and receive GPRS data (TCP/IP, HTTP, etc.)
• Receive GPS data and A-GPS data
• Send and receive SMS messages
• Make and receive phone calls

SPECIFICATION

• Quad-band 850/900/1800/1900MHz – 2G GSM network
• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
• GPRS mobile station class B
• GPS Receiver channels: 22 tracking / 66 acquisition
• Coarse/Acquisition code: GPS L1
• Tracking sensitivity: -165dBm
• Time-To-First-Fix: Cold starts: 30s (typ.), Hot starts: 1s (typ.), Warm starts: 28s (typ.)
• Horizontal position accuracy: < 2.5m CEP
• Update rate: 5Hz
• Supports Real Time Clock
• Uses standard SIM Card holder
• Operating voltage: 5V
• Input Power: 7-23V
• Support AT command control (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
• Support LED status indicator: Power supply status, network status and operating modes
• Working environment: -40 ℃ ~ 85 ℃
• Size: 69 * 54mm/2.71 * 2.12 inches
• Weight: 50g

DOCUMENTS

• Wiki (SIM808 GPS/GPRS/GSM Shield For Arduino)
• SIM808_Shield library on gitHub
• SIM808 Command Manual
• SIM808 GNSS Application Note
• SIM808 Hardware Design V1.02
• SIM808 SPEC
• TEL0097 Schematic

SHIPPING LIST

• SIM808 GPS/GPRS/GSM Shield    x1
• GPS Antenna            x1
• GSM Antenna            x1
