CAN Interface for USB
Write your review
291,58 €
Tasse incluse

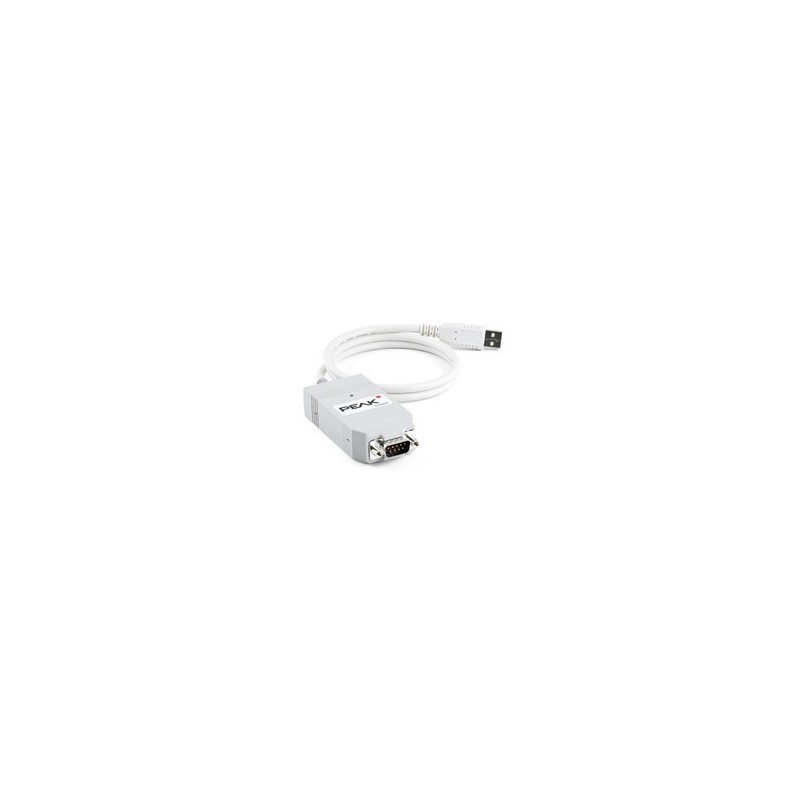

CAN Interface for USB
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
- Adapter for the USB connection
(USB 1.1, compatible with USB 2.0 and USB 3.0) - Voltage supply via USB
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Time stamp resolution approx. 42 µs
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin
(in accordance with CiA® 102) - NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Optionally available:
Galvanic isolation on the CAN connection up to 500 V
- PCAN-USB in plastic casing
- Device drivers for Windows® 8.1, 7, Vista, and Linux (32/64-bit)
- Device driver for Windows® CE 6.x (x86 and ARMv4 processor support)
- PCAN-View CAN monitor for Windows® Details ...
- PCAN-Basic programming interface consisting of an interface DLL, examples, and header files for all common programming languages Details ...
- Manual in PDF format
PCAN-USB package
Package contains device drivers for Windows® 8.1, 7, Vista (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English).
Windows® 2000 package
Device drivers for Windows® 2000 and the CAN monitor PCAN-View.
PCAN-Linux device driver
Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.
PCAN-View
Windows® compatible software for displaying CAN messages
BaudTool
Windows® software for calculating the BTR0/BTR1 baud rate register
PCAN-Basic API
API for the development of applications with CAN connection for Windows®
PCAN-Basic API (Linux)
API for the development of applications with CAN connection for Linux
PCAN-CCP API
API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)
PCAN-XCP API
API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)
PCAN-Light API
API for the development of applications with CAN connection for Windows®
PCAN-USB manual
Pin assignment D-Sub
| Pin | Pin assignment |
|---|---|
| 1 | Not connected / optional +5V |
| 2 | CAN-L |
| 3 | GND |
| 4 | Not connected |
| 5 | Not connected |
| 6 | GND |
| 7 | CAN-H |
| 8 | Not connected |
| 9 |
Not connected / optional +5V |
"
R3D-PCAN-USB
CAN Interface for USB
