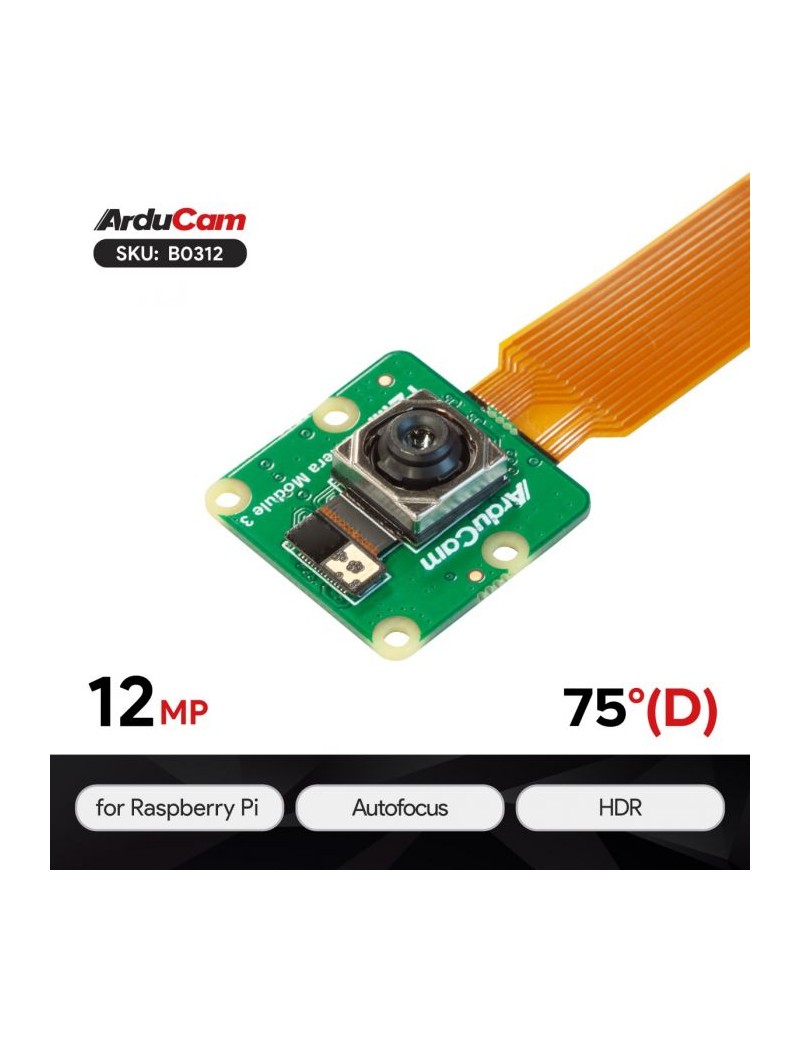

Raspberry Pi 12MP IMX708 Autofocus Camera Module V3

43,92 €
Tasse incluse

Raspberry Pi Camera Module V3

Quantità

Overview

Arducam Camera Module 3 delivers high-quality images with its 12MP Sony IMX708 image sensor and HDR mode for up to 3MP output. Equipped with a 75° DFOV autofocus Lens, PDAF, and 2D DPC, this module offers exceptional SNR.
The camera module is native to Raspberry Pi and compatible with Bullseye OS and libcamera command. It is also compatible with Raspberry Pi 3, 4 A/B, and Zero.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products, but also strive to provide complete solutions for embedded cameras, optical components, etc.


Applications

  • Astrophotography
  • Surveillance cameras
  • FA cameras
  • Industrial/Agricultural cameras
  • Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

  • Arducam Camera Module 3: Based on a back-illuminated stacked CMOS, 2-megapixel high-resolution Image Sensor IMX708 with HDR mode for up to the 3-megapixel output.
  • High-Quality Images: Capture high-quality images with a 75° DFOV autofocus lens and max resolution of 4608×2592.
  • Quick Autofocus: Phase Detection Autofocus (PDAF) delivers rapid autofocus, ensuring that you never miss a shot.
  • Native to Raspberry Pi: No additional driver is needed when using the camera on Raspberry Pi.
  • Platform Compatibility: Supports Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables. Supports application on Raspberry Pi Zero.

Specifications

Camera

IMAGE SENSORIMX708
Still Resolution 11.9 Megapixels
Video Modes 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120
Sensor Resolution 4608 x 2592 pixels
Sensor image area 6.45 x 3.63mm (7.4mm diagonal)
Pixel Size 1.4μm × 1.4μm
Optical Size 1/2.43"
IR Sensitivity Integral IR-cut Filter, visible light only
Supported Platform Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Lens

FOCUS TYPEMOTORIZED
Focal Length 4.74 mm
F.NO F1.8
Field of View(FOV) 75°(D)x66°(H)x41°(V)
Lens Mount /



Electrical and Mechanical

CAMERA BOARD SIZE25 × 24MM



Package Including

  • 1 x IMX708 AF Camera Module
  • 1 x 15-22pin FPC Cable
  • 1 x 22-22pin FPC Cable
  • 1 x Paper Quick Start Guide

Notes

  • The package contains small contents, please keep it away from children to avoid accidental ingestion.
  • After receiving the package, please confirm whether the contents of the package are consistent with the description.
  • No Raspberry Pi board is included in the package.
  • This camera module is natively supported by Raspberry Pi. There is no need to install an additional driver for it. Just modify the config file to access it.

Documentation

AC-B0312
