Description

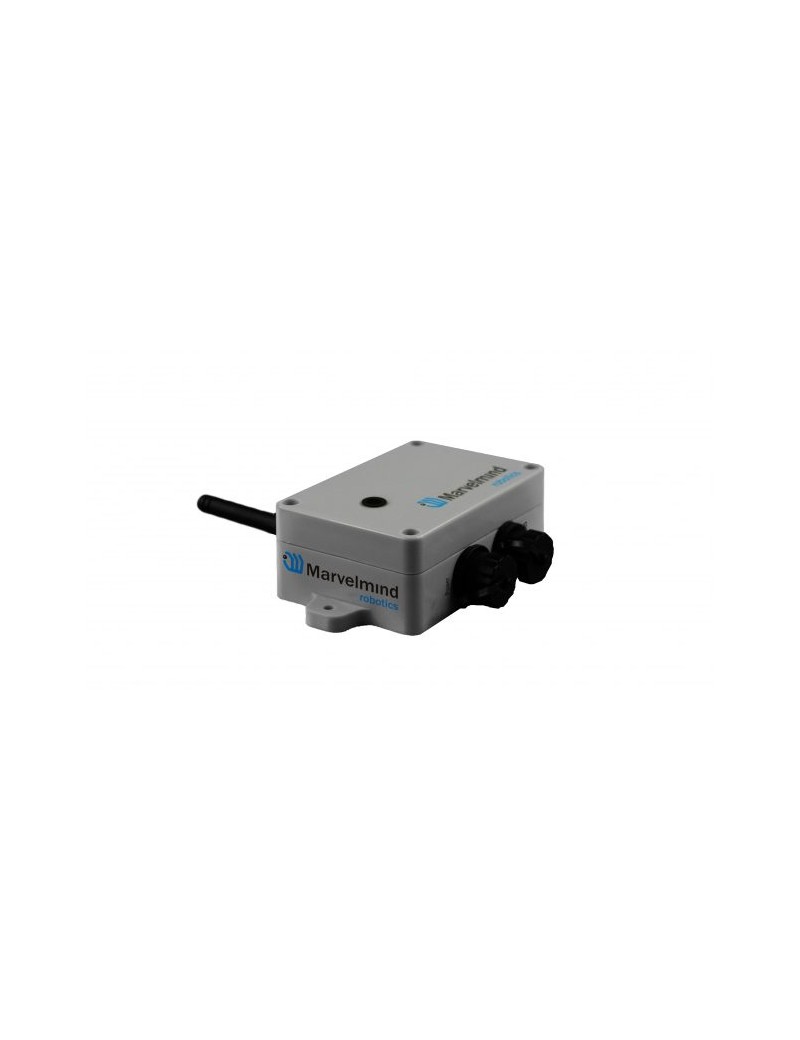

Industrial-RX beacon:

• Designed for indoor and outdoor and industrial applications
• RX-only beacon – can receive ultrasonic, but can’t transmit it
• Very solid compound-sealed IP67 level protection
• Special IP67-membrane for ultrasonic sensor
• External antenna with SMA connector for extended radio range
• Currently, supports license-free 915MHz ISM band (US) and license-free SRD band 868MHz (EU). Future 433MHz HW variants may come in some months, but no firm schedule yet. You can place orders for 433MHz. When sufficient amount is collected, we will produce the 433MHz version as well
• Two IP67 external connectors:
  1. Power:
     • +12V power supply (works from +6V to +15V)
     • Reset pin
     • DFU pin
     • GND
  2. Interfaces :
     • RS485
     • UART 3.3V
     • USB (TX+RX)
     • GND
• Corresponding IP67 connectors (male part) included
• No battery inside by default – external power bank or external power supply (+12V). Optional variant with internal battery is available on request
• Extended working temperature range: -40C…+50C (not tested, provided by design)
• Embedded reset switch and DFU switch – magnetic control
• Supports wide range of ultrasonic frequencies: 19/25/31/37/45 kHz
• Most of all, designed to work together with Industrial-TX beacon. But can work along with Beacon HW v4.9 or Beacon Mini-TX or Super-Beacon. In all cases, the radio bands must match
• Ultrasonic range – up to 30m with Industrial-TX beacon or Beacon HW v4.9. And up to 20m with Mini-TX beacons
• Radio range to modem – up to a few hundred meters in open space with full-size antennas
• Optional external IP67 converter ~110/220V to +12V
