DATASHEET

https://www.atlas-scientific.com/_files/_datasheets/_circuit/EC_EZO_Datasheet.pdf

Reads      Conductivity = μS/cm Salinity = PSU Specific gravity (sea water only) = 1.00 – 1.300


Range                                   0.07 − 500,000+ μS/cm
Accuracy                              +/ – 2%
Response time                    1 reading per sec
Supported probes              K 0.1 – K 10 any brand K 0.1 – K 10 any brand
Calibration                           2 or 3 point
Temp. compensation         YES
Data protocol                      UART & I2C
Default I2C address           100 (0x64)
Operating voltage               3.3V − 5V
Data format                          ASCII

Circuit dimensions
13.97mm x 20.16mm (0.55" x 0.79")
Weight: 1.77 grams

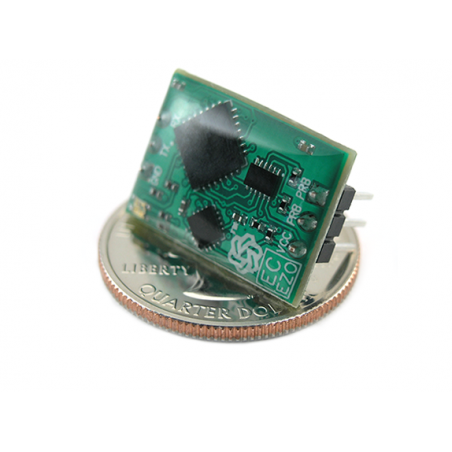

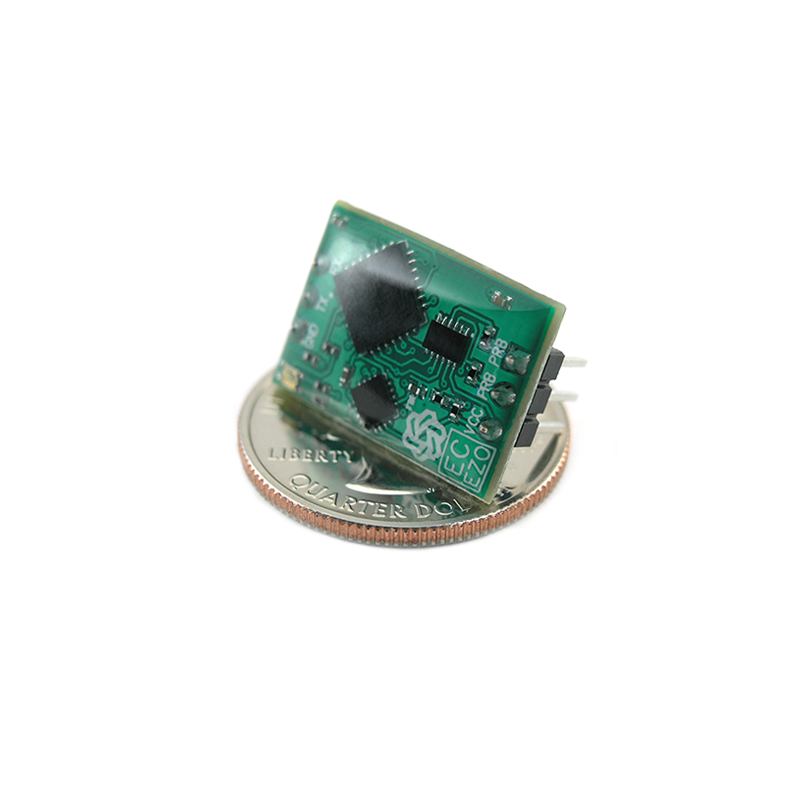

 EZO™ Conductivity Circuit Datasheet
 EZO™ Conductivity Accuracy Graph

 Conductivity Wiring Diam

 Arduino Uno Sample Code

https://www.atlas-scientific.com/_files/code/Arduino-mega-EC-Sample-Code.pdf

https://www.atlas-scientific.com/_files/code/ec-i2c.pdf

 Raspberry Pi Sample Code (UART, I²C, USB)

 Conductivity CAD Footprint File (*.dxf)

 RoHS Certificate

https://www.atlas-scientific.com/_files/_app_notes/CE%20Certificate.pdf
