Arducam 8MP*4 Quadrascopic Camera Bundle Kit for Raspberry Pi, Nvidia Jetson Nano/Xavier NX

198,86 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

This Arducam quadrascopic camera bundle incorporates four 8MP IMX219 cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT.

As the upgraded version of Arducam Synched Stereo Camera HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi, Jetson Nano, and Jetson Xavier NX.



Feature

  • Designed for Raspberry Pi Camera: This Quad- Camera kit allows you to connect four 8MP IMX219 raspberry pi cameras to a single standard pi board and capture images or video at the same time.
  • Four in One: Combine four cameras into one frame, each with a resolution of 1/4(820(H)x616(V)); the maximum output you can get: 3280 x 2464 for still images and 1920x1080 for video. Please note the frame rate for video and still images will drop to half the frame rate you would normally get with a single camera
  • Wide compatibility: It is compatible with the latest Raspberry Pi camera software (libcamera) and uses the official Pi camera tuning algorithm. It also supports multi-platform multi-camera solutions such as Raspberry Pi, Jetson Nano, Xavier NX, and many more.
  • Applications: Multiple camera processing technologies have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping). Synchronized video streams with Raspberry Pi could be used for many use-cases (e.g., stitching, 3D sensing, tracking, …) before investing in an expensive video multiplexer hardware.



Specifications

Support Platform Raspberry Pi/Nvidia Jetson
Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
Output Format RAW8/RAW10
ISP Support Supported on Raspberry Pi
External Trigger Not Support
Aggregate mode 1/4 Spelling Combine
Frame Rate(On Raspberry Pi) 8MP@21fps, 1080p@30fps, 720p@120fps
Frame Rate(On NVIDIA Jetson)* 8MP@21fps, 1080p@30fps, 720p@120fps
Image Sensor Sony IMX219
Pixel Size 1.12 μm x 1.12 μm
Active Array Size 3280 x 2464
Optical Format 1/4”
Camera Interface 2-lane MIPI CSI-2
IR Sensitive Integral IR Cut filter, Visible Light Only
Camera Board Size 24mm x 25mm
Camarray Hat Size 65mm x 56 mm
Default Lens Mount Stock Lens
Effective Focal Length 3.04mm
FOV on 1/4” RPi Camera 62.2° (H), 48.8(V)

*: JetPack4.6/L4T32.6.1 on NVIDIA Jetson Nano/Xavier NX

Package Including

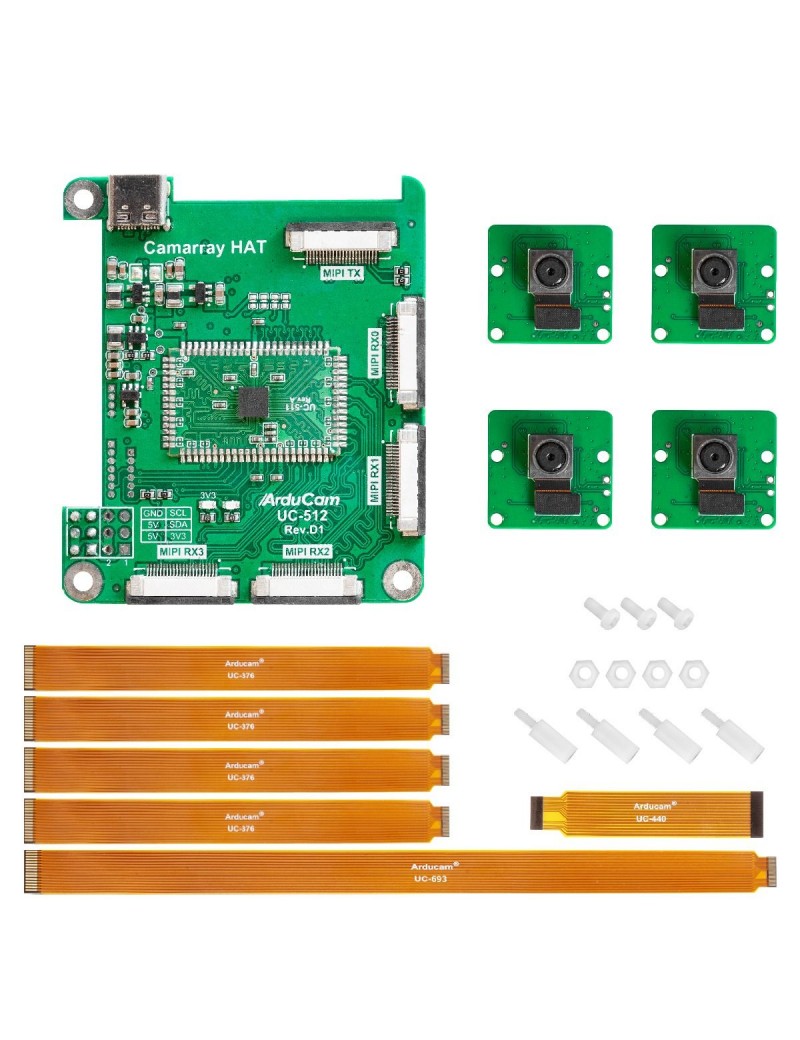

  • 4 × IMX219 Camera Module
  • 1 × Arducam Camarray HAT
  • 4 × 15cm 15-22pin Camera FPC Cable
  • 1 × 30cm 15-22pin Camera FPC Cable
  • 1 × 7cm 15-22pin Camera FPC Cable
  • 1 × Screw Pack



Note

1. The four-channel camera adopts the 2×2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.

2. The resolution of the synthesized image remains unchanged, but the frame rate is halved. This Kit Combines four cameras into one frame, each camera with a max resolution of 1/4(820(H)x616(V)).

3. If any camera fails, the composite image can still be output, with the corresponding area of the failed camera being black.

4. Official Commands and ISP are supported.

5. The four-channel camera is a customized model, requiring HAT to provide a clock. It cannot be removed and is directly connected to the Raspberry Pi.

6. The driver of the kit is mainly developed based on the Raspberry Pi/ Nvidia Jeston official board, and there is no guarantee that the third-party board can be used (Due to the different allocation of hardware resources, it may not be compatible)

7. This camera kit supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact sales@arducam.com for support.



Documentation

AC-B0396
