18MP USB Camera Evaluation Kit

390,40 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

Item Description:

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode at 60 fps and 1080p120 fps.

Features:

  • Optical format: 1/2.3−inch
  • Active pixels: 4912H x 3684V
  • Pixel size: 1.25um x 1.25um
  • Color filter array: RGB Bayer pattern
  • ADC resolution: 12−bit, on−chip
  • Responsivity: 0.62 V/lux−sec (545 nm)
  • Dynamic range: 65.8 dB
  • SNRMAX: 36.3 dB
  • Output Interface: 2-Lane MIPI
  • Frame Rate: 120 fps
  • Lens Default: low distortion M12 lens (Part Number: M23390H08)
  • IR Sensitive: build-in 650nm IR filter, none sensitive to IR light

Application:

  • Digital video cameras
  • Digital still cameras
  • Industrial camera
  • Medical camera
  • Microscopy camera
  • UAV camera



Lens Options

SKU

LN059

LN036

LN058

LN024

LN053

LN033

LN069



LN064

 LN056 LN031

Part No

M17350H08

M2025ZM02

M231250H03

M2306ZM13

M23390H08

M23356H09

M23270H10

M23325H12

M23272M14

M25156H18
Optical Format 1/2.3' 1/2.3' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3” 1/2.3'' 1/2.3'' 1/2.3'
EFL(mm) 35.00 25.00  12.50 6.00 3.90 3.56 2.70 3.25 2.27 1.56
BFL(mm) 5.50 5.20  2.11 7.56 4.49 5.92 4.97 4.10 3.01 4.30
Construction 5G 6G 6G+IR 6G+IR 6G+IR 4G3P+IR 5G2P+IR 7G+IR 8G+IR 6G+IR
F/NO 3.0 2.0  2.35 2.0 2.8 2.5 2.8 2.2 2.5 2.0
HFOV on 1/2.3‘’ Cam 8° 20° 30° 50° 75° 90° 100° 120° 140° 180°
IR filter No IR filter No IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter
MOD 0.35m 0.20m  0.30m 0.30m 0.30m 0.20m 0.30m 0.30m 0.20m 0.20m

Size(mm)

 22x 29.3 17 x 21 14 x 22.72 16x 16.41 14x 18.67 14x 16.3 16x 18.43 17x 19 17.2x 22 20x 17.3



NOTE: The M12 Lens kit for the IMX477 HQ Camera module, please check LK003, 6 lenses are included.

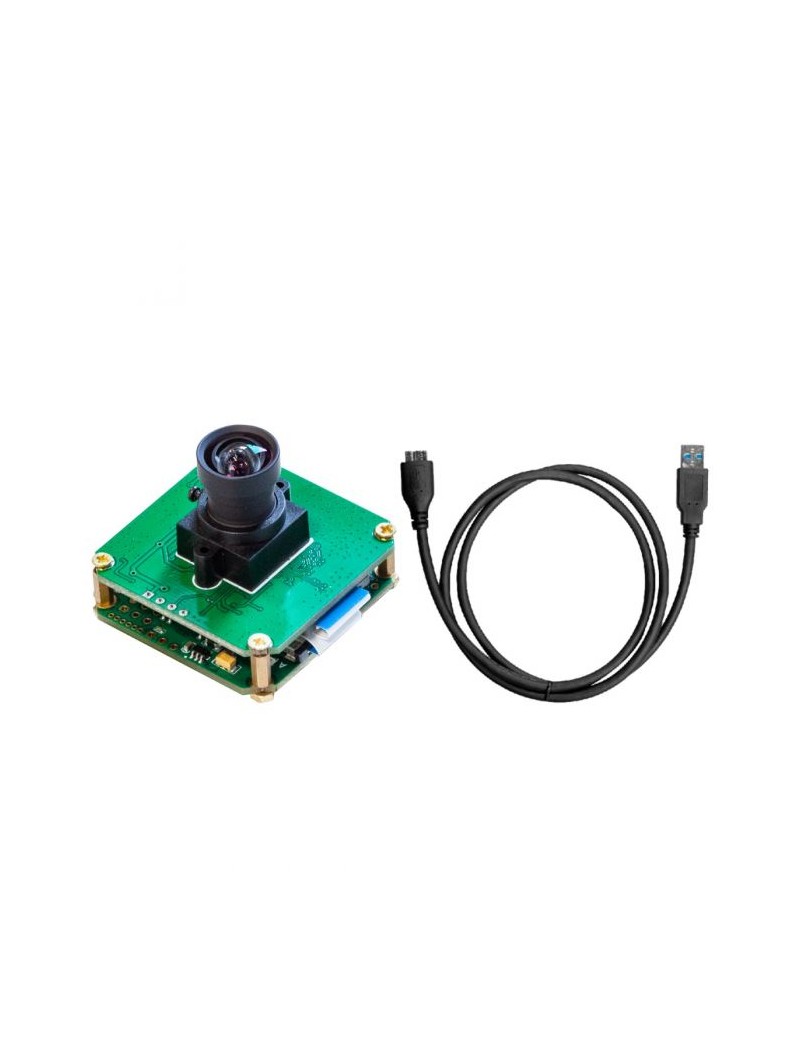

Package Including:

  • 1 pcs Arducam CMOS AR1820HS 1/2.3−inch 18MP Color Camera Module
  • 1 pcs Arducam USB3.0 camera shield plus
  • 1 pcs USB3 Cable

Additional Resources:

AC-EK013
