Arducam B0322 is a new member of the Arducam’s USB camera family. It’s a 2MP, based on the 1/2.9″ monochrome global shutter OV2311 image sensor, UVC compliant, low distortion USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Due to the sensor’s high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Feature

• Based on 2MP monochrome (black&white) global shutter sensor OV2311, assembled with a 75°(H) low distortion M12 lens without IR pass filter, sensitive to IR.
• Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.
• Resolution: 2MP 1600H x 1200V; Frame Rates: MJPG switchable, up to 50fps@1600 x 1200/1280 x 960/ 720P/800 x 600/640 x 480/320 x 240/160 x 120; YUY2 5fps@1600 x 1200/720P/800 x 600.

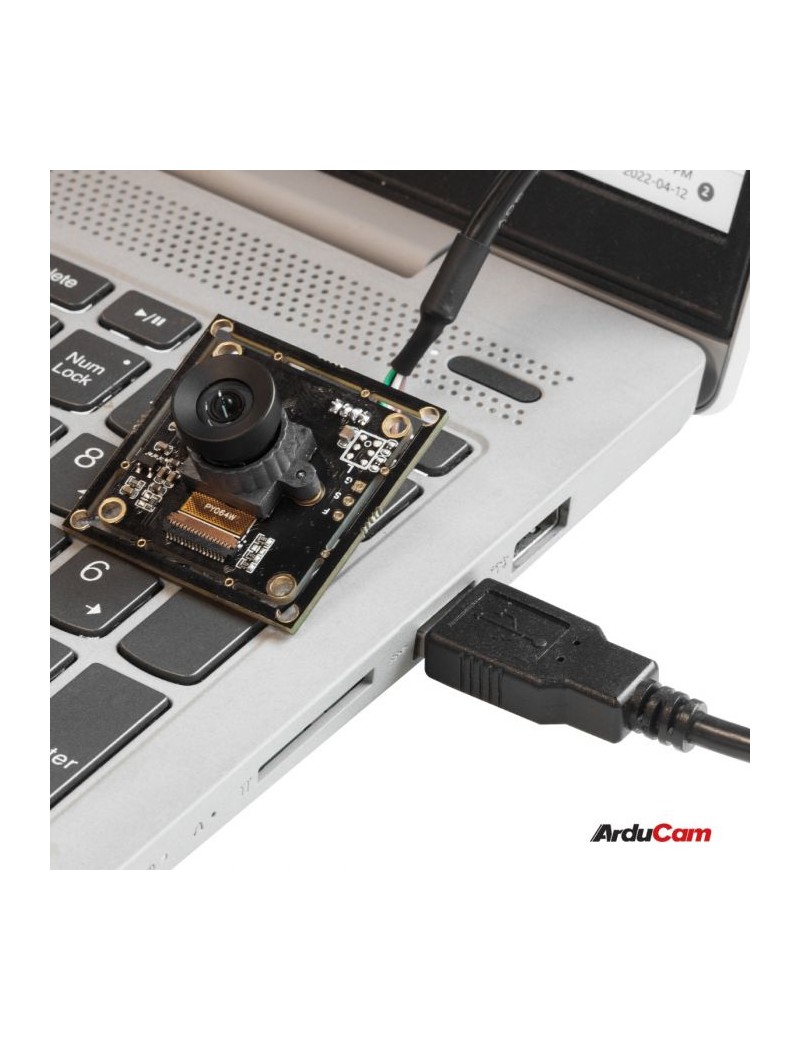

• Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
• Applications: The sensor's high resolution and excellent low-light sensitivity, and low distortion lens make it offer exceptionally accurate gaze- and eye-tracking capabilities, highly recommended for Augmented and virtual reality, gesture and eye tracking, depth and motion detection.

Applications

Iris and face recognition

Astrophotography

Gesture and eye tracking

Depth and motion detection

Home video surveillance system

……

Specs

Camera

– Sensor: 1/2.9” OV2311

– Resolution: 2MP 1600 x 1200

– Data Format: MJPG/YUY2

– Frame Rate: MJPG switchable, up to 50fps@1600 x 1200/1280 x 960/ 720P/800 x 600/640 x 480/320 x 240/160 x 120; YUY2 5fps@1600 x 1200/720P/800 x 600.

- USB Connector: B4B-ZR(LF)(SN)

Lens

– Field of View (FOV)：75 degree (H)

– Lens Mount: M12

– IR Sensitivity: No IR filter, sensitive to IR

Functionality and Compatibility

– Adjustable parameter: Exposure/ White balance

– System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Power

– Power Supply: USB powered 5V

– Working Current: MAX 200mA

Physical

– Operating Temp.: -4°F~158°F (-20°C~+70°C).

– Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)

– Cable Length: 3.3ft (1M)

NOTE:

This camera module supports trigger via an external signal, and also support output the strobe signal, please refer to Arducam Doc page to get the instruction.

Documentation

How to access Arducam OV2311 Global Shutter UVC Camera using external trigger snapshot mode
