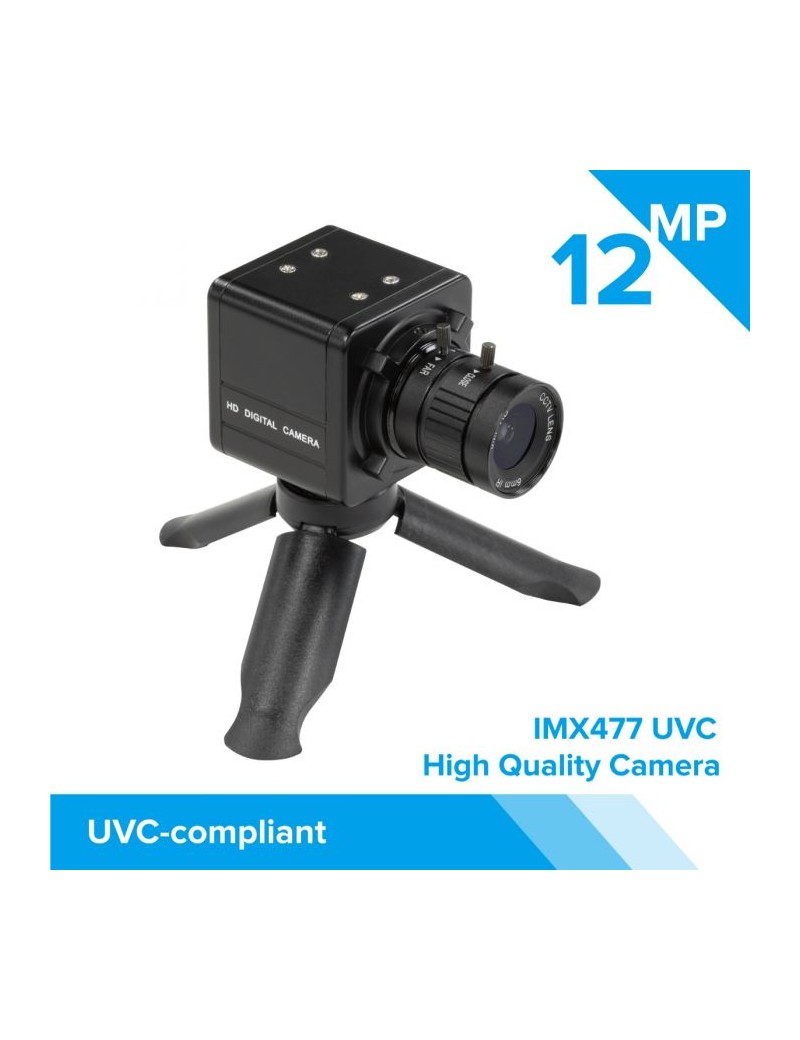

High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch IMX477 Camera Module with 6mm CS-Mount Lens

193,98 €
Tasse incluse

High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch IMX477 Camera Module with 6mm CS-Mount Lens, Metal Enclosure, Tripod and USB Cable

Quantità
Add to Compare
Add to Wishlist

Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

Arducam B0280 is a new member of the Arducam’s USB camera family. It’s a 12MP, based on the 1/2.3″ Sony IMX477 image sensor, UVC compliant, 6mm USB 2.0 camera with the metal shell.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Features

  • More than HD: This camera adopts 12MP IMX477 sensor for sharp image and accurate color reproduction
  • Wider Angle of View: Rotate the zoom ring, focus ring and aperture ring to get a clear image in different focus distance with a field of view 65°.
  • High Frame Rates: MJPG 4032(H) x 3040(V)
  • Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
  • Applications: Widely used for the video surveillance system, live streaming, record lesson and conference, and other vision applications.
  • Serial Number: Supports modifying the Serial Number.

Applications

  • Video conference
  • Home video surveillance system
  • Live streaming
  • Record lesson and conference
  • ……

Features & Specs

 Camera

  • Sensor: 1/2.3” IM477
  • Resolution: 4032(H) x 3040(V) 12.3MP
  • Data Format: MJPG
  • Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps

Lens

  • Field of View (FOV): 65°
  • Lens Mount: CS
  • Focal Length:6mm
  • Back Focal Length: 7.53mm
  • MOD: 0.2m

Lens Options

CS-Mount Lens

SKU

LN051

LN050

LN038

LN039

LN040

LN041

LN029

Part No

CS17320M12

CS2316ZM02

CS2308ZM05

CS2008ZM05A

CS1812ZM03

CS2325ZM01

CS1806ZM06
Optical Format 1/7″ 1/2.3' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3'' 1/2.3''
EFL(mm) 3.2 16.00  8.00 8.00 12.00 25.00 6.00
BFL(mm) 5.94 7.53 6.50 7.53 7.53 8.03 8.03
F/NO 2.0 1.2  1.4 1.2 1.6 1.2 1.4
HFOV on 1/2.3‘’ Cam 120° 24° 50° 50° 30° 14° 65°
MOD 0.3m 0.20m  0.30m 0.20m 0.20m 0.20m 0.30m

Size(mm)

 28×30 30×29 28×23 30×29.5 30×29 28×29 28×28.5



NOTE 1: The CS-Mount Lens kit for the IMX477 HQ Camera module, please check LK004, 5 lenses are included.

NOTE 2: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses in bulk.

Functionality and Compatibility

  • Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • System Compatibility: Windows, Linux, Mac, and Android with UVC

Power

  • Power Supply: USB powered 5V
  • Working Current: MAX 200mA

Physical

  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 50mmx50mmx85mm
  • Cable Length: default 6.56ft (2M)

Package Including

  • 1 × 12MP IMX477 6mm lens USB 2.0 camera with full metal shell
  • 1 × 6.56ft (2M) USB 2.0 cable

Document

User guide

Datasheet

How to modify the serial number

AC-B0280
