Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, lens options. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Lens Shading Correction, etc.

• 18MP AR1820HS color sensor, up to 4986 x 3684@6fps.
• Auto Exposure, Auto White Balance.
• Gstreamer support.
• Upcoming V4L2 support(Although V4L2 interface is supported, only RAW format images can be obtained, without ISP support).
• Compatible with all libcamera-based apps maintained by the RPi foundation.

Specifications

• Sensor Type: 18MP AR1820HS
• Pixel Size: 1.25um x 1.25um
• Optical Size: 1/2.3”
• Active Pixels: 4912 H x 3684 V
• Lens Spec: Focal length: 3.9mm, F.NO: 2.8, FOV: 75° (H)
• IR Sensitivity: Integral IR filter, visible light only
• Focus Type: Manual focus
• Video Frame Rate: H.264 Max. 30fps@1920 x 1080
• Sensor Frame Rate: 4986 x 3684@6fps 2432 x 1840@20fps 1920 x 1080@50fps 1216 x 920@60fps
• ISP Frame Rate: 4986 x 3684@6fps 2432 x 1840@30fps 1920 x 1080@50fps 1216 x 920@60fps
• Sensor Output Format: RAW10
• ISP Output  Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
• Interface Type: 2-Lane MIPI
• Board Size: 40x40mm

Applications

• Digital video cameras
• Digital still cameras
• Industrial camera
• Medical camera
• Microscopy camera
• UAV camera

Package Contents

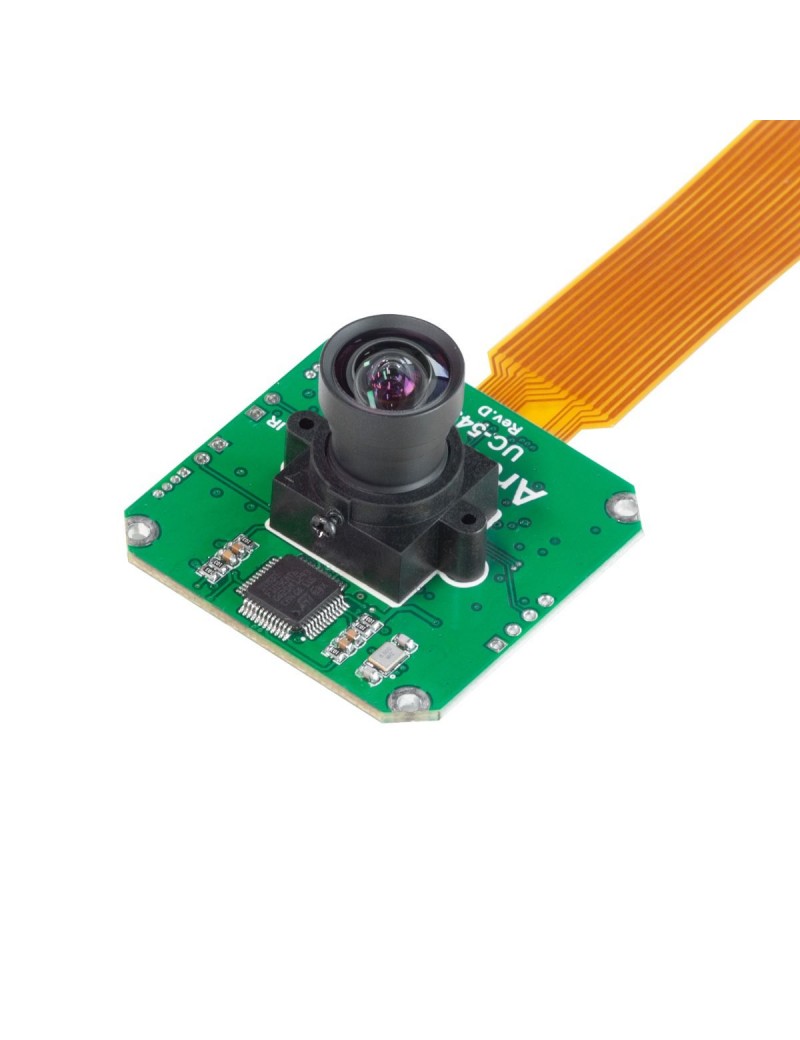

• 1 x Arducam 18MP AR1820HS ISP Camera Module
• 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

Documentation

3D Drawing
