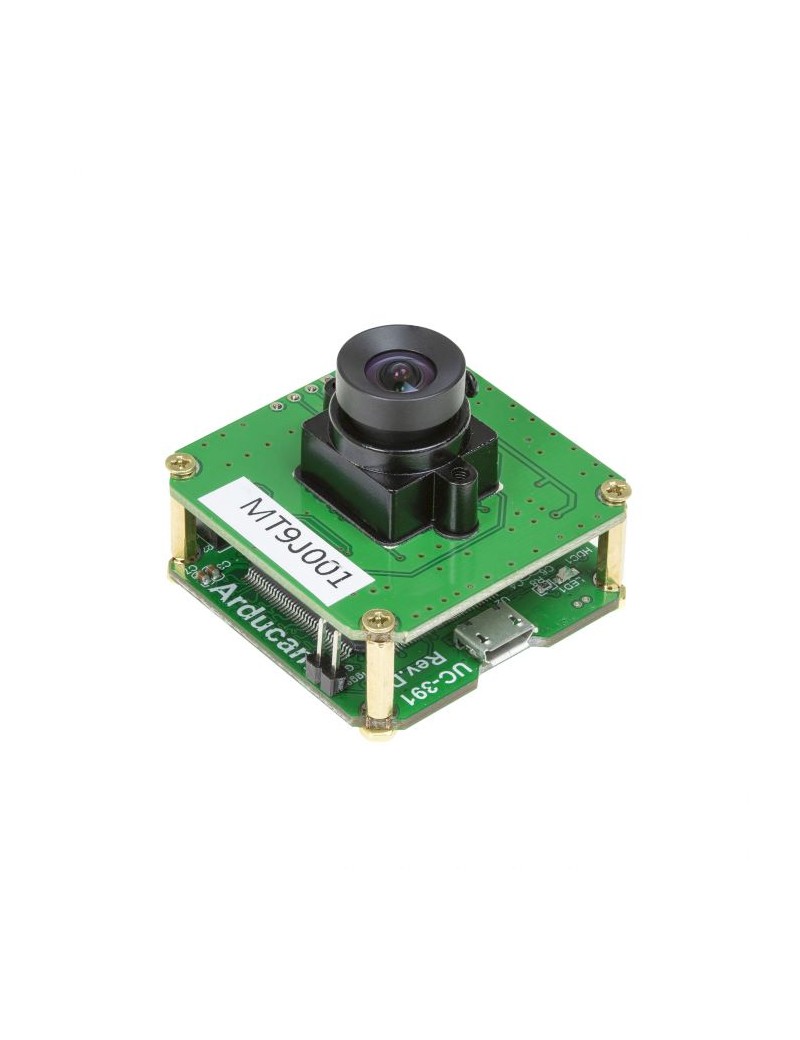

10MP USB Camera Evaluation Kit - CMOS MT9J001
To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9J001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. It incorporates the monochrome version of the MT9J001 sensor on board.
1/2.3" 10MP (3856 x 2764) CMOS monochrome rolling shutter with global reset release camera module MT9J001 .
World-Class 1.67μm Pixel Sensitivity, Produced on Aptina’s world-class 1.67μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.
- 1/2.3" optical format
- Monochrome Bayer pattern
- 10MP 3856 x 2764 MT9J001 sensor
- 1.67 x 1.67 um Pixel size
- 0.31V/lux-sec responsivity
- 65.2dB dynamic range
- single 3.3V power input
- Parallel camera interface
- M12 mount lens
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- 1pcs Arducam CMOS MT9J001 1/2.3-Inch 10MP Monochrome Camera Module
- 1 pcs Arducam USB2 Camera Shield
- 1 pcs USB2 Cable
